B3.3 - Cockpit



Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - cockpit

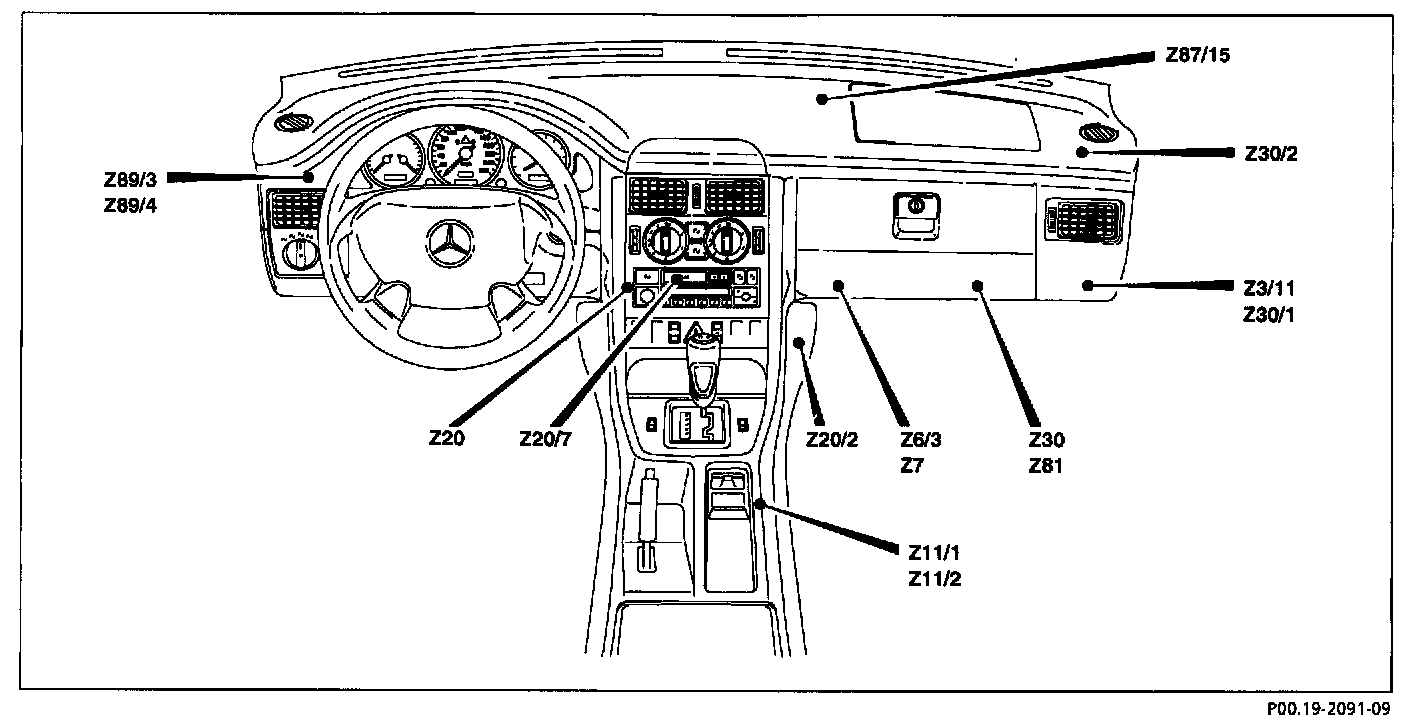

Arrangement





Assignment

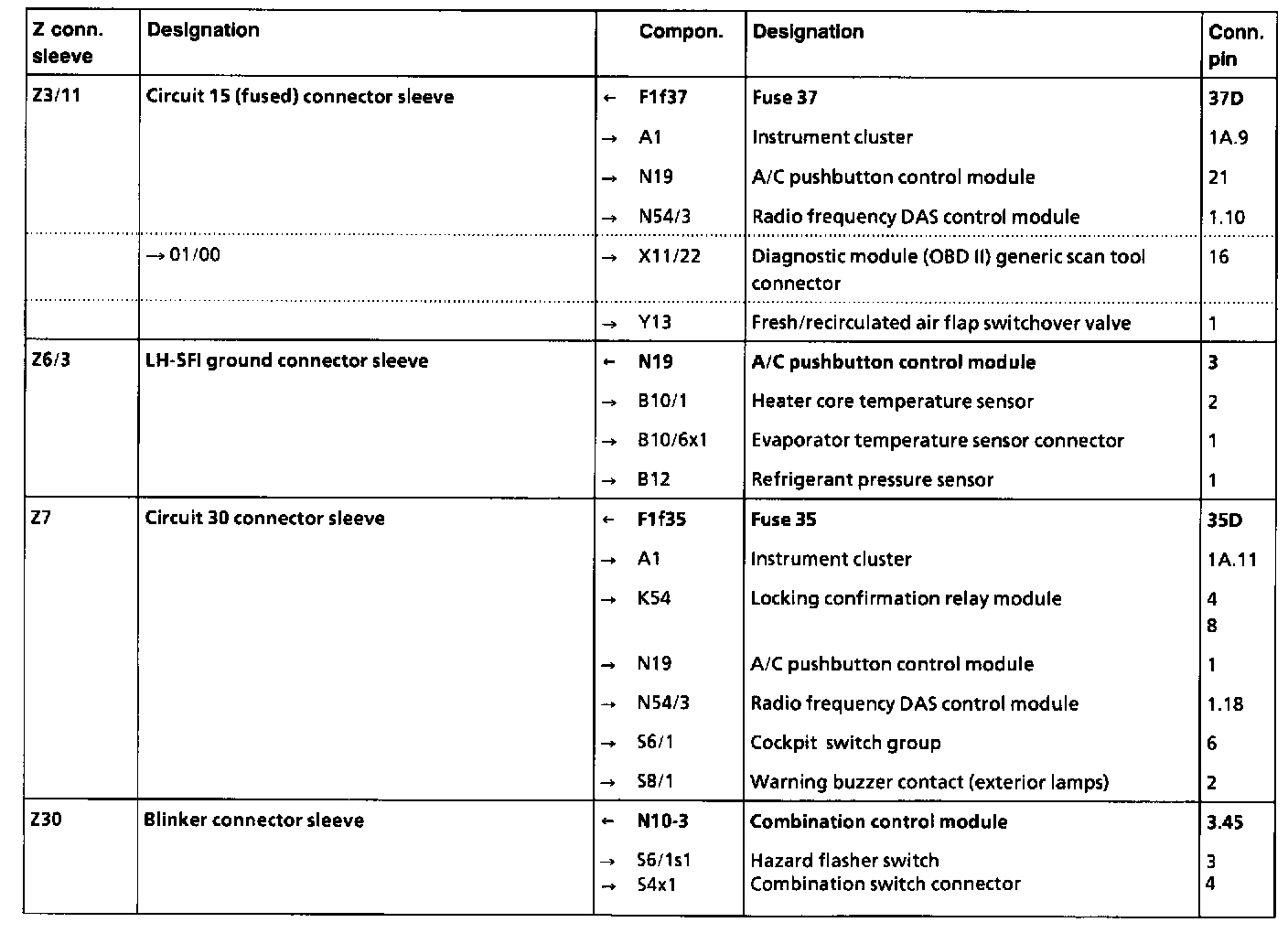

Z3/11 - Z30:

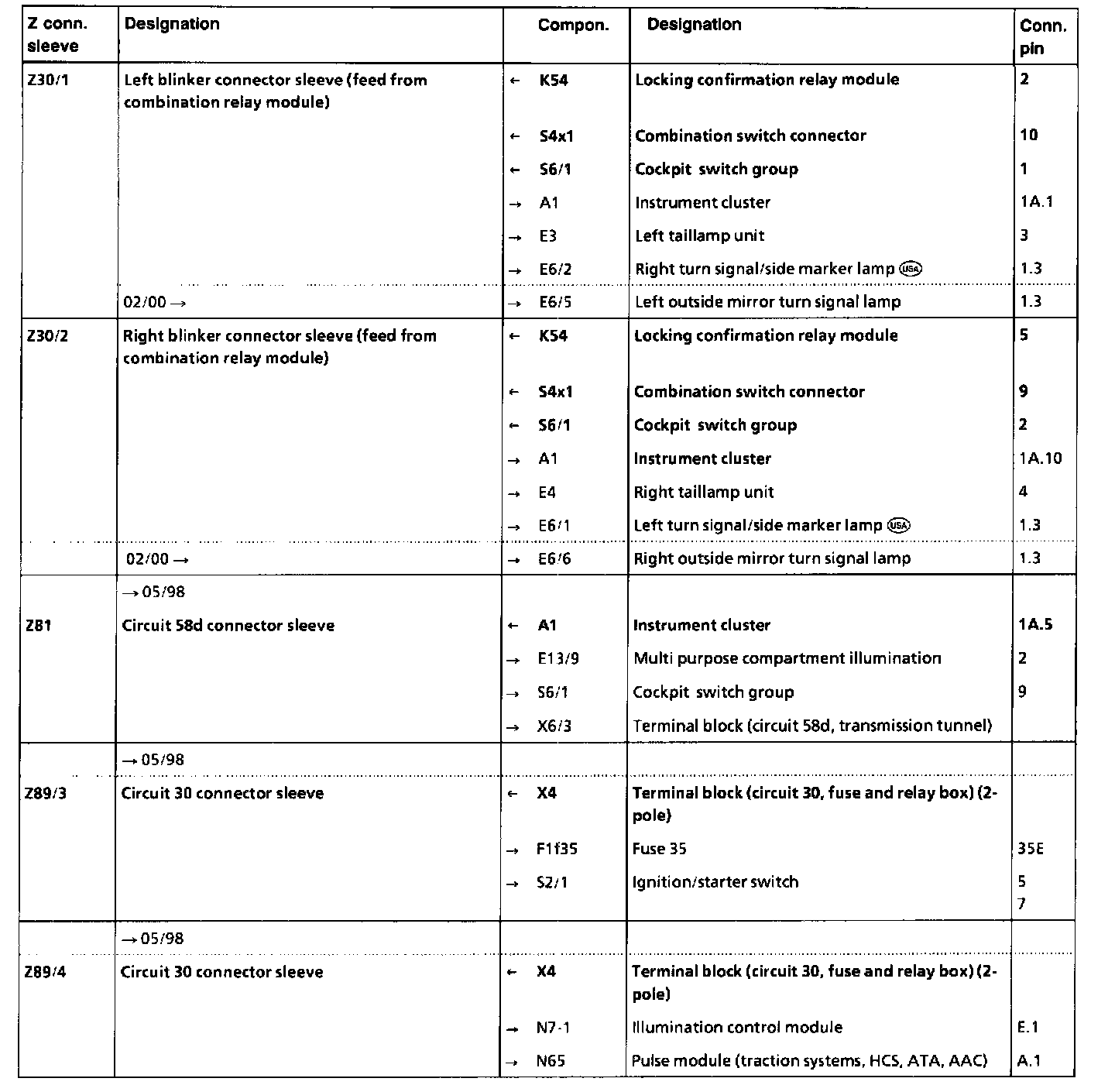

Z30/1 - Z89/4:
