Condenser HVAC: Locations

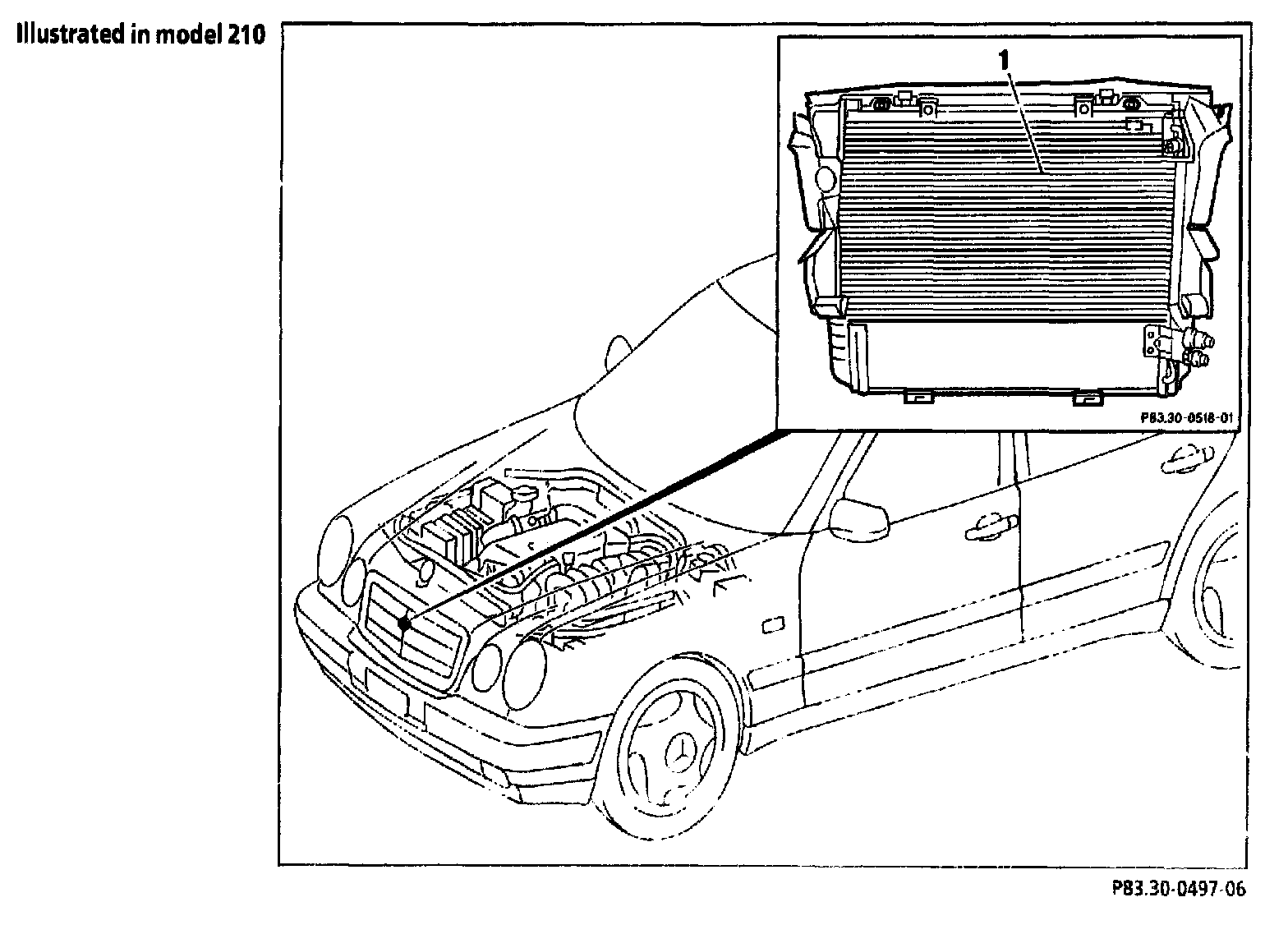

Illustrated In Model 210:
The condenser (1) is located behind the radiator grille directly in front of the radiator.
