Electrical Diagrams



Manual Transmission (716.6)

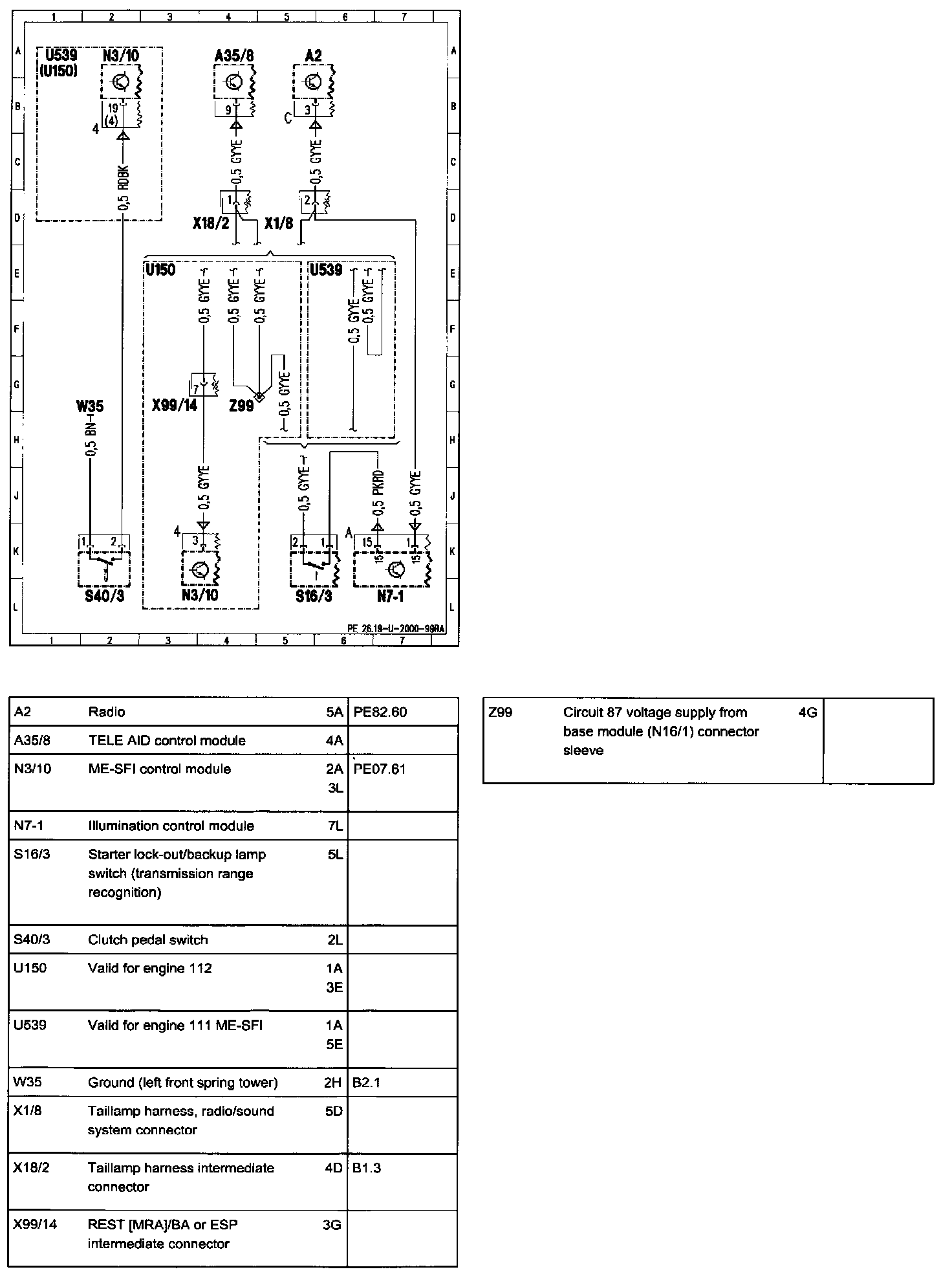

Wiring Diagram:






Connector Assignment:






Pin Information:
