Blower Motor Resistor: Locations

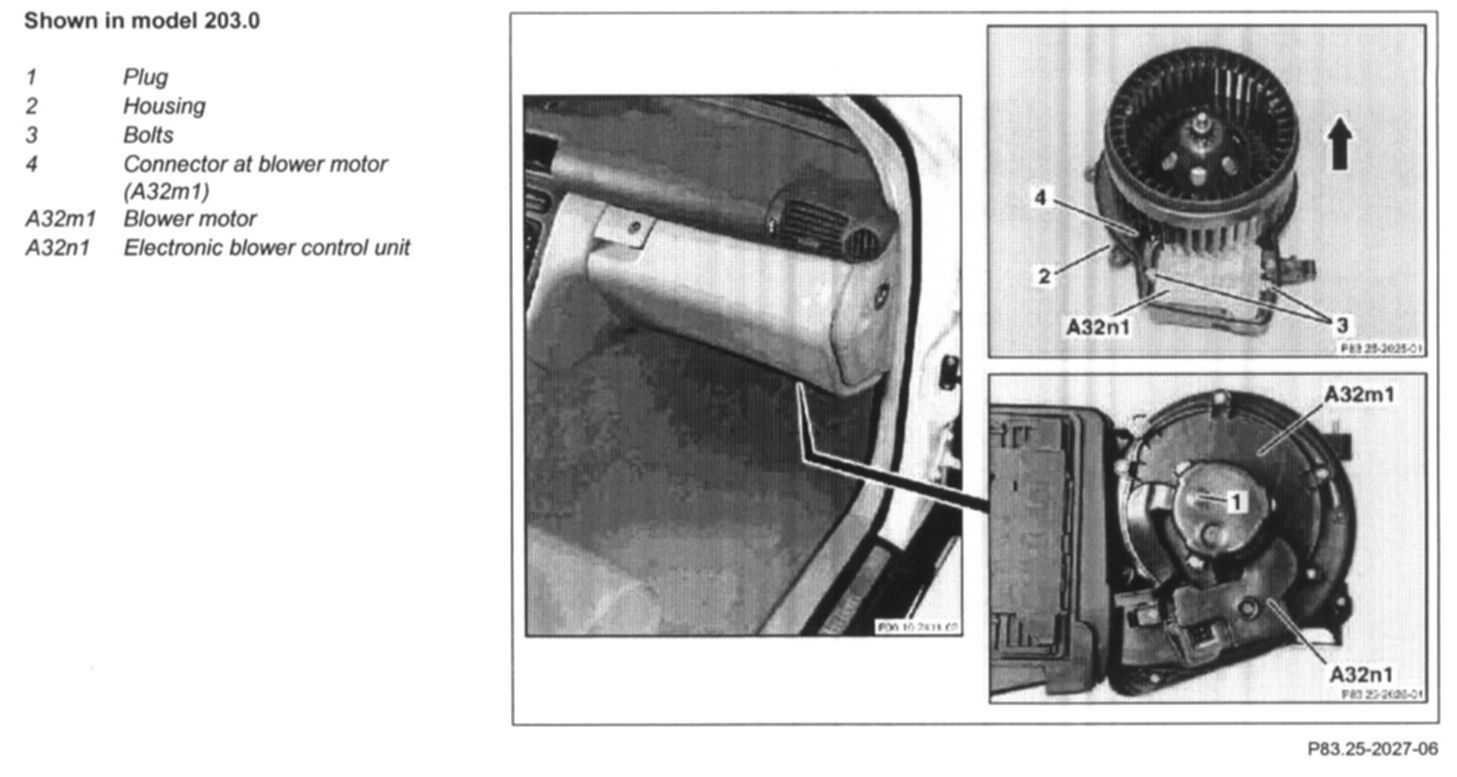

Shown on Model 203.0:
The electronic blower control unit (A32n1) is located below the glove compartment and is bolted to the blower (A32m1).
