Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2002
>>
C 32 AMG (203.065) V6-3.2L SC (112.961)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Locations
Heated Glass Element: Locations
200 Dpi:
300 Dpi:

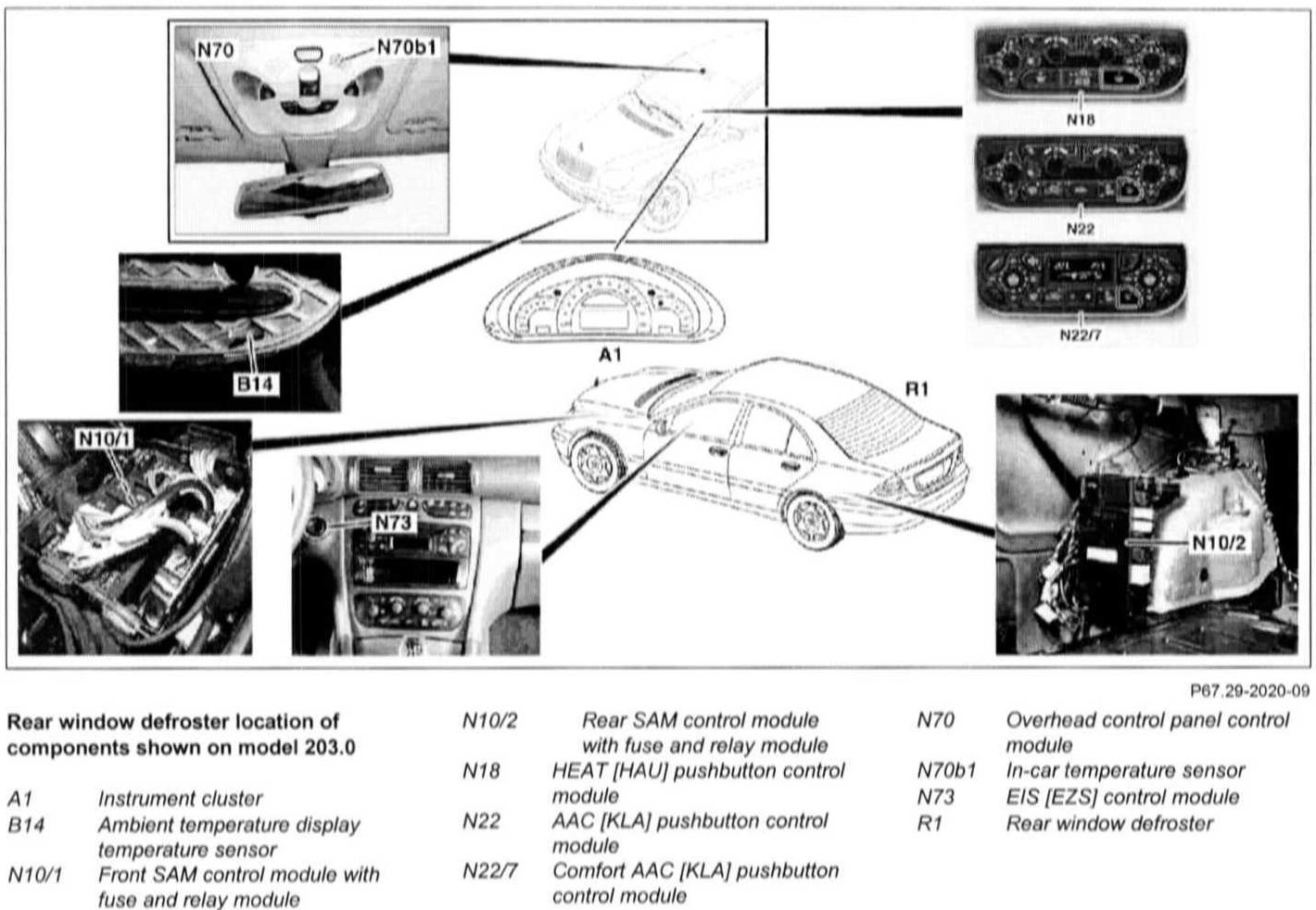

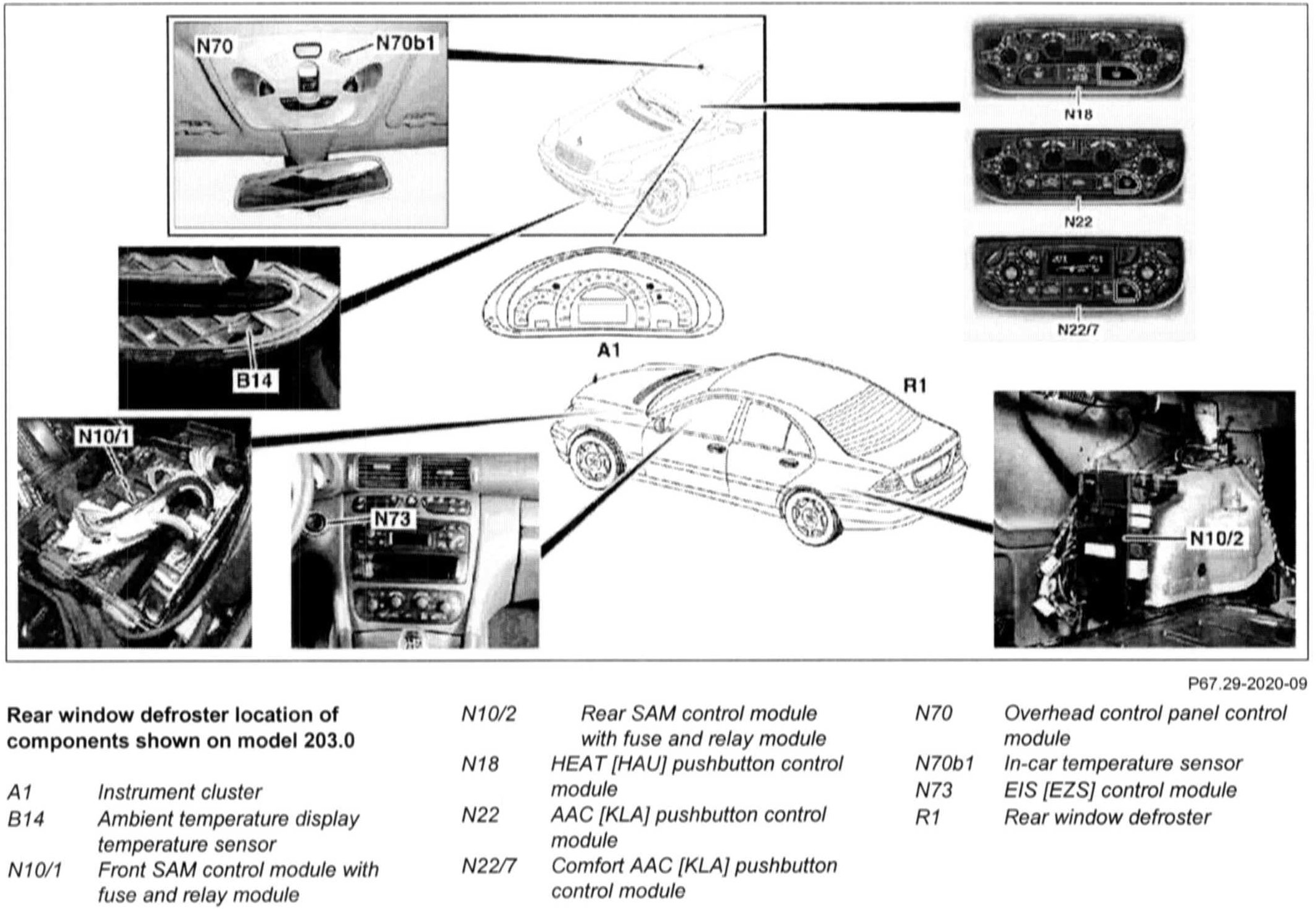

Rear Window Defroster Location Of Components Shown On Model 203.0
