AR68.40-P-0001KA Remove/Install Inside Rearview Mirror

AR68.40-P-0001KA Remove/Install Inside Rearview Mirror

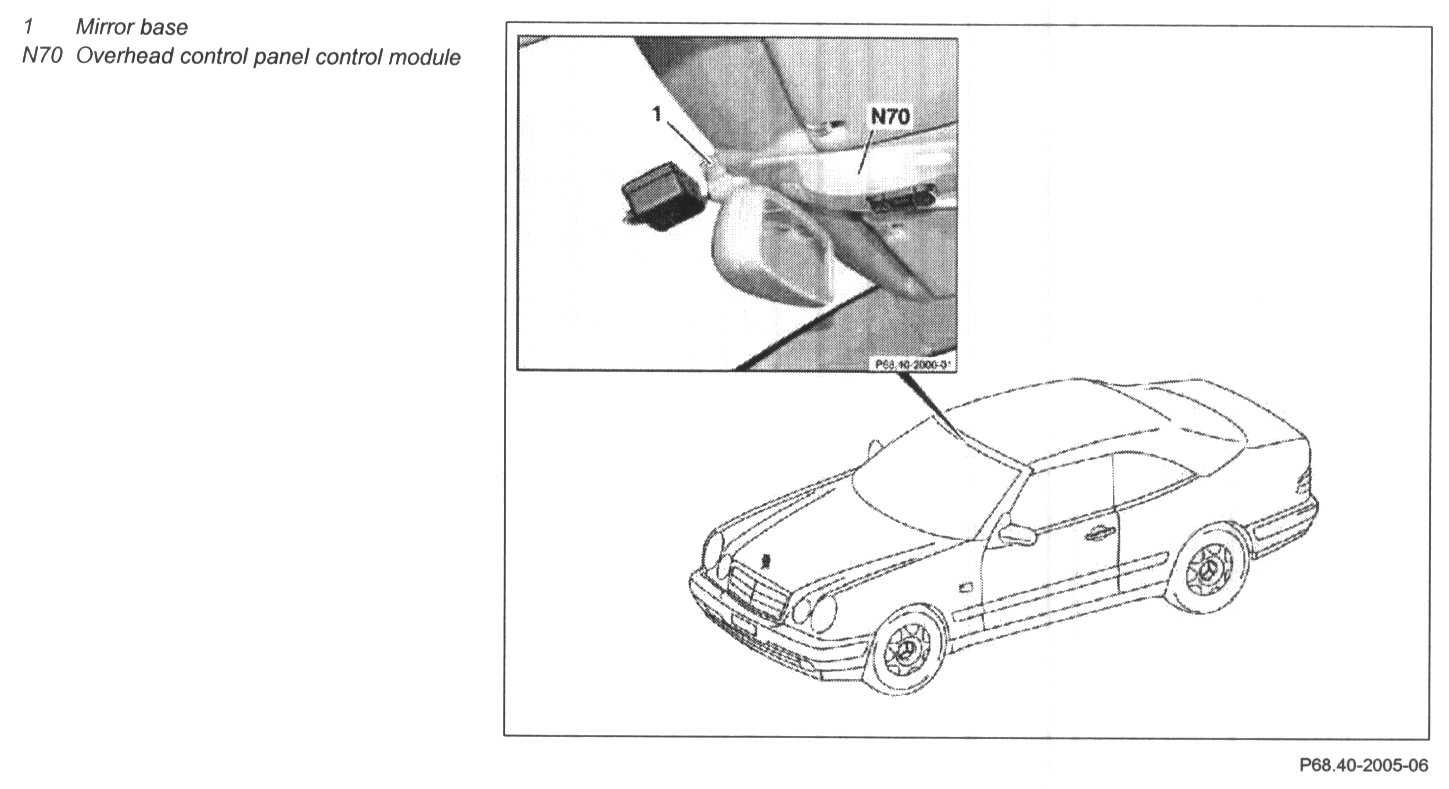

1 Remove overhead control panel control module (N70)
2 Turn mirror base (1) approx. 45 degrees

NOTE: Insert suitable tool into mirror base (1) from right

See "Commercially Available Tools" given below.

3 Remove inside rearview mirror

NOTE: The mounting plate for the inside rearview mirror is glued onto the windshield

4 Install in the reverse order

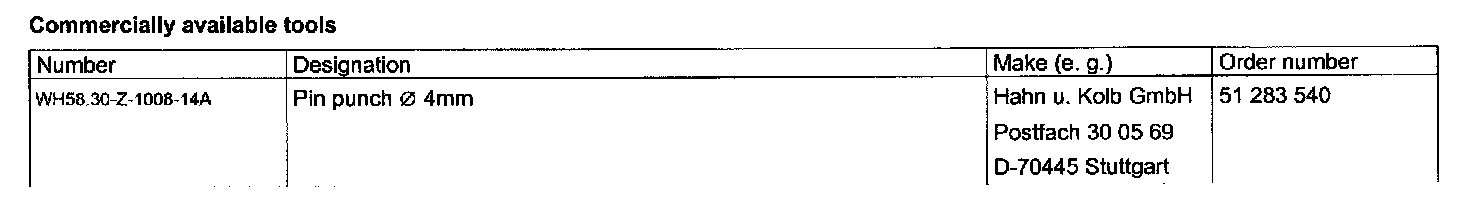

Commercially Available Tools

Commercially Available Tools:
