AR22.10-P-4350DV Remove/Install Left Engine Support



Removing, Installing Left Engine Support





1 Remove engine mounts
2 Take off poly V-belt

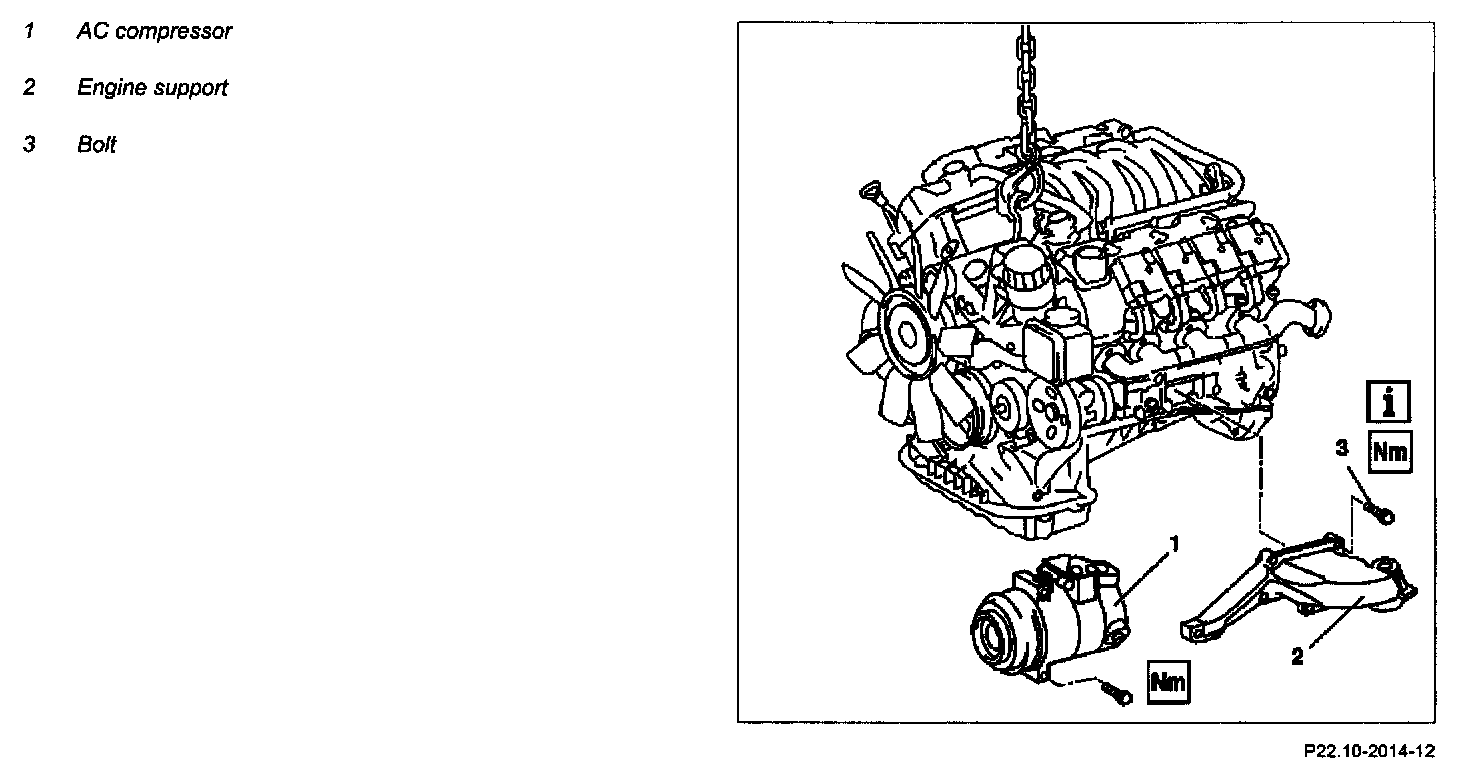

3 Unbolt AC compressor (1)

NOTE: Attach AC compressor at bottom in engine compartment with lines connected.

4 Unbolt engine support (2) at crankcase

NOTE: Bolts (3) must only be used once.

5 Remove engine support (2)
6 Install in the reverse order.
