Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2002
>>
S 600 (220.178) V12-5.8L (137.970)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

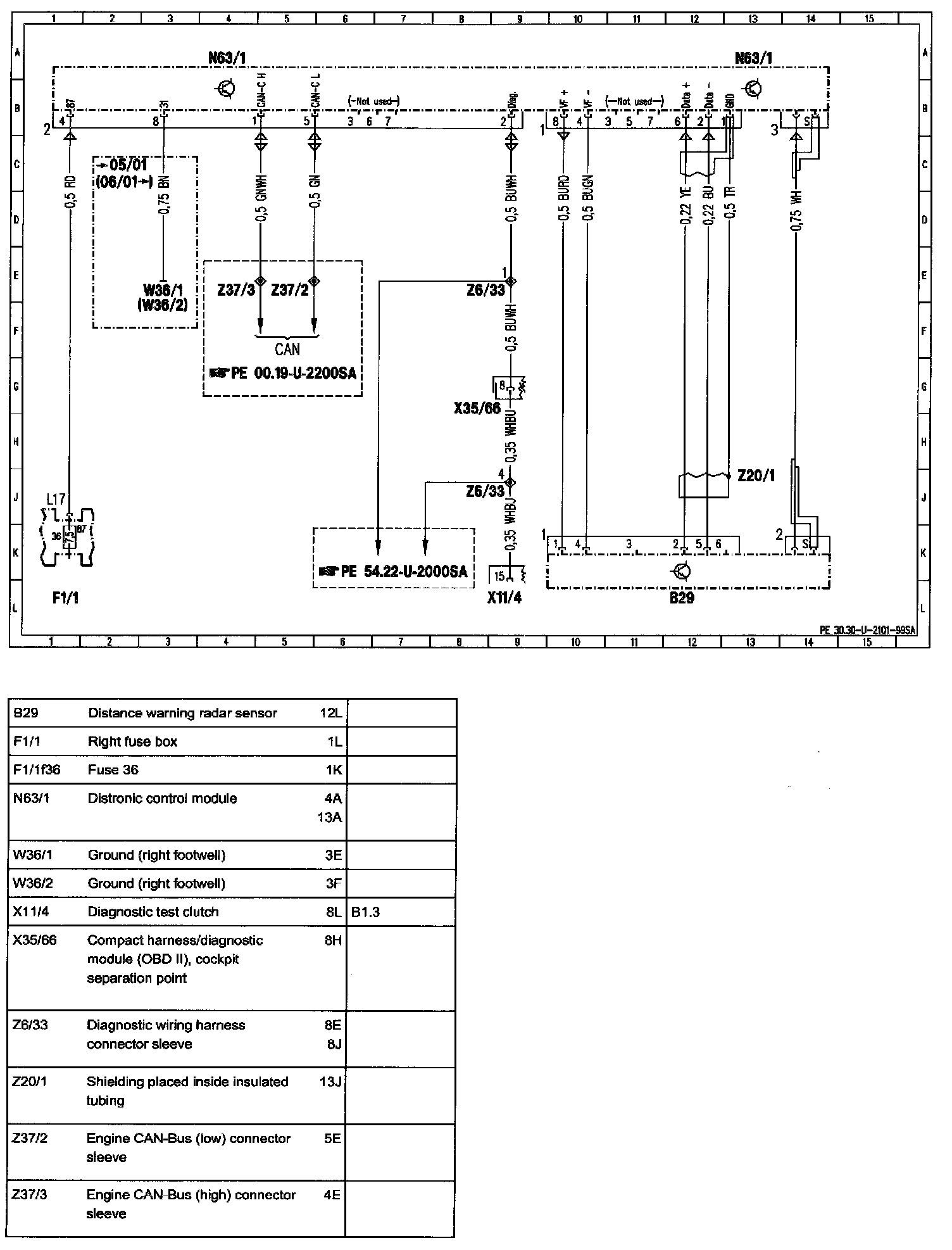

Distronic (DTR) PE30.30-U-2101SA
Distronic (DTR) Control Module - PE30.30-2101SA:
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Component Locations
