Recall - Active Body Control Hose Replacement
FILE:SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION - PARTS & ACCESSORIES BINDER
Campaign No. 2004070012
August 2004
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT:
MODELS 215.376/378, 220.176/178
MODEL YEARS 2001 - 2004
REPLACEMENT OF ABC PRESSURE SUPPLY VALVE UNIT HYDRAULIC LINE
This Recall Campaign has been initiated because DCAG has determined that on the affected vehicles (see VIN range below) the high pressure hydraulic distribution hose of the Active Body Control (ABC) system in Model Year 2001 - 2004 S-600 and CL-600 vehicles may deteriorate over time due to extensive exposure to humidity and high temperatures. This could result in a loss of ABC hydraulic fluid from the vehicle. Under some circumstances leaking hydraulic fluid may come in contact with hot engine components and lead to a possibility of fire.
Please review the Effective Serial Number Chart located below.
A sample copy of a letter which owners of the affected vehicles will receive is in this bulletin.
Prior to performing this Recall Campaign:
^ Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.
^ Please review the entire Recall Campaign bulletin.
Approximately 6240 vehicles are affected.
Effective Serial Number Range
Warning!
Risk of Bodily injury if skin or eyes are exposed to high pressure hydraulic fluid release.
^ Ensure hydraulic fluid is depressurized before performing procedure.
^ Please refer to WIS: AS00.00-Z0013-O1A for all applicable safety precautions and information.
Caution!
Refer to WIS AH32.50-P-0001-02A prior to working on hydraulic system.
Note:
Refer to WIS: AH32.50-P-0001-01N prior to working on ABC system.
1. Drive vehicle onto a lift, shut-off engine and remove ignition key from electronic ignition switch.
2. Open engine hood.
3. Remove center and rear lower engine covers (WIS: AR61.20-P-1105M).
4. Remove cover behind left front wheel (attached to wheel well cover).
5. Release ABC rest pressure by loosening hydraulic line (5) at pressure supply valve unit (52):
Warning!
Engine must be turned off for at least 5 minutes to allow ABC to enter rest mode.
Slowly loosen fitting on line to allow gradual release of hydraulic fluid.
Note:
Drain hydraulic fluid into proper receptacle.
6. Loosen bolt (1) and turn line clamp (2) 90°.
7. Remove bolts (3) then remove heat shield (4).
8. Disconnect hydraulic hose (5) from pressure supply valve unit (52) and from front/rear axle valve unit (6) then remove line (5).
9. Install new hydraulic hose in reverse order, torque line fittings to 50 Nm.
10. Fill ABC hydraulic reservoir to proper level and bleed system (WIS: AR32.50-P-0021N).
Note:
Do not perform step 6.1 in WIS AR32.50-P-0021N.
11. Inspect new hose for leaks.
12. Reassemble vehicle in reverse order.
Parts Information
Note:

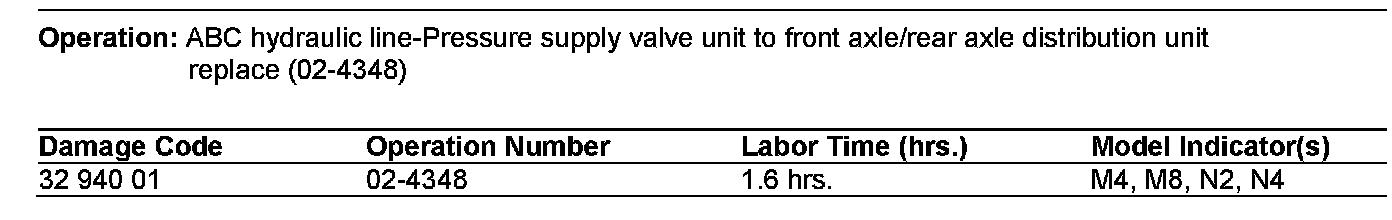

The following allowable Labor Operations should be used when submitting a warranty claim for this repair.
Warranty Information
NOTE REGARDING CUSTOMER REIMBURSEMENT
Reimbursement to customers for repairs performed prior to this recall:
If the customer already paid to have this recall condition repaired and provides adequate documentation to support their claim of a non-warranty repair of this item, they may be eligible to receive reimbursement.
Requests for reimbursement may include parts, labor, fees and taxes. Reimbursement may be limited to the amount the repair would have cost if completed by an authorized Mercedes-Benz dealer.
See Reimbursement to Customer for repairs performed prior to recall" in MBUSA's Warranty Policy and Procedures Manual.
Please note the claim submitted for customer reimbursement will not close the campaign (if still open).
If the customer is still in possession of the vehicle with an open campaign, please arrange to close the recall in the usual manner.
