Receiver Dryer: Service and Repair
Removing and installing receiver/drier
Component ID:

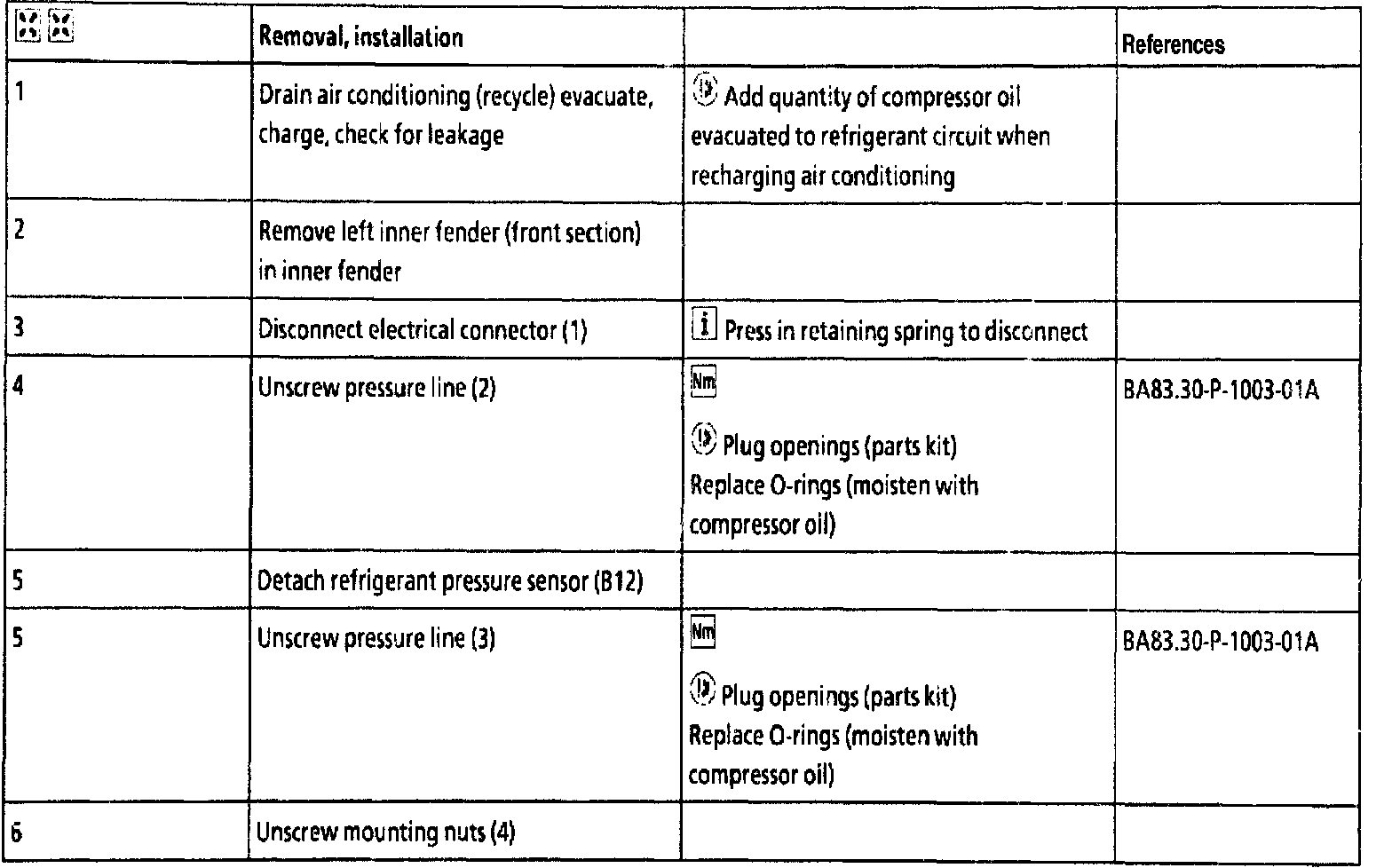

Remove, Install - Steps 1-6:
Remove, Install - Steps 7-10:
Torque Specs:

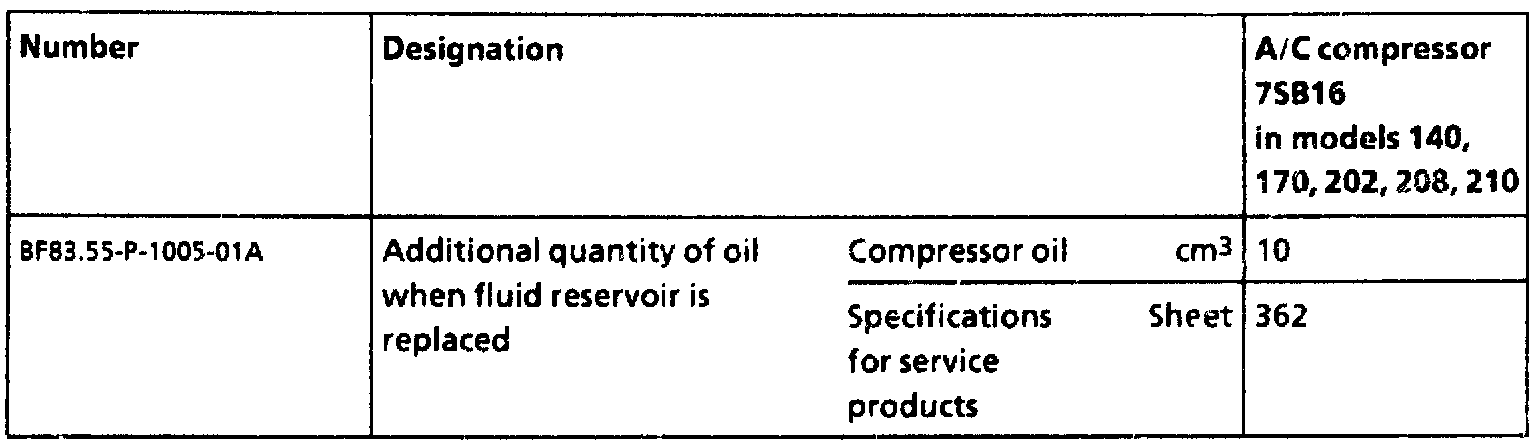

Capacity Specs:
