Cowl: Service and Repair
AR62.20-P-1221A Remove/Install Partition Wall On Upper
Firewall
Component Identification:

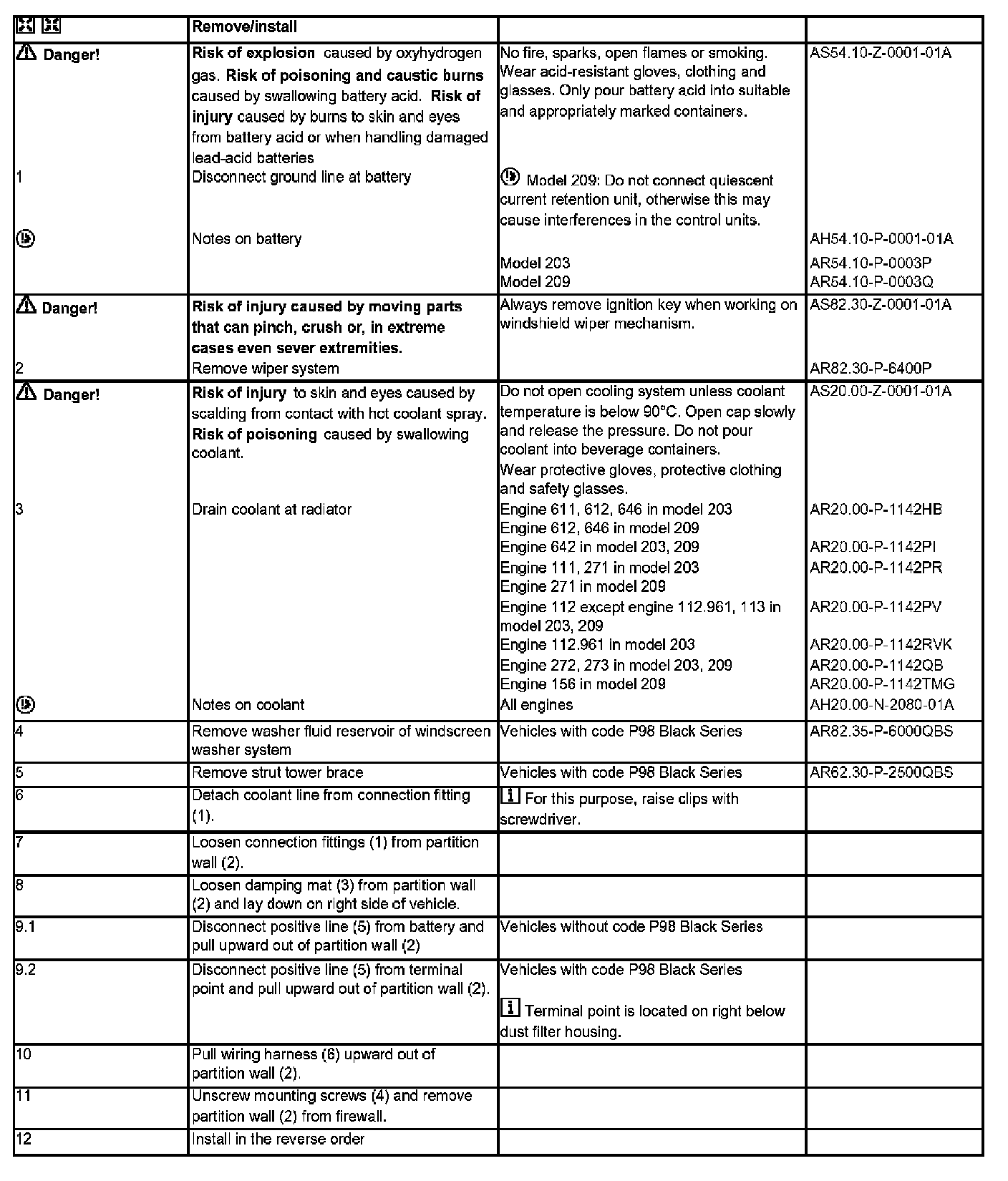

Steps 1 - 12:
