F. Installing the Handset and Cradle (V60)

F. Installing the handset and cradle (V60)





1. Open the lower storage compartment of the center console and remove the three screws from the upper compartment underside securing the Tele Aid button assembly false floor (Figure 9).





2. Lift out the false floor and disconnect the Tele Aid button connector and RJ-45 connector receptacle from the Tele Aid button assembly (Figure 10).

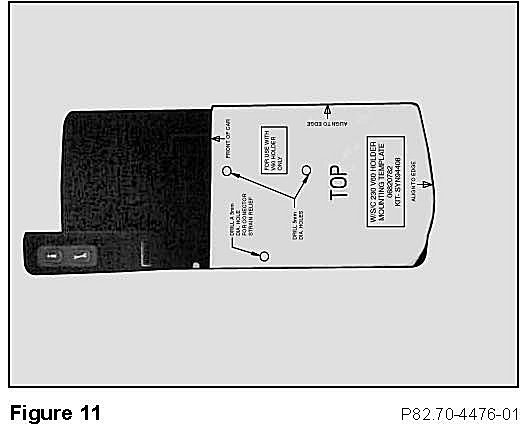

3. Place the V60 template atop of the false floor, making sure to align the template bottom and right edges with those of the false floor (Figure 11).

4. Drill two 5-mm holes where indicated on the template.

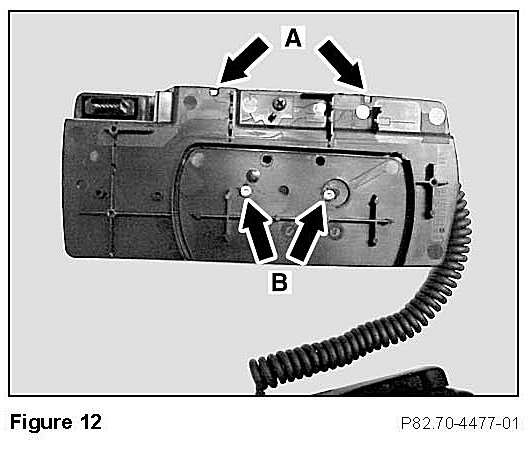

5. Drill out the two notches from the underside of the false floor using a 4.5-mm drill bit (A, Figure 12).

6. Mount the holder to the false floor, with two screws included in the kit, from the underside of the false floor (B, Figure 12).

7. Reconnect the Tele Aid button connector and reinstall the RJ-45 receptacle.

8. Feed the coaxial cable coming from the center console through the rear opening of the center console compartment and connect the coaxial cable to the coil-cord.

9. Connect the coil-cord RJ-45 to the center console RJ-45 receptacle.





10. Route the cables through the channels according to the schematic on the false floor underside (Figure 13).

11. Place the coil-cord through the notches drilled into the false floor (A, Figure 12).

12. Reinstall and secure the false floor with the three previously removed screws.





13. Install the battery insert plate marked "FOR USE WITH SLIM BATTERY" when using the slim battery (500 mAh) with the telephone (Figure 14).

Note:
The embossed text on the installed battery insert plate must face up as in Figure 14.





14. Install the battery insert plate marked "FOR USE WITH HIGH PERFORMANCE BATTERY" when using the high performance battery (800 mAh) with the telephone (Figure 15).

Note:
The embossed text on the installed battery insert plate must face up as in Figure 15.

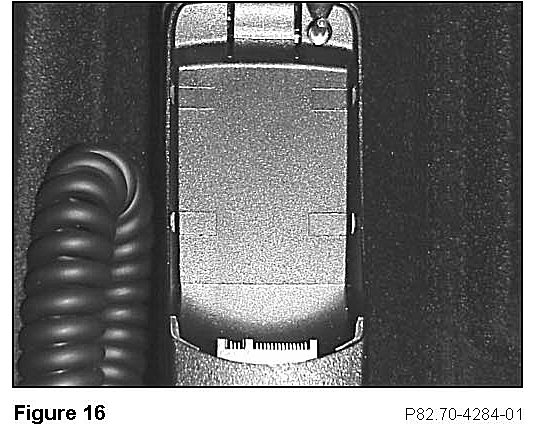

15. Remove the battery insert plate when using the extra capacity battery (1100 mAh) with the telephone (Figure 16).





16. Place the cradle in the holder and the telephone in the cradle (Figure 17).
