Wiper Arm: Service and Repair
AR82.30-P-6100P Remove/Install Wiper Arm

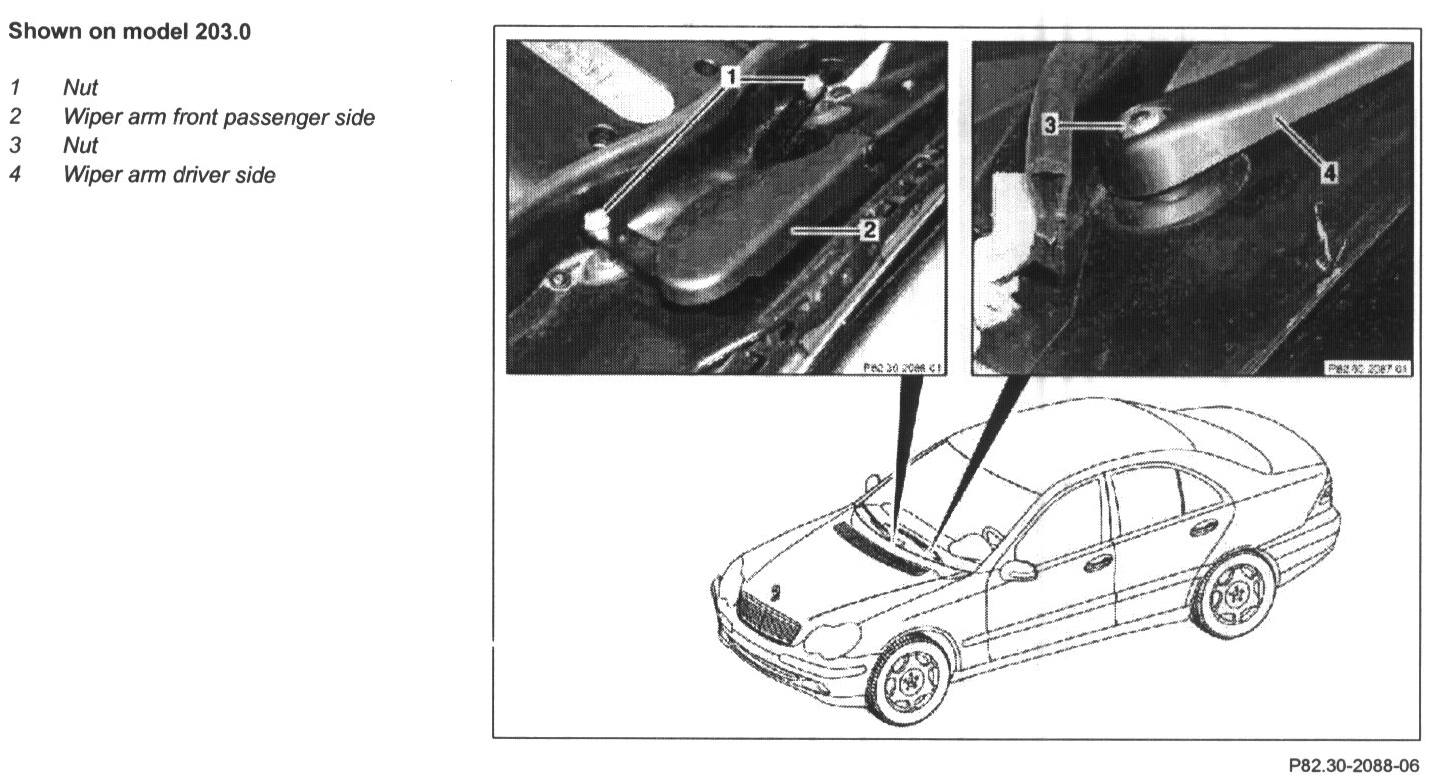

Shown On Model 203.0:
Shown On Model 203.0:
Removing
DANGER:
Injury Hazard Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities.
- Always remove ignition key when working on windshield wiper mechanism.
1 Move wiper arms to park position
2 Open engine hood
3 Unscrew nuts (1)
4 Remove wiper arm (2)
5 Unscrew nut (3)
6 Remove wiper arm (4)
Installing
7 Move wiper motor to parking position
8 Place wiper arm (4) onto wiper system bevel gear
CAUTION: Wiper blade must lie exactly on mark A in the windshield screen printing
9 Screw on nut (3)
Nut on Wiper Arm - 20 N.m
10 Place wiper arm (2) onto wiper system bevel gear
CAUTION: The wiper blade must be positioned directly on the marking B in the printed screen of the windshield.
11 Screw on nuts (1)
Nut on Wiper Arm - 20 N.m
12 Close engine hood
13 Carry out operational check
