Electrical Diagrams

Instrument Cluster (CLUS) PE54.30-U-2101FA

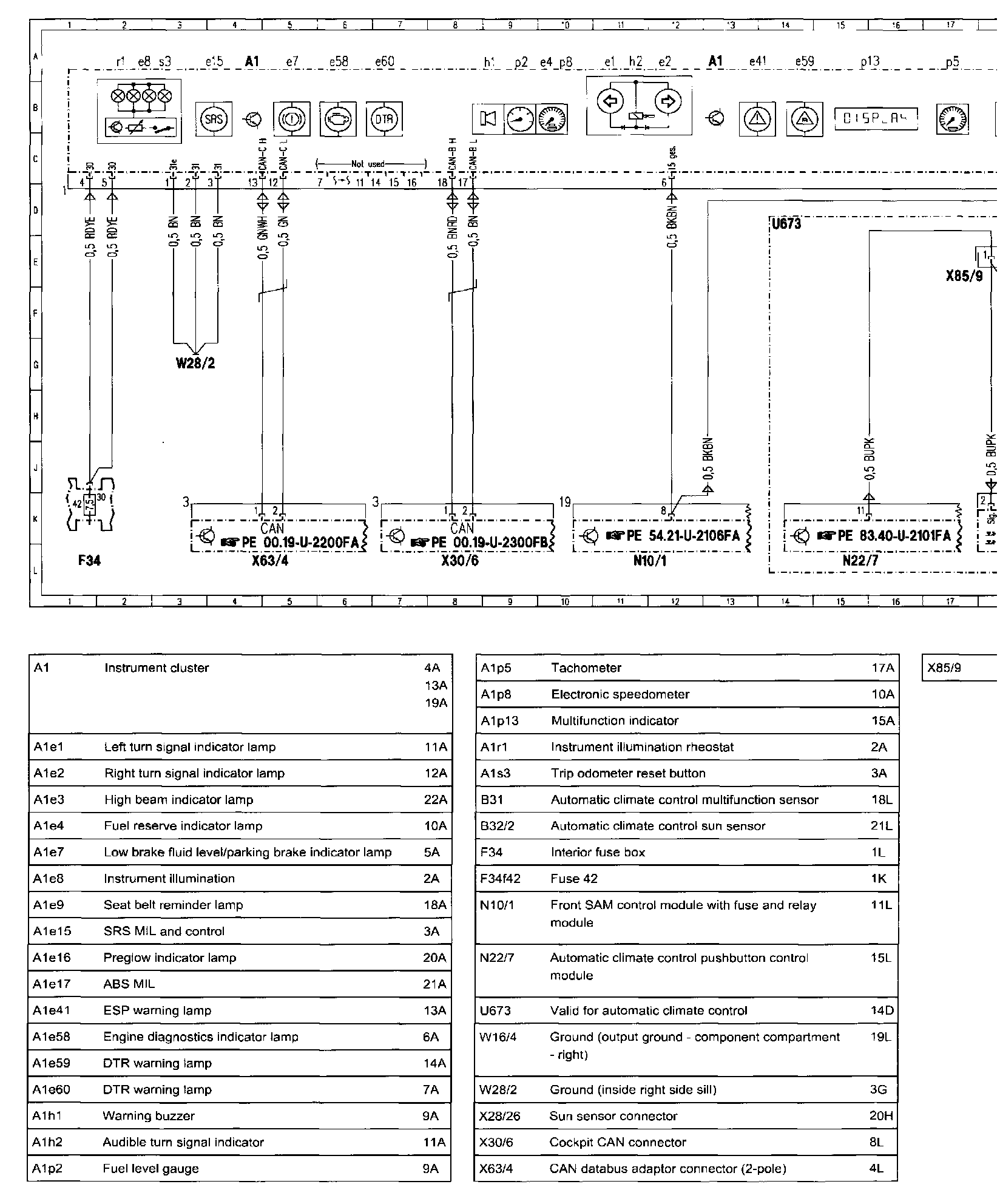

.�`OWiring Diagram PE54.30-U-2101FA:

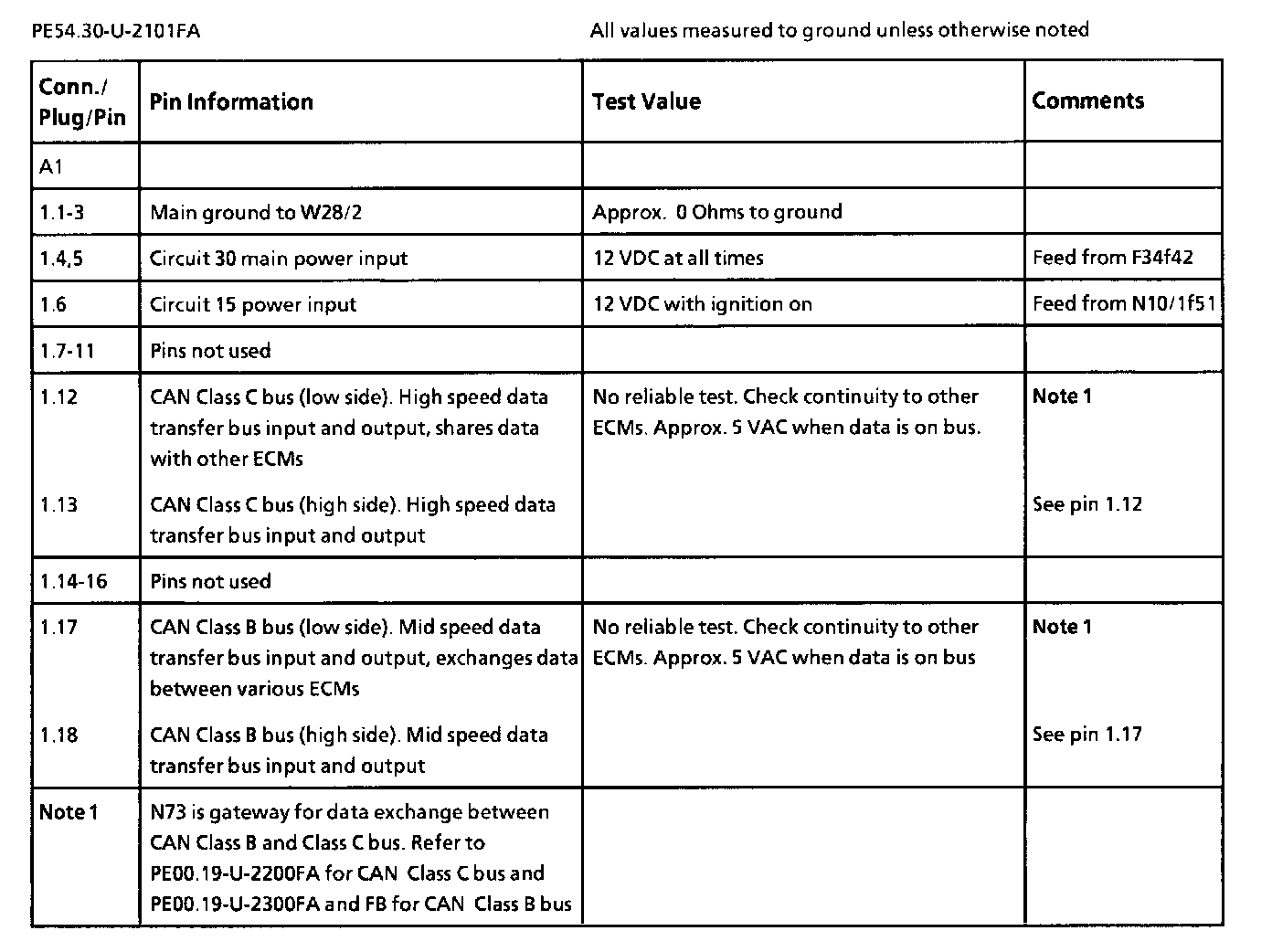

Pin Information:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
