Center Mounted Brake Lamp: Service and Repair

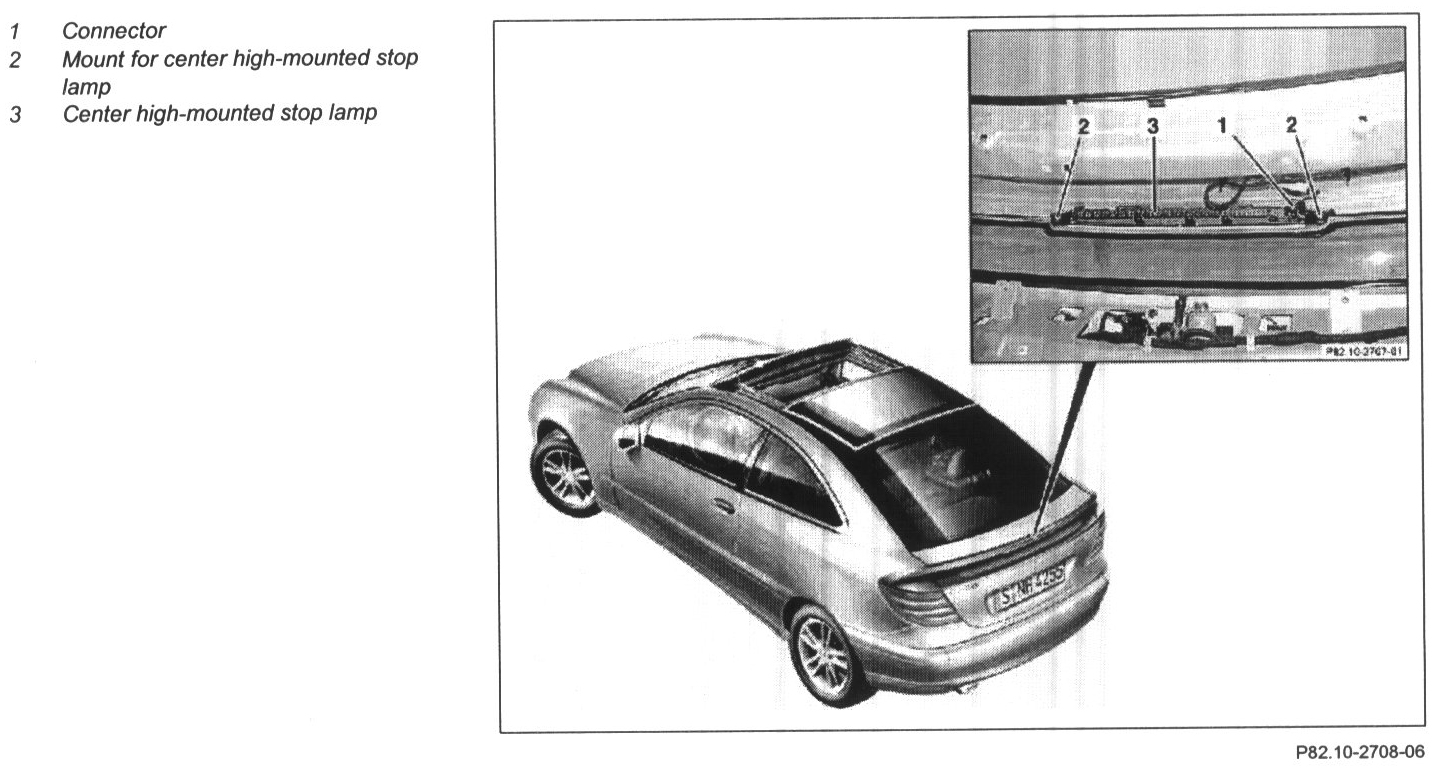

AR82.10-P-5375PB Remove/Install Center High-Mounted Stop Lamp







1 Remove, install upper tailgate paneling
2 Disconnect connector from center high-mounted stop lamp
3 Loosen mount for center high-mounted stop lamp (2)

NOTE: Unscrew screw from spreading rivet

4 Remove center high-mounted stop lamp (3)
5 Install in the reverse order
