Audio System - Insufficient Bass Range Adjustment

Date: March 28, 2003

Order No.: P-B-82.62/224a

Supersedes: P-B-82.62/224 dated Feb. 28, 2003

Group: 82

Revision: Clarification of Applicable Baumuster

SUBJECT:
Model 203.261/264/281/284 and 203.740/747 with Bose Sound System Sound Quality

If you receive customer reports in the above models of the Bose sound system having the below symptoms, please replace the original Bose amplifier with the new part numbers indicated.

- Insufficient adjustment of sound system in bass range in comparison to 203 sedan or other models.

- Volume considered less audible in bass range in comparison to 203 sedan or other models.

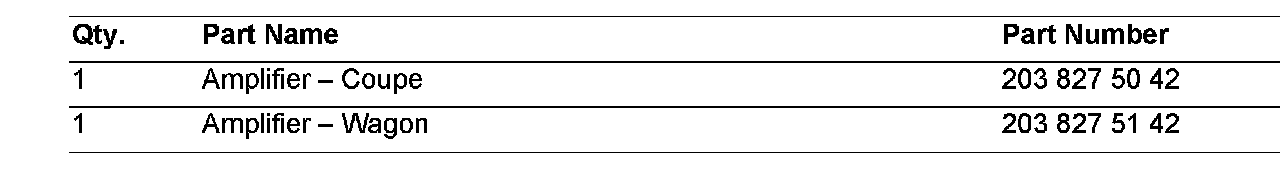

Parts Information





In Case of Warranty
