Wipers/Washers - Rear Washer Nozzle Misadjusted

Date: April 16, 2003

Order No.: P-B-82.35/237

Supersedes:

Group: 82

SUBJECT:
Model 203.261/264/281/284 as of VIN F372201

Spray Nozzle for Rear Window Washer Incorrectly Adjusted

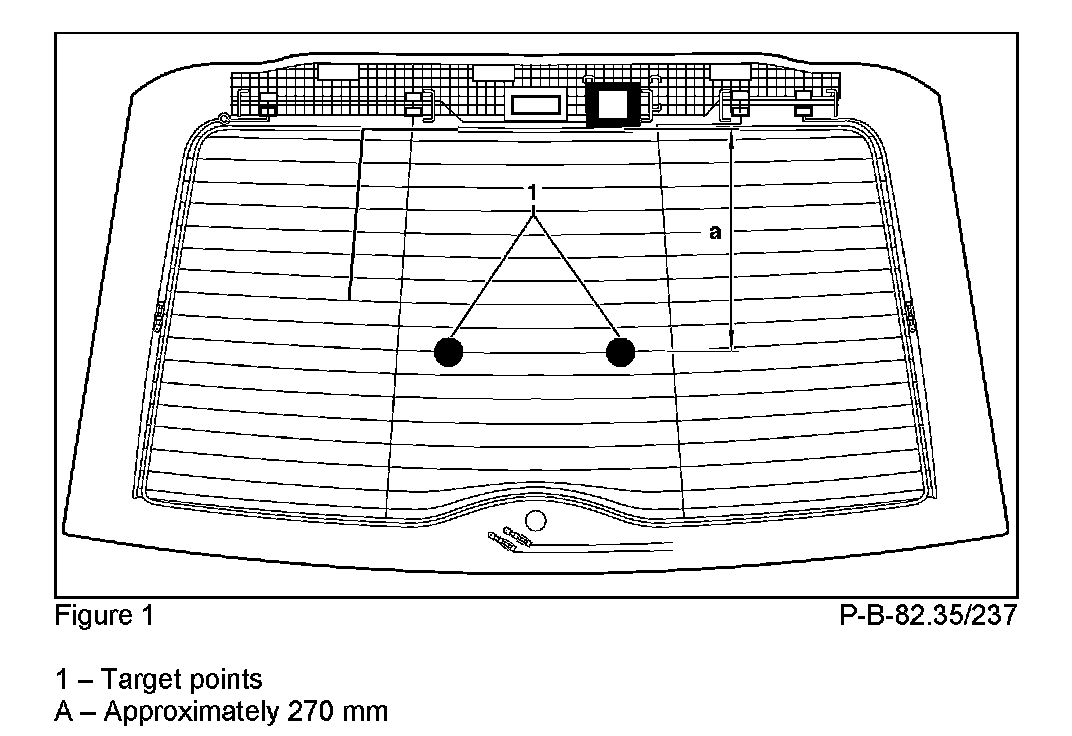

If you receive customer reports in the above model vehicles of the rear window washer being misadjusted, check the two-jet spray nozzle for correct adjustment and adjust if required (Figure 1). The two target points (Figure 1, 1) are approximately 270 mm (Figure 1, a) below the bottom edge of the center high mounted stop lamp (CHMSL).

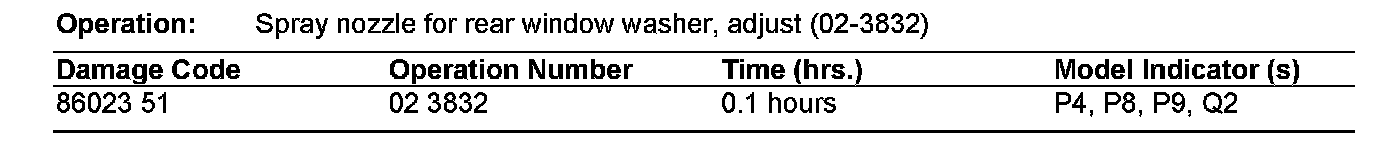

In Case of Warranty
