Wipers/Washers - Windshield Washer System Leaks

Date: January 28, 2003

Order No.: P-B-82.35/220

Supersedes:

Group: 82

SUBJECT:
Model 203.2 up to F267524

Windshield Washer System Leaks

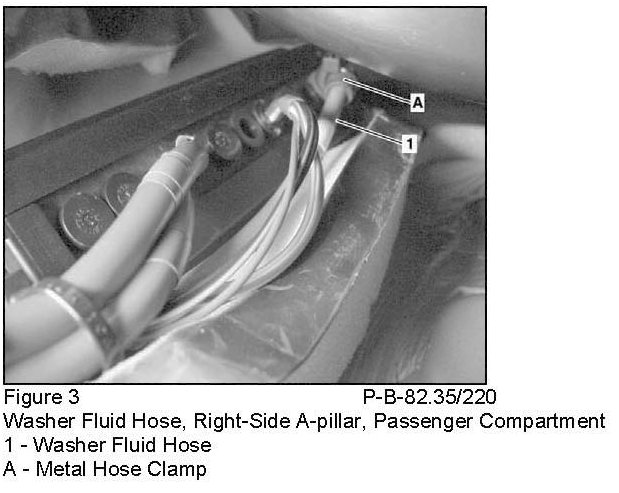

In Model 203.2 vehicles up to VIN F267524 if you receive complaints of the windshield washer hoses becoming detached due to increased pressure, eg. washer jets become frozen, to correct this from occurring perform the following steps (refer to Figures 1, 2, 3).

1. Ensure that the washer hose is properly installed/connected.

2. Install metal hose clamps at connection points of washer fluid hose.

3. Ensure Windshield Washer System contains sufficient anti-freeze protection during winter months.

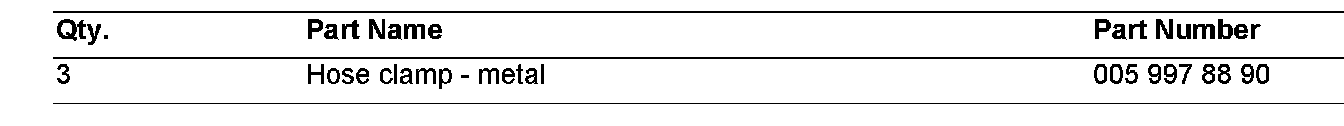

Parts Information

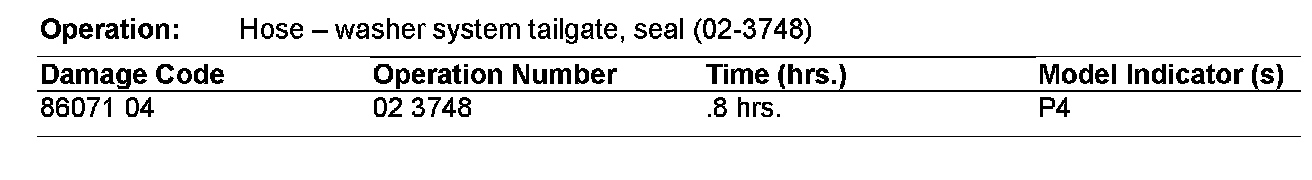

In Case of Warranty
