Automatic Heater (HEAT) Component Networking

GF83.25-P-0001-03P Automatic Heater (HEAT) Component Networking
MODEL 203.0 /2 /7 up to 23.4.04
- except CODE (580) Air conditioning (or Tempmatic for USA)
- except CODE (580) Automatic air conditioning
- except CODE (581) Automatic air conditioning






Temperature control, shown on vehicle up to 31.5.02
A1 Instrument cluster
B14 Outside temperature display temperature sensor
M2/5 Fresh air/air recirculation flaps actuator motor
M2/6 Left blend air flap actuator motor
M2/7 Right blend air flap actuator motor
N10/1 Front SAM control unit with fuse and relay module
N18 HEAT [HAU] control and operating unit
N70b1 In-car temperature sensor (up to 31.5.02)
CAN Controller area network bus class B (interior compartment) (CAN B)
CAN/AAC A/C bus

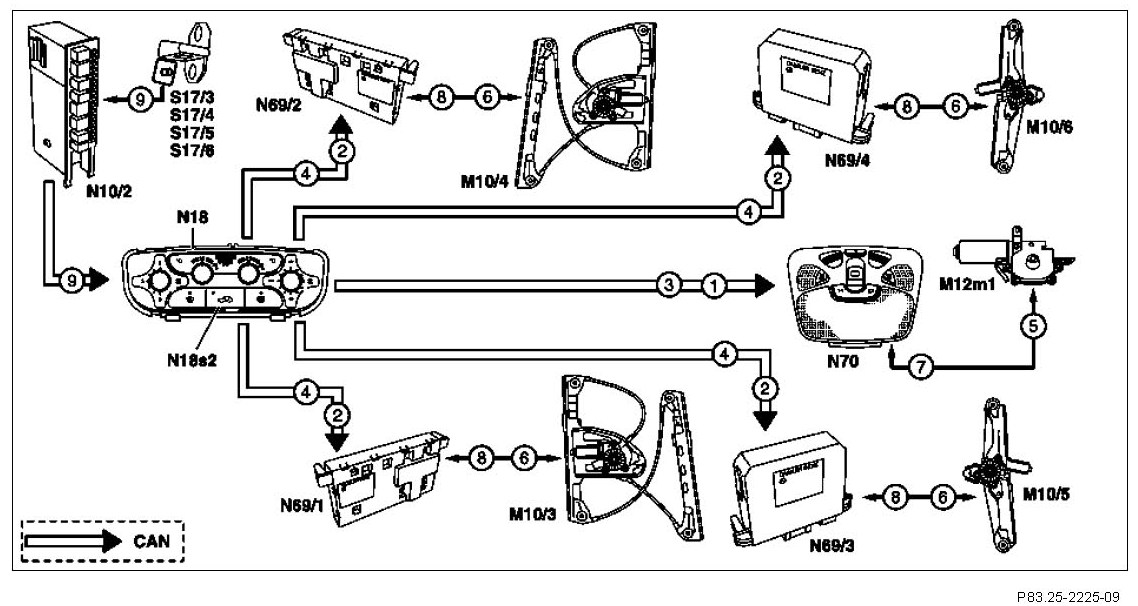

Convenience closing and opening, shown on model 203.0/2
1 Save and close tilting/sliding roof request position
2 Save and close window position request
3 Open tilting/sliding roof up to saved position request
4 Open window up to saved position request
5 Close/open tilting/sliding roof
6 Close/open window
7 Tilting/sliding roof (SHD) position
8 Window position
9 Door status
M10/3 Left front power window motor
M10/4 Right front power window motor
M10/5 Left rear power window motor
(for models 203.0/2)
M10/6 Right rear power window motor (for models 203.0/2)
M12m1 Roof motor (with code (414) Power glass tilting/sliding roof or with model 203.7 with code (413) Panoramic sliding roof)
N10/2 Rear SAM control unit with fuse and relay module
N18 HEAT [HAU] control and operating unit
N18s2 Air recirculation switch
N69/1 Door control unit front left
N69/2 Door control unit front right
N69/3 Left rear door control unit
(for models 203.0/2)
N69/4 Right rear door control unit (for models 203.0/2)
N70 Overhead control panel control unit
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door contact switch (on model 203.0/2)
S17/6 Right rear door contact switch (on model 203.0/2)
CAN Controller area network bus class B (interior compartment) (CAN B)
