GF07.61-P-0001-11H ME-SFI Fuel Injection and Ignition System Engine Electronics Fuel Supply General Information

GF07.61-P-0001-11H ME-SFI Fuel Injection And Ignition System Engine Electronics Fuel Supply General Information

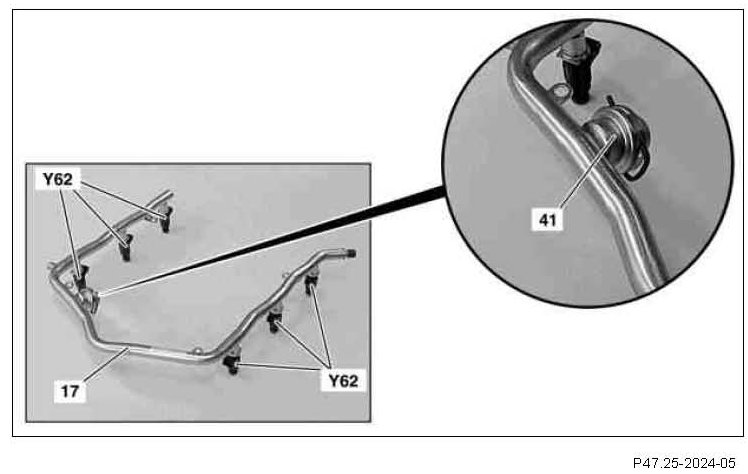

17 Fuel rail
41 Fuel pressure damper
Y62 Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS])

The fuel system of the supercharged engine M112K is with exception of the fuel pressure damper (41) identical to the fuel system of the naturally aspirated engine M112.

This fuel pressure damper is located at the fuel distribution tube (17) and damps pressure surges in the fuel. This prevents pulsation noises.
