Lighting - Front Turn Signal(s) are Inoperative
Date: April 8, 2008Order No.: P-B-82.10/195f
Supercedes: P-B-82.10/195e dated March 15, 2006
Group: 82
Revision History
Revision Date Purpose
f 4/8/08 VIN Range and Applicable Models Updated
e 3/15/06 Warranty Information Updated
d 2/16/06 Applicable VIN Range Added
c 7/1/03 Warranty Information Updated
b 8/2/02 Warranty Information Included
a 6/12/02 Part Number Included
- 5/16/02 Initial Issue
SUBJECT:
Model 203.052/054/056/061/064/065/076/081/084/087/092/261/264/281/284/
740/747/764
Up to VIN A339771, F261050 and R053444
Front Turn Signal Inoperative
If you receive customer reports in the above model vehicles of the front turn signal not working, this may be due to a contact problem between the turn signal bulb socket and the headlamp housing. In this case, perform the following repair only on the affected side of the vehicle.
1. Remove E1e2 (left turn signal) or E2e2 (right turn signal) from the headlamp housing. Refer to WIS document no. AR82.10-P-1201P, R&R Bulbs Headlamp Unit.
2. Check outer contacts of the bulb socket for damage. If damage is visible, repair as follows.
3. Disconnect 5-pin connector at headlamp housing.
^ Plug from headlamp assembly
1. Turn signal wire located in chamber 1 of existing headlamp housing connector (2)
2. Headlamp housing connector
3. Connector locking tab
4. Open pin lock (Figure 1, 3) on connector (Figure 1, 2) and "un-pin" turn signal wire (Figure 1, 1) from connector. Left side, pin 1 is white/black. Right side, pin 1 is green/black. Refer to WIS document no. AR00.19-P-0120-02B, Removing Contacts from Sensor Connector.
5. Plug empty chamber with a rubber plug, refer to parts information section for part number.
^ Turn signal repair set
1. Turn signal wire from headlamp
4. Repair set connector
5. Turn signal bulb socket connector
6. Turn signal bulb socket ground wire
6. Remove contact housing (Figure 2, 4) from connector (Figure 2, 5) and insert "un-pinned" turn signal wire removed in step 4 (Figure 2, 1) into chamber 2 of contact housing (Figure 2, 4) (from repair set). Prior to assembly, check individual gaskets for damage.
7. Reconnect contact housing (Figure 2, 4) with connector (Figure 2, 5). Housing must audibly click into place.

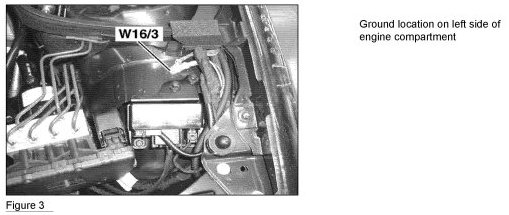

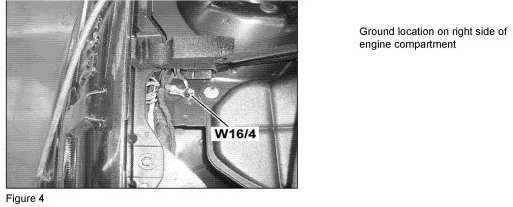

8. Connect cable eyelet (Figure 2, 6) of the repair set with the component compartment ground (Figure 3, W16/3) if repairing the left turn signal or the component compartment ground (Figure 4, W16/4) if repairing the right turn signal.
9. Install E1e2 (left turn signal) or E2e2 (right turn signal) into the headlamp housing.
10. Re-connect connector (Figure 1, 2) with headlamp housing.
11. Attach repair harness set along the original harness with two cable ties in such a way that the harness will not be abraded and /or cause any noise.
Parts Information
Note:

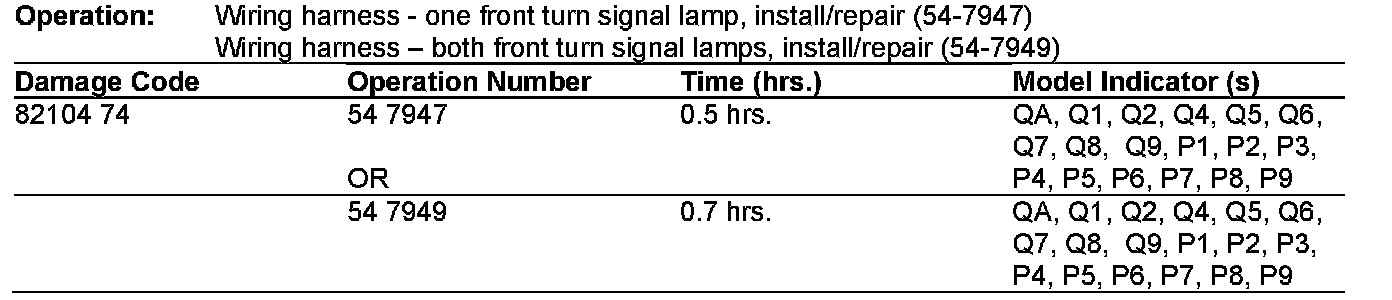

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on April 8, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.
In Case of Warranty, use the table.
