Campaign - Tail Lamp Bulbs Inoperative
Date: May 23, 2008Order No.: P-B-82.10/217a
Supersedes: P-B-82.10/217 dated January 21, 2003
Group: 82
Revision History
Revision Date Purpose
a 5/23/08 Damage Code Revised
- 1/21/03 Initial issue
SUBJECT:
Model 203.061/064/065/084/261/264/281/284/740/747
Model 209.365/375/376
Tail Lamp Bulbs Do Not Function
If you receive customer reports in the above model vehicles of the parking/tail light bulbs in the tail lamps burning out earlier than normally expected bulb service life, perform the following correction.
Install an adapter cable with increased resistance in the tail lamp wiring harness at the tail lamp to reduce the voltage by approximately 1 volt. The adapter cable is identical for the left and right sides.
A modified wiring harness with integrated resistors will be installed in production as of approximately December 2002.
Parts Information
Note:

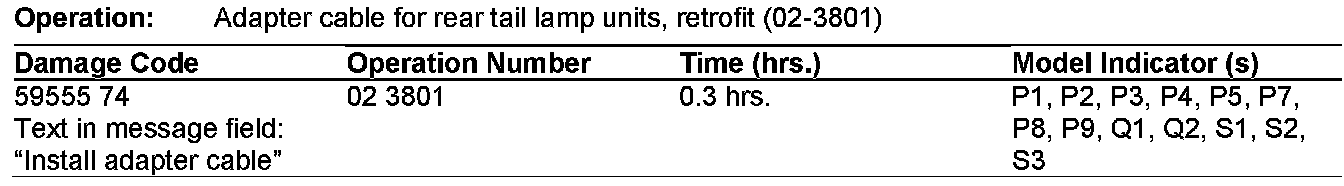

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on May 23, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.
In Case of Warranty, use the table.
