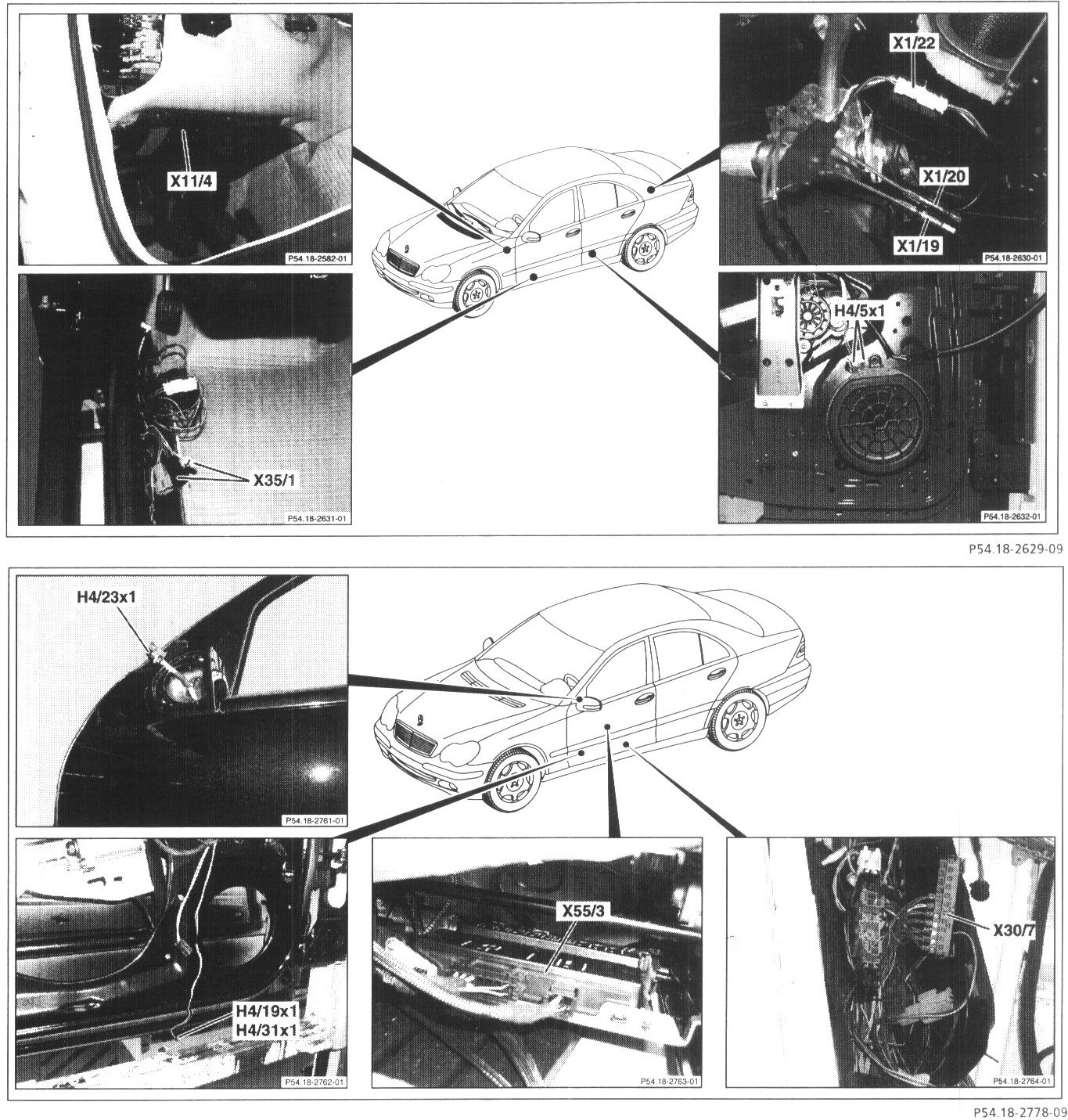

B1.4 - Interior Compartment (Left)
B1.4 - Interior Compartment (Left)

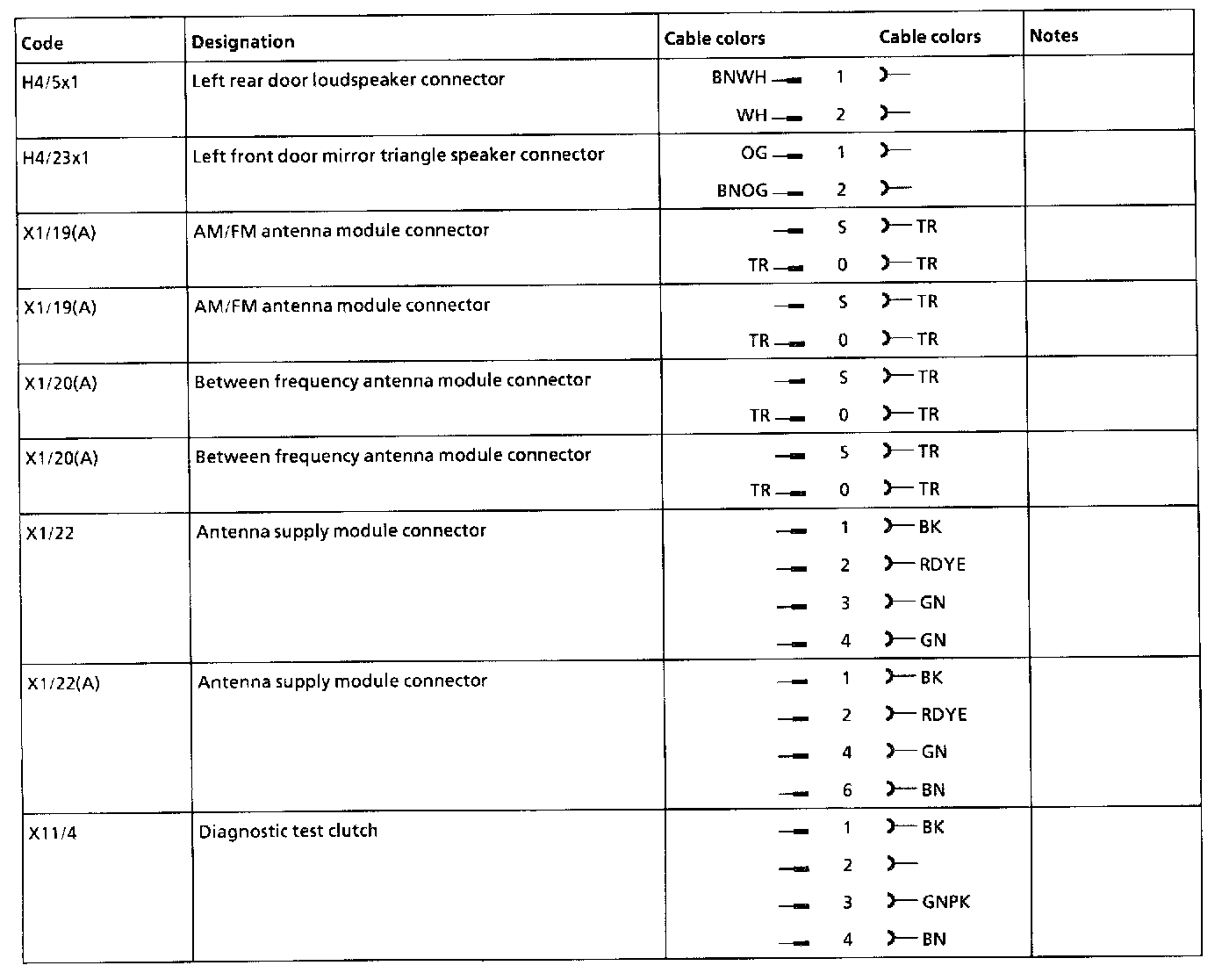

H4/5x1 - X11/4:

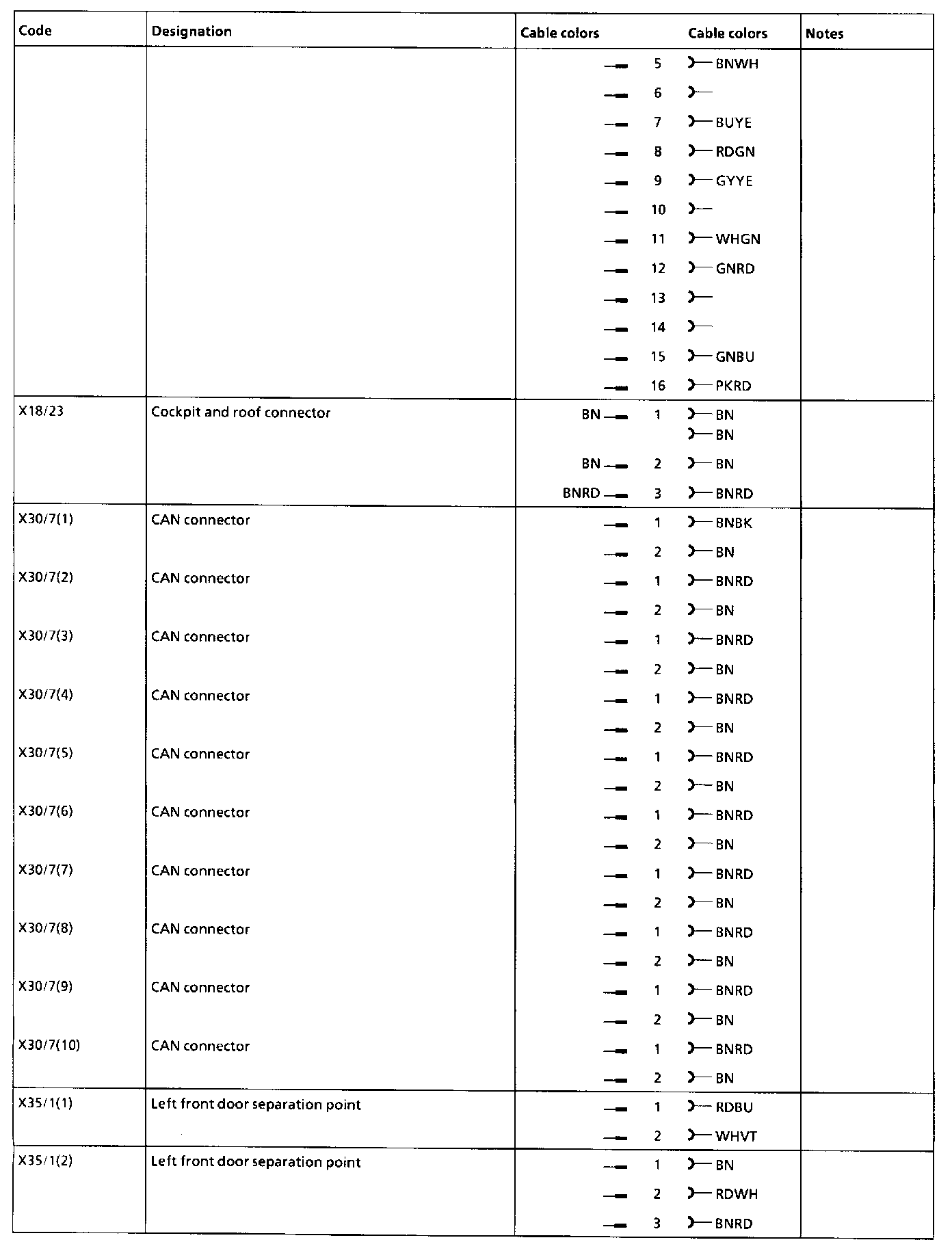

X18/23 - X35/1(2):

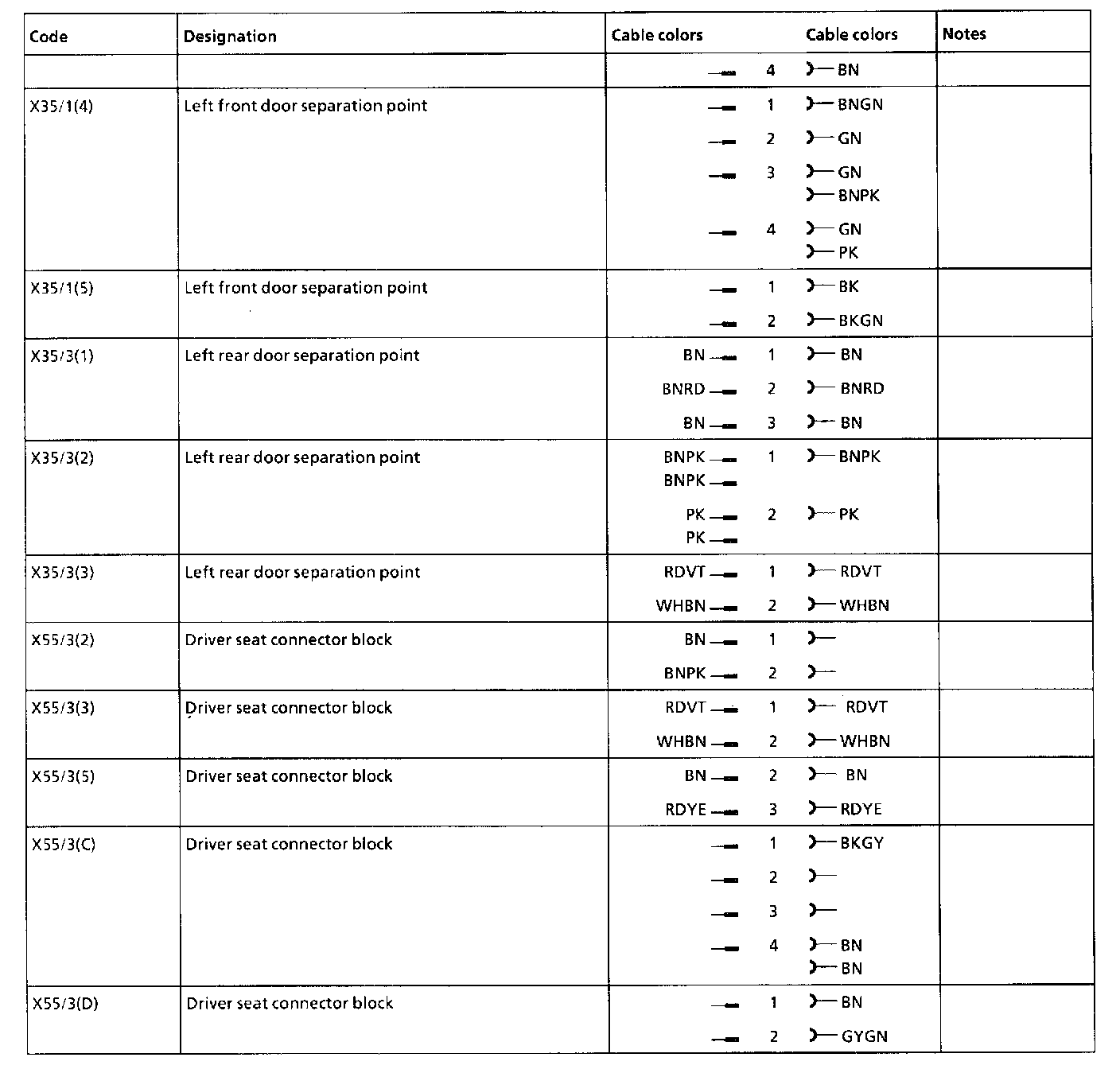

X35/1(4) - X55/3(D):
