GF40.15-P-0002-04P Tire Pressure Loss Warning (RDW) Mercedes-Benz Driver Information Service

GF40.15-P-0002-04P Tire Pressure Loss Warning (RDW) Mercedes-Benz Driver Information Service
- with CODE (477) Tire pressure loss warning

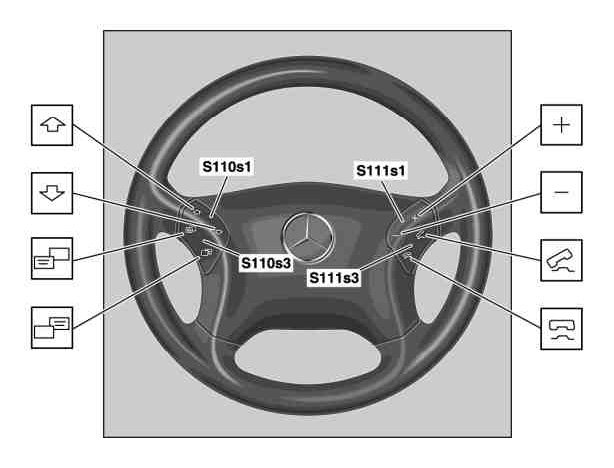

Multifunction steering wheel controls Models 203.0/2

S110s1 Scroll forward/back pushbutton
S110s3 System select pushbutton
S111s1 Pushbutton + and, setting of specific functions and volume control
S111s3 Accept/terminate phone call pushbutton

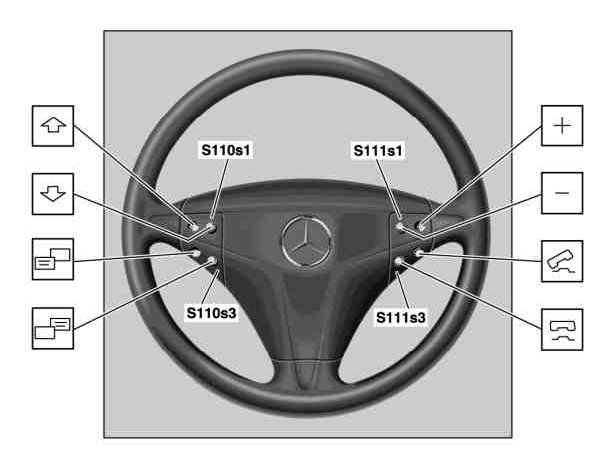

Multifunction steering wheel controls, MODEL 203.7

S110s1 Scroll forward/back pushbutton
S110s3 System select pushbutton
S111s1 Pushbutton + and, setting of specific functions and volume control
S111s3 Accept/terminate phone call pushbutton





S110s1 Scroll forward/back pushbutton

General information

The multifunction display (A1p13) is operated via the following buttons:
^ Scroll forward/back pushbutton (S110s1)
^ System select pushbutton (S110s3)
^ Pushbutton + and, specific function setting and volume control (S111s1)
^ Accept/terminate phone call button (S111s3)
^ Fanfare horns button (S110s5)
^ Fanfare horns button (S111s5)

With the above buttons it is possible to call up the display of various systems in the multifunction display (A1p13) and scroll within a system.

Activating tire pressure loss warning:

^ Transmitter key (A8/1) in position "circuit 15 ON" or while driving.
^ Press the system selection pushbutton (S110s3) until the multifunction display (A1p13) shows the default image (total and trip recorder).

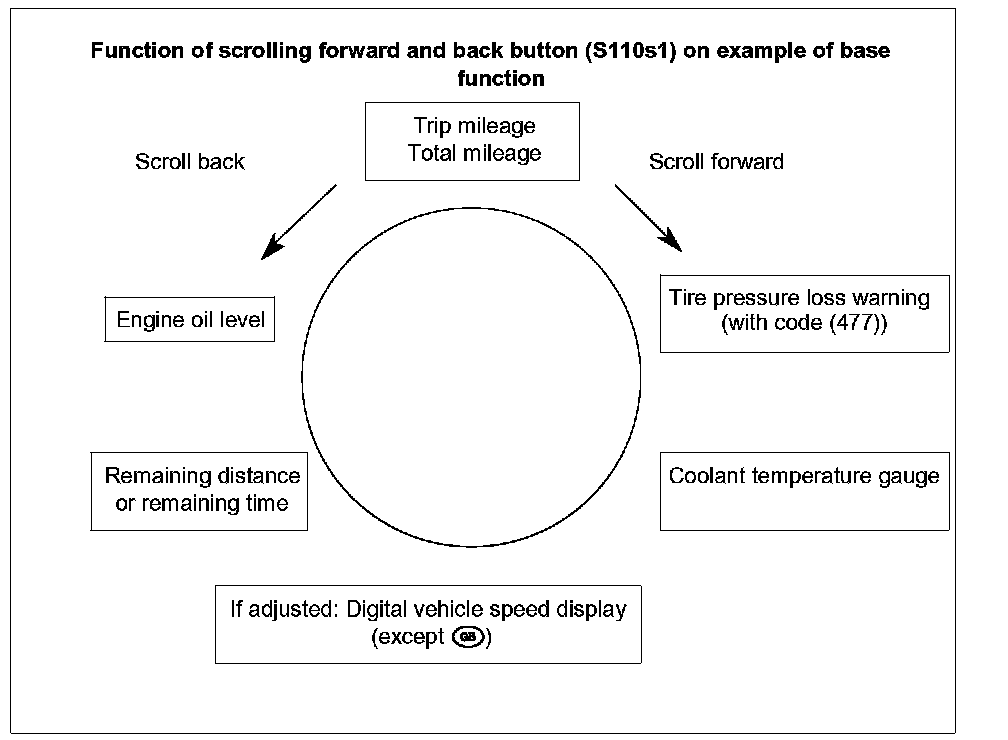

^ Press the scroll forward and back button (S110s1) until" TIRE PRESSURE MONITORING REACTIVATION WITH +" appears.
