PE07.61-U-2101CD ME-SFI Fuel Injection and Ignition System Control Module
PE07.61-U-2101CD ME-SFI Fuel Injection and Ignition System Control Module
PE07.61-U-2101CD ME-SFI Fuel Injection and
Ignition System
Control Module
Engine 113 as of 06/01/00 in Model 215

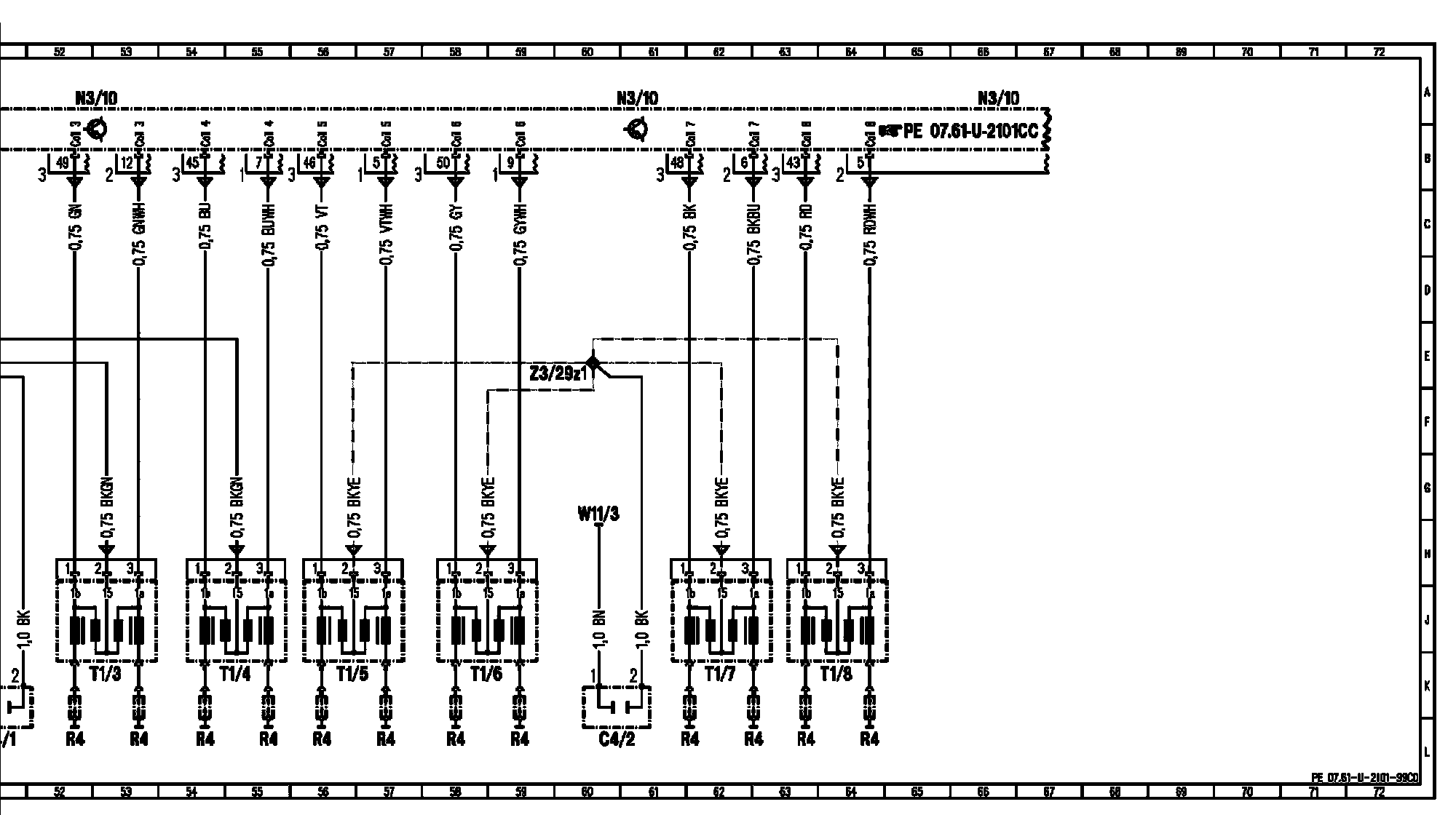

ME 2.8 F4, Control Module N3/10, Sheet 2
