Radio (RD) Control Module PE82.60-U-2000MJ




Radio
- with CODE (810) Sound System

�j^=��^=k�^=Radio, PE82.60-U-2000MJ:

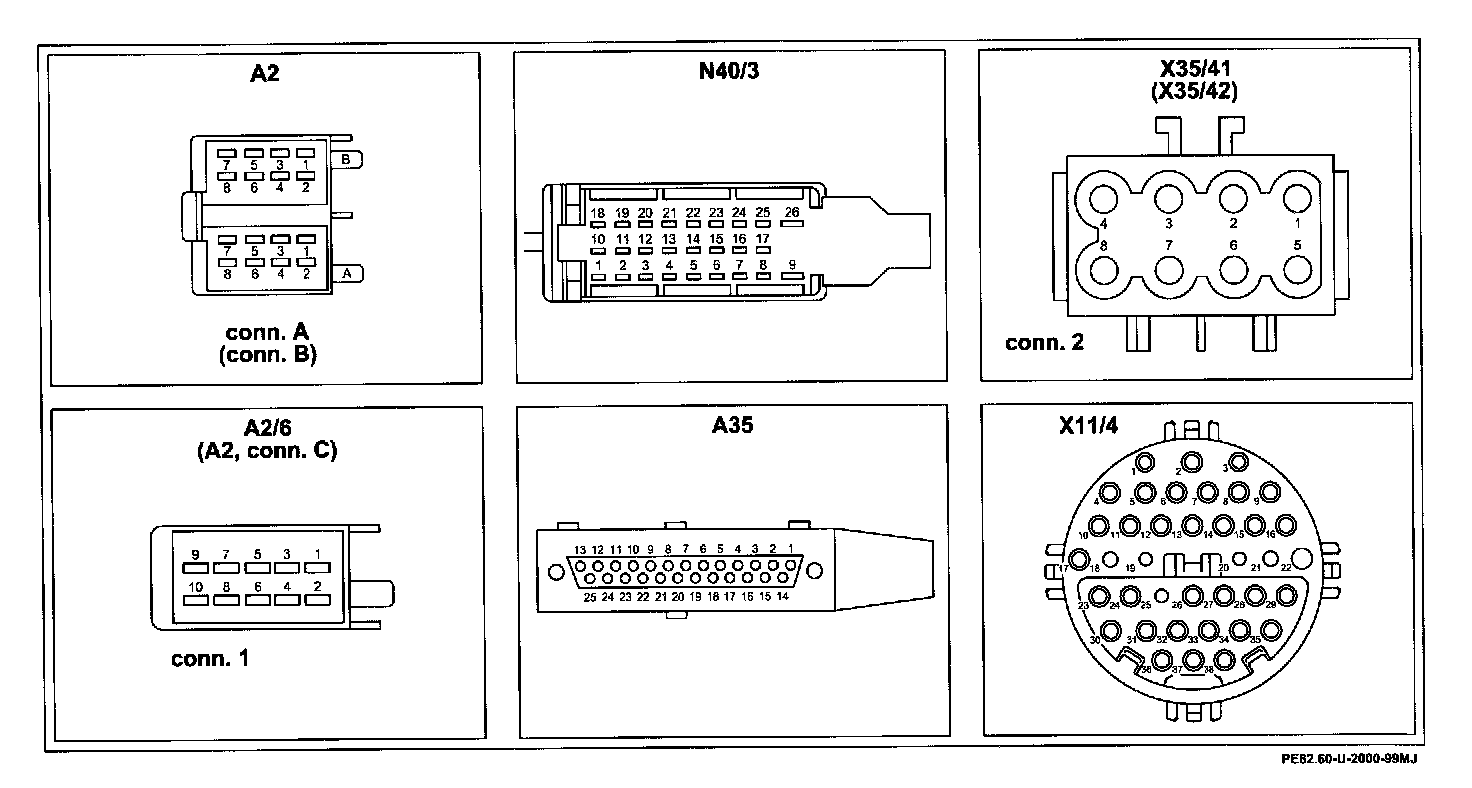

Connector Assignment:






Pin Information, Part 1:






Pin Information, Part 2:
