Radio (RD) Control Module PE82.60-U-2000ML
Radio (RD) Control Module PE82.60-U-2000ML
Radio
- except CODE (810) Sound System

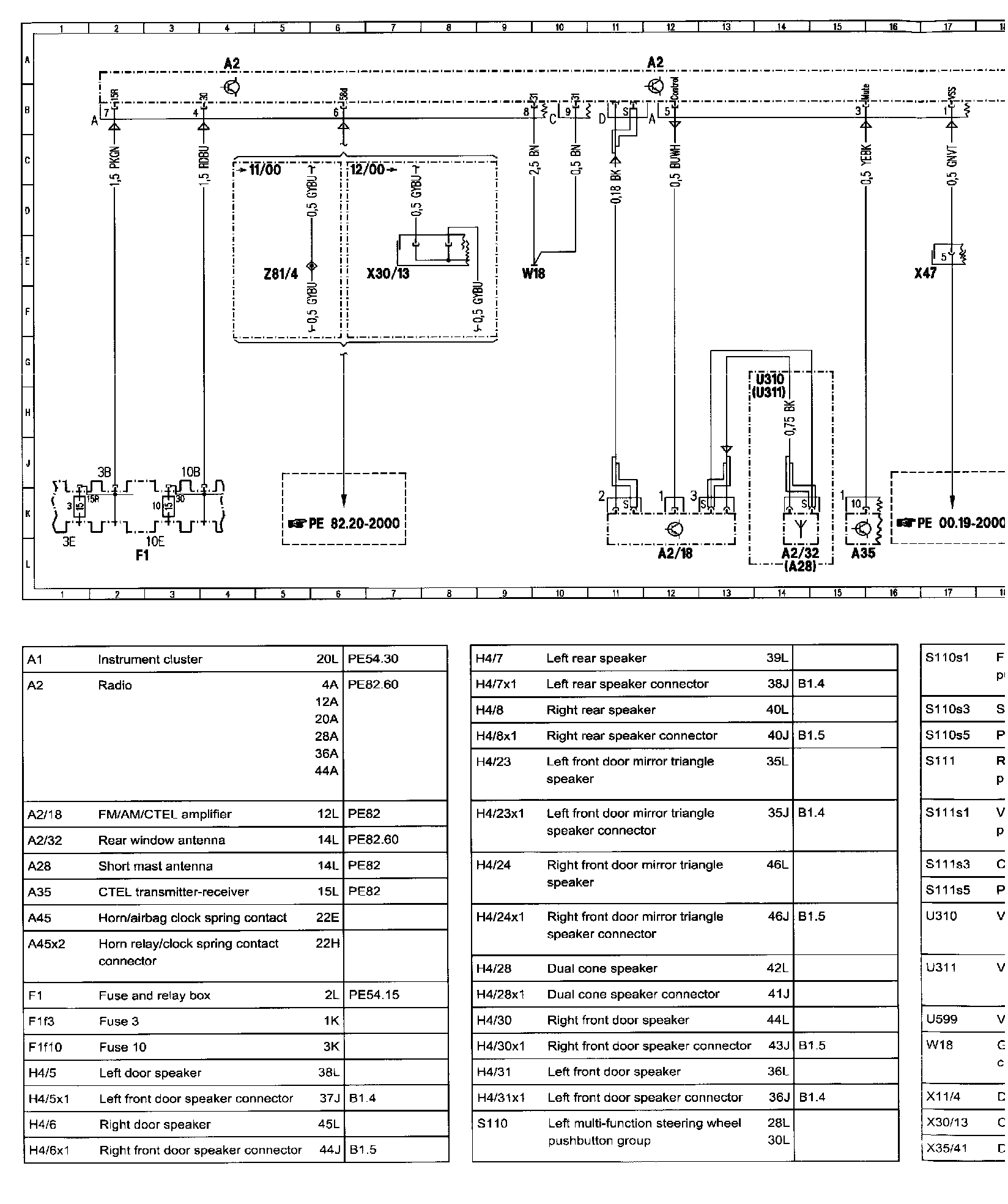

>&`=Yp`=Wiring Diagram:
Connector Assignment:

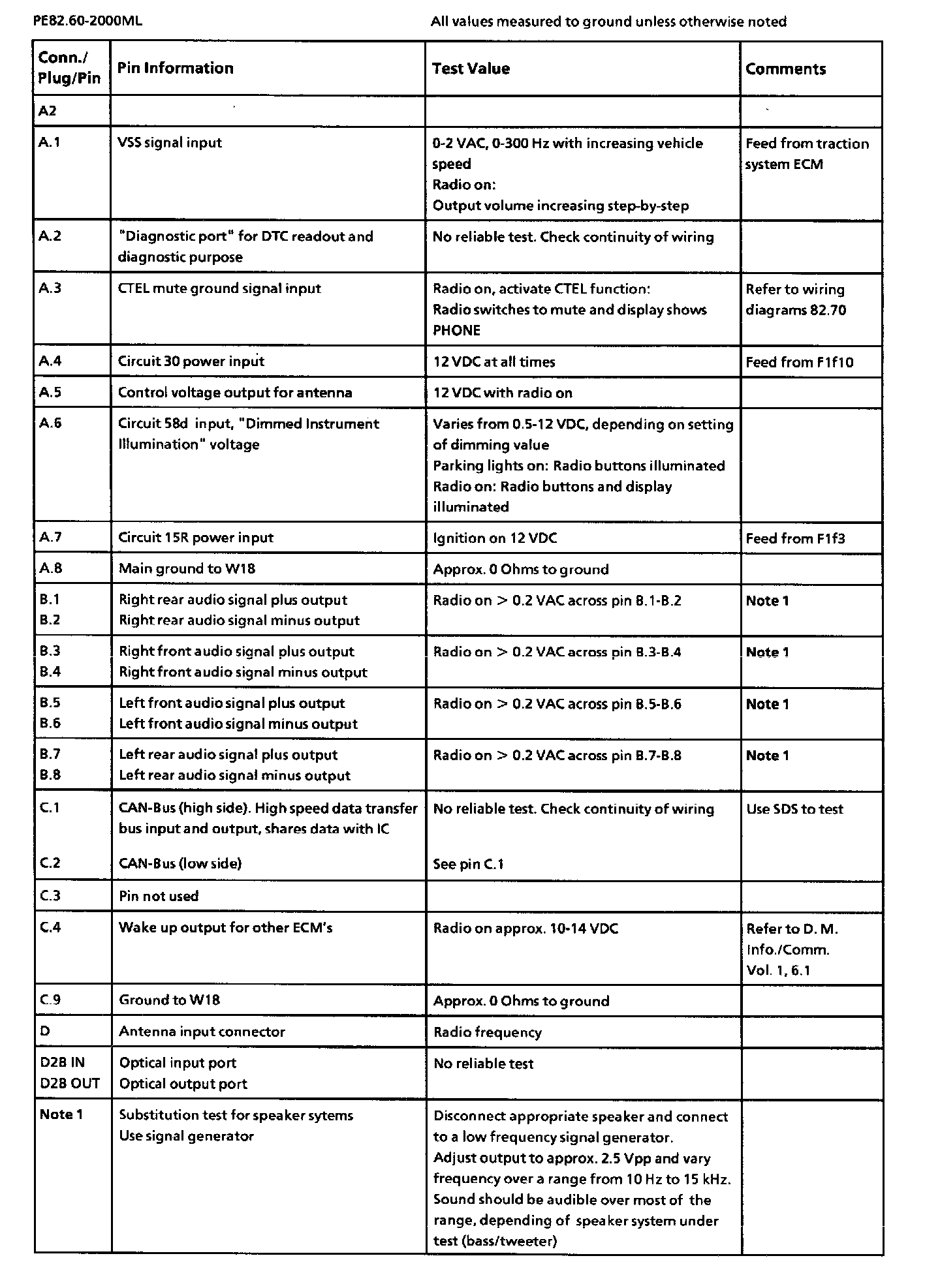

Pin Information:
