Auto Dimming Inside Rear View Mirror PE68.49-U-2000MD



Automatic Dimming Inside Rear View Mirror


���EAutomatic Dimming Inside Rear View Mirror, PE68.49-U-2000MD:

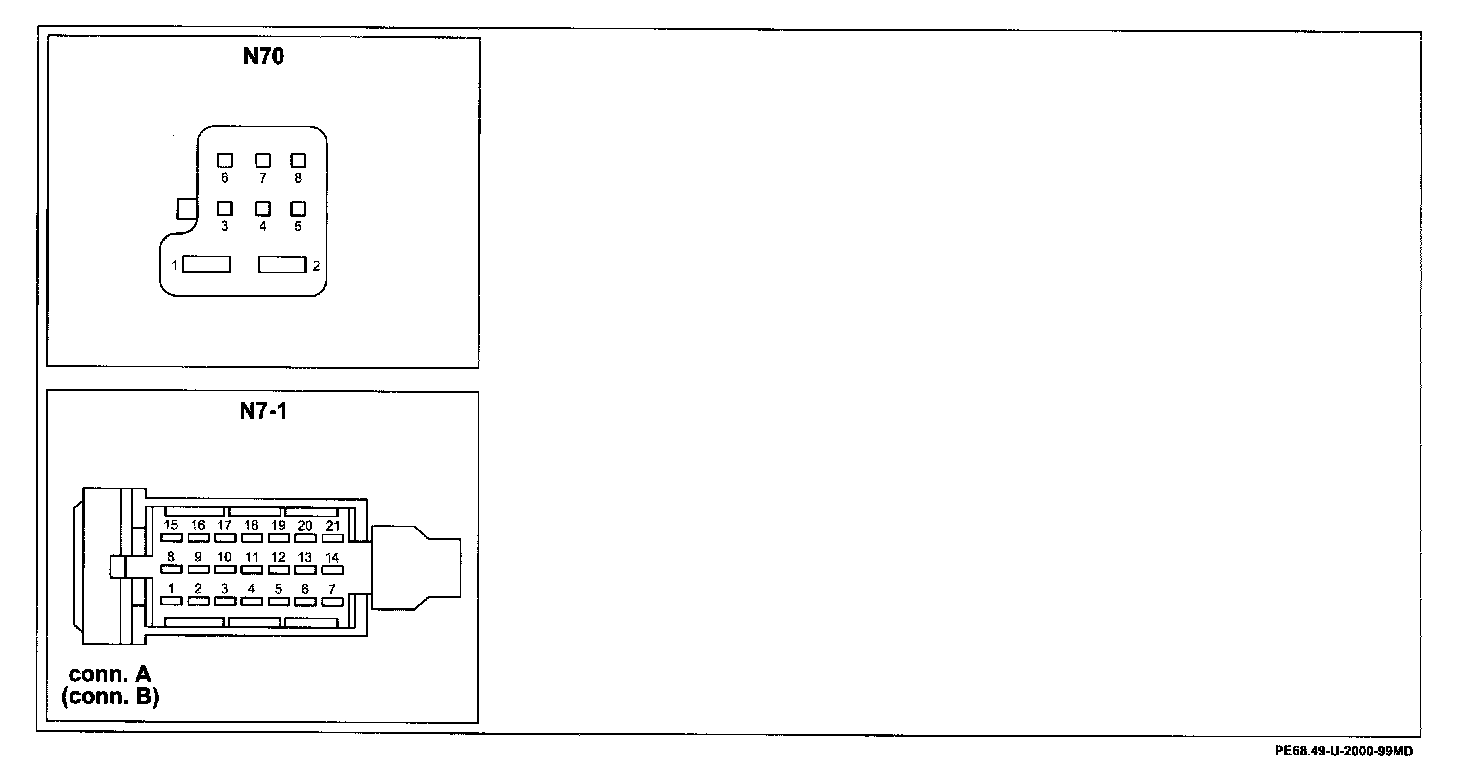

Connector Assignment:

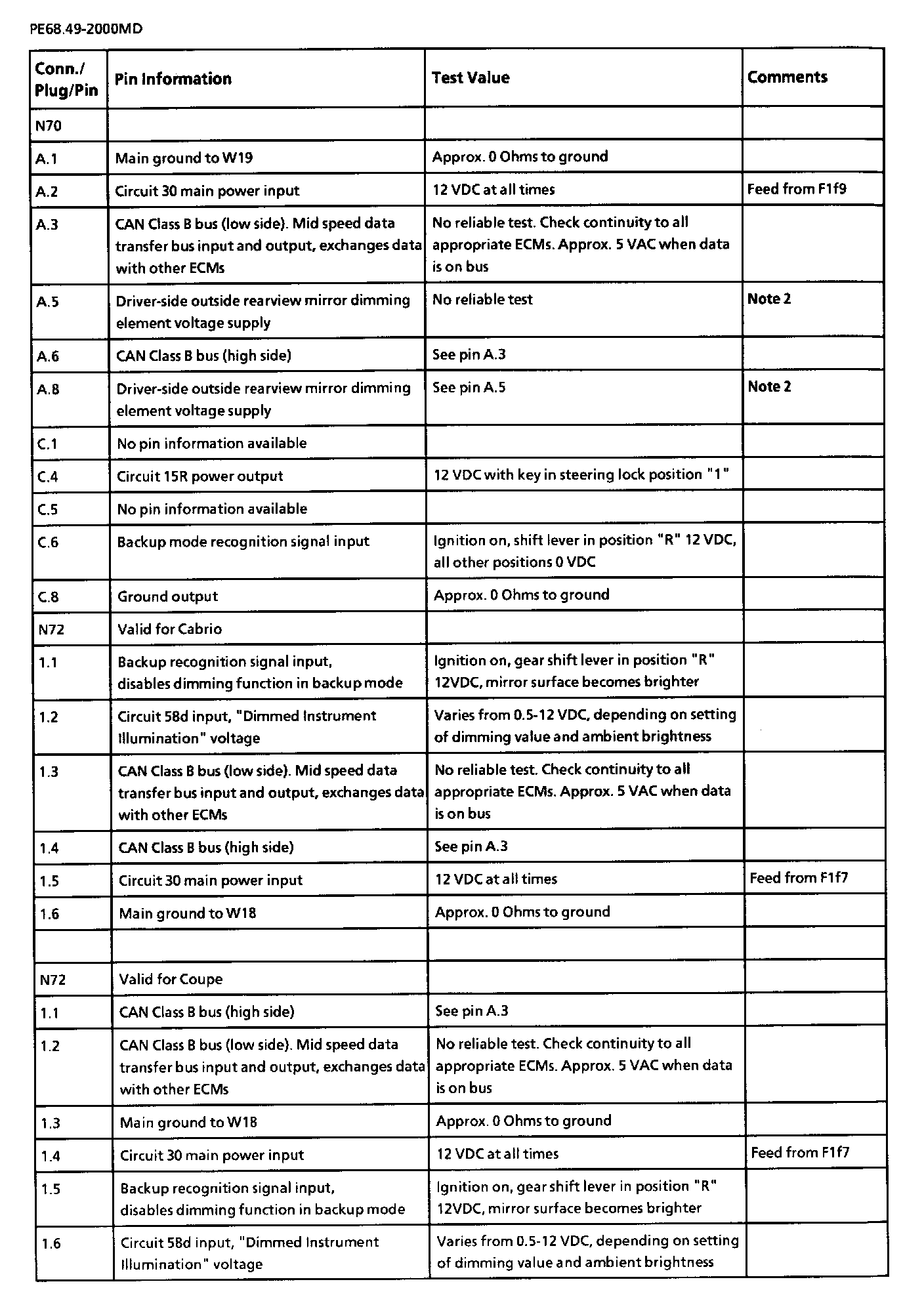

Pin Information, Part 1:






Pin Information, Part 2:
