Convertible Top: Diagrams

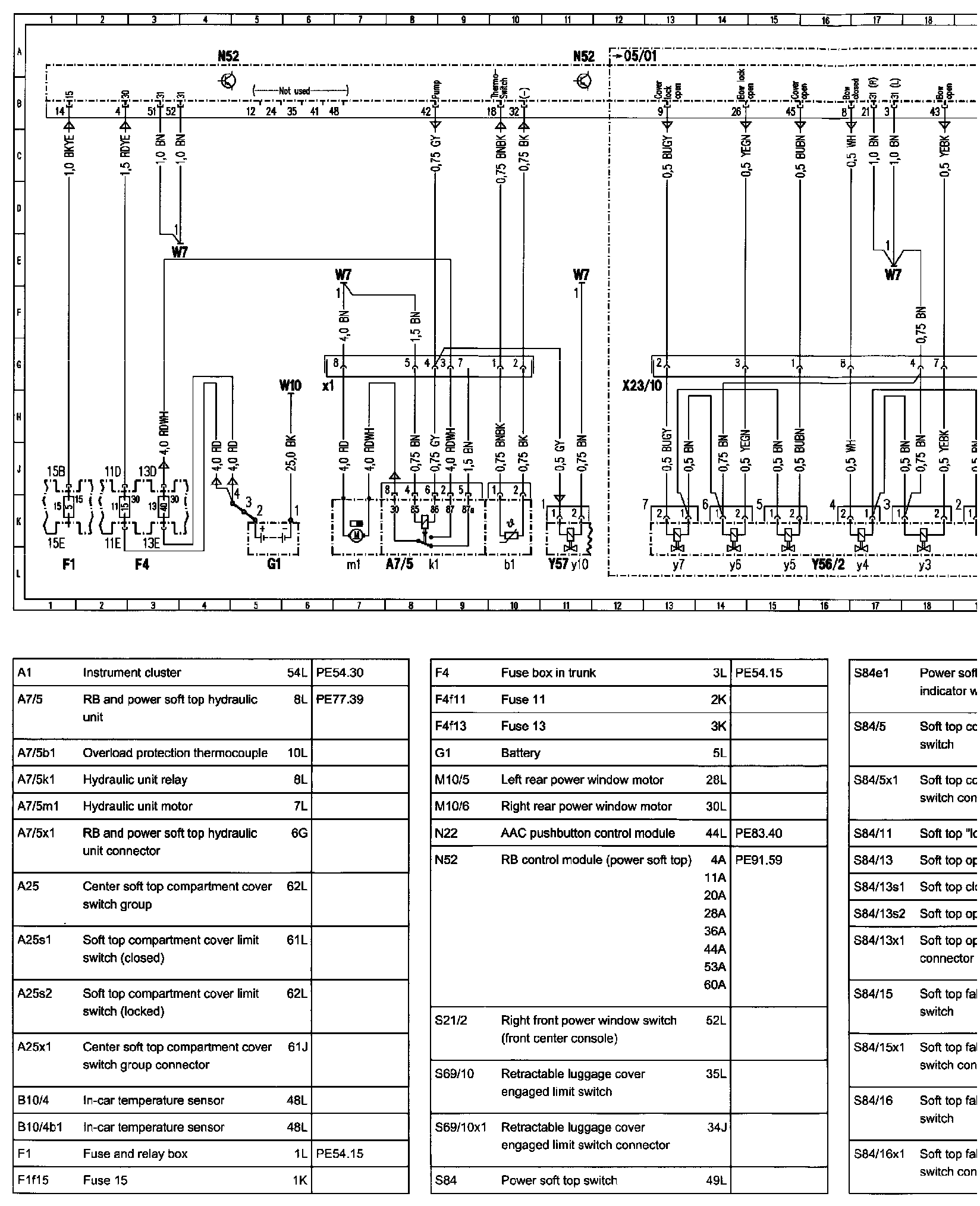

Electrohydraulic Soft Top
h�"Ig:
Connector Assignment:
Pin Information, Part 1:
Pin Information, Part 2:
Pin Information, Part 3:
