Retractable Rear Head Restraints (RHR), PE91.16-U-2000MB
Retractable Rear Head Restraints (RHR), PE91.16-U-2000MB
Retractable Rear Head Restraints (RHR)

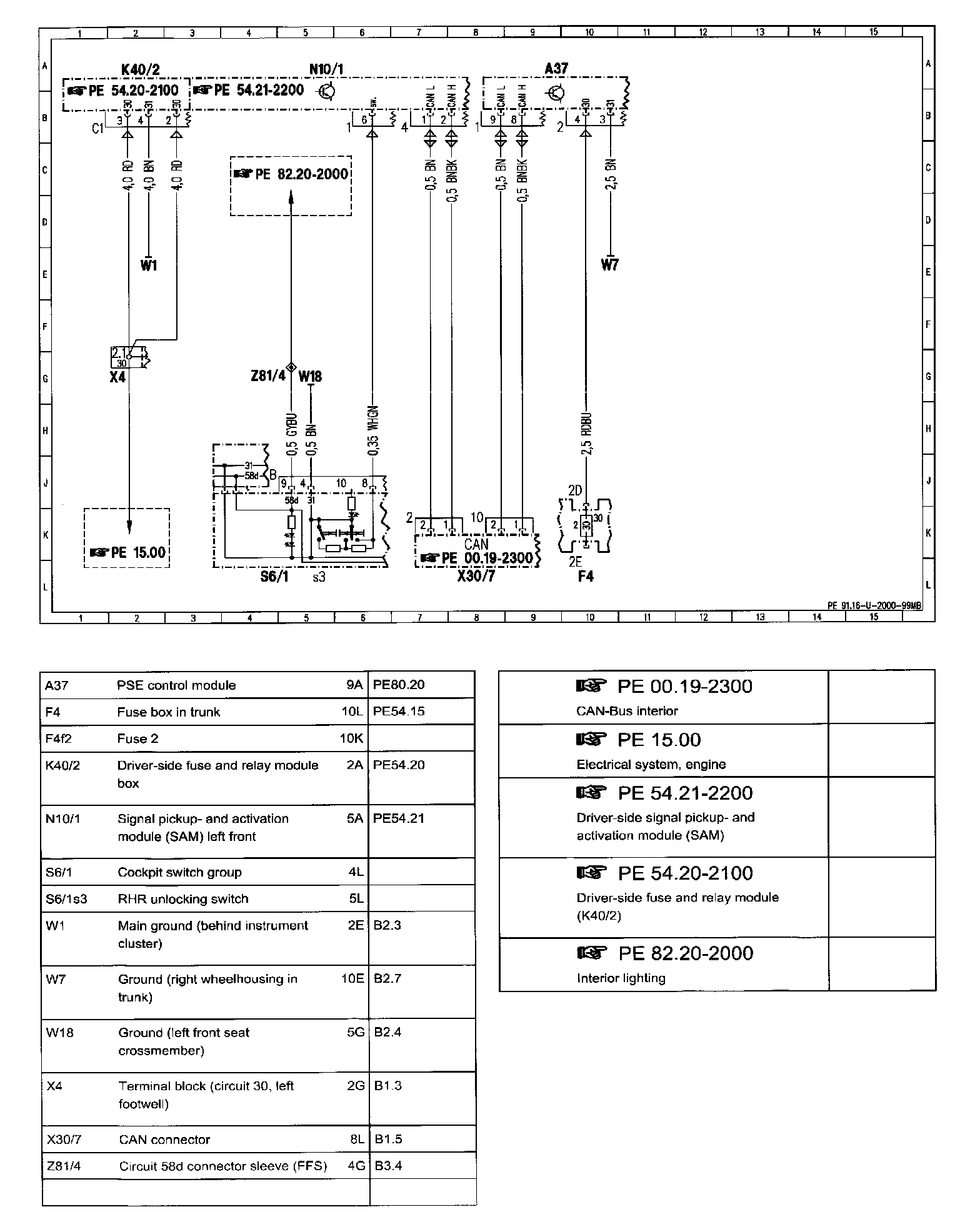

Retractable Rear Head Restraints (RHR), PE91.16-U-2000MB:
Connector Assignment:

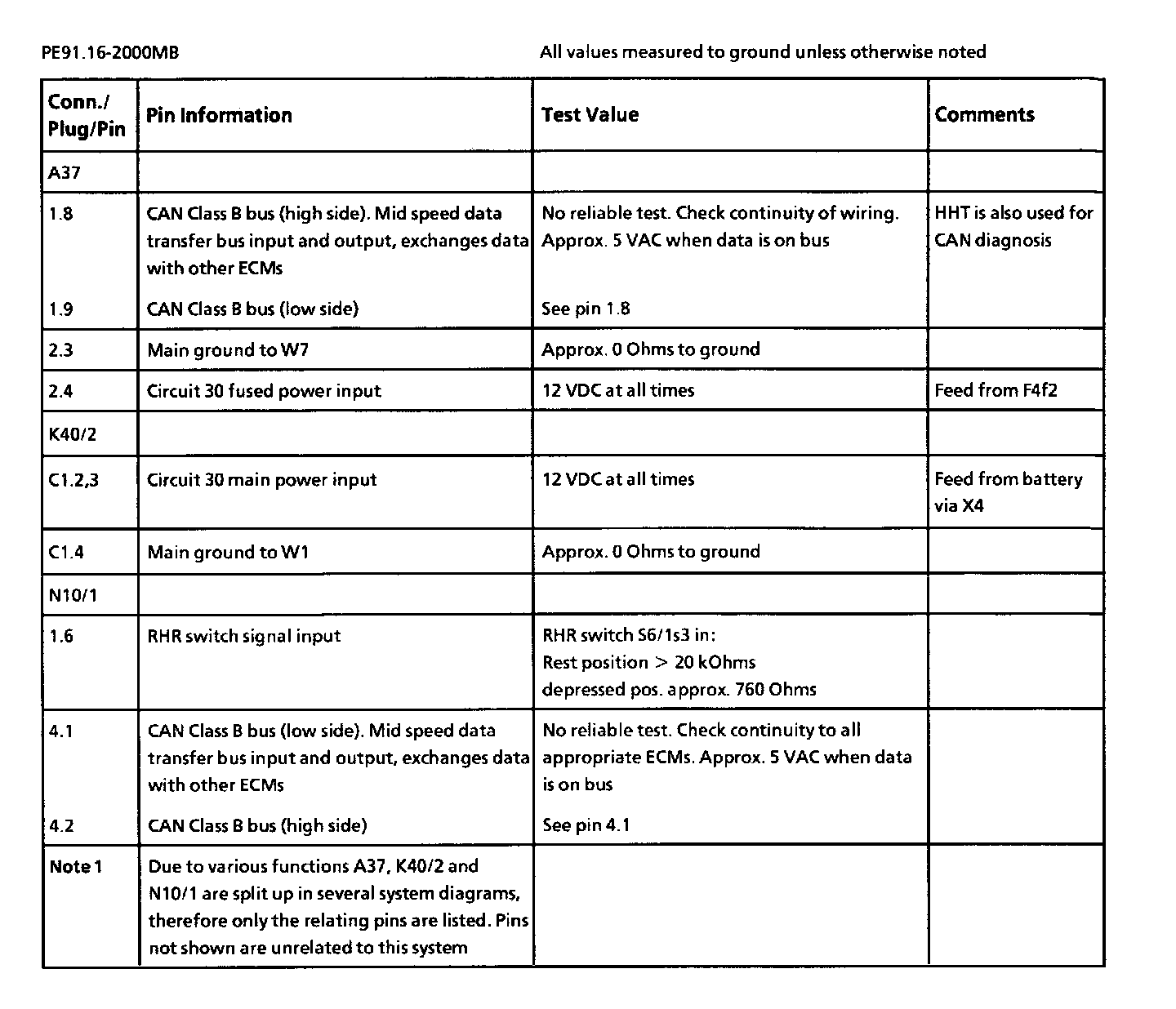

Pin Information:
