System Diagram
Instrument Cluster (CLUS)/Display Instruments/Warning Devices
�cO�dOadOInstrument Cluster (CLUS)/Display Instruments/Warning Devices, PE54.30-U-2000MJ:

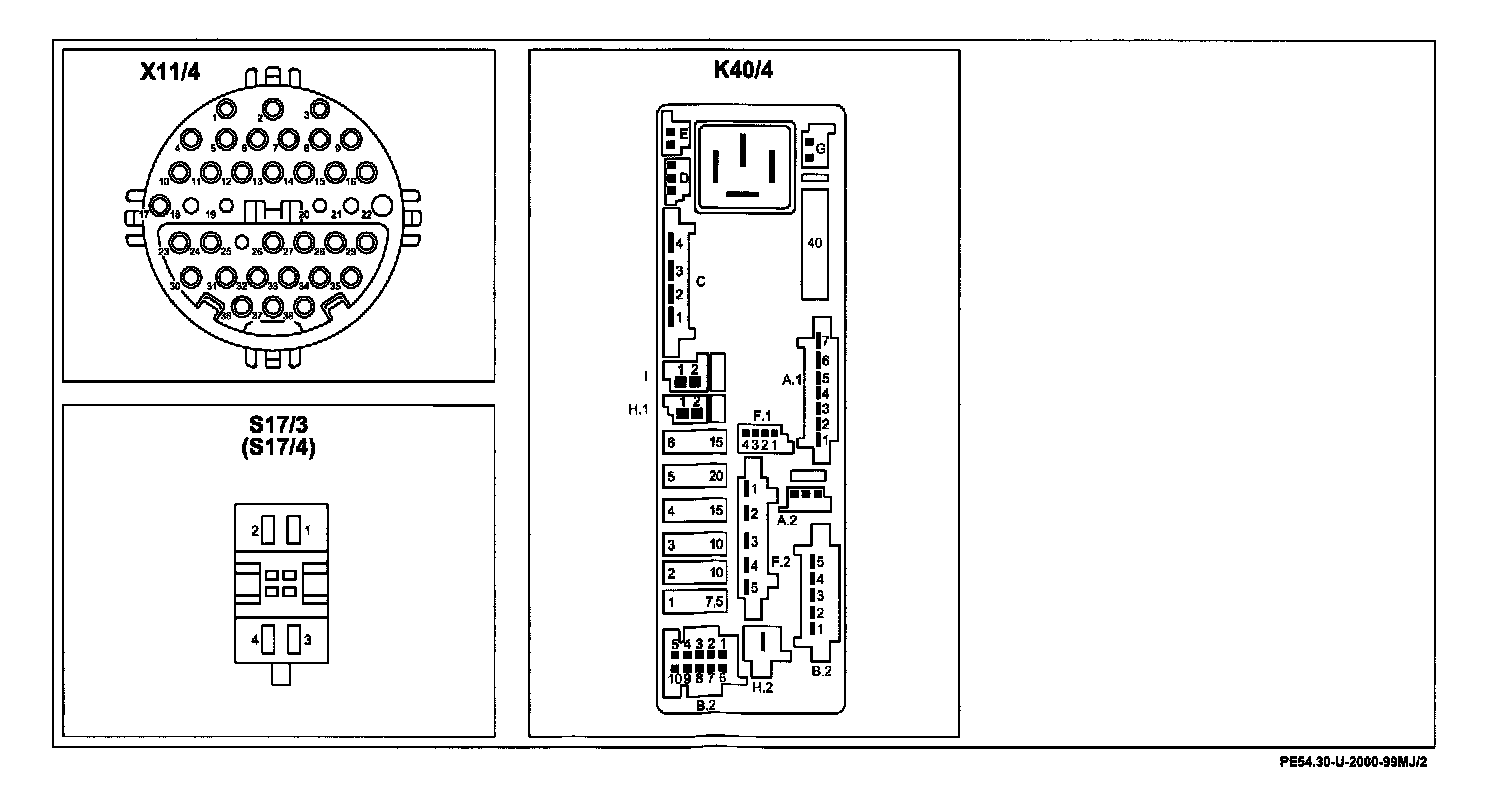

Connector Assignment:

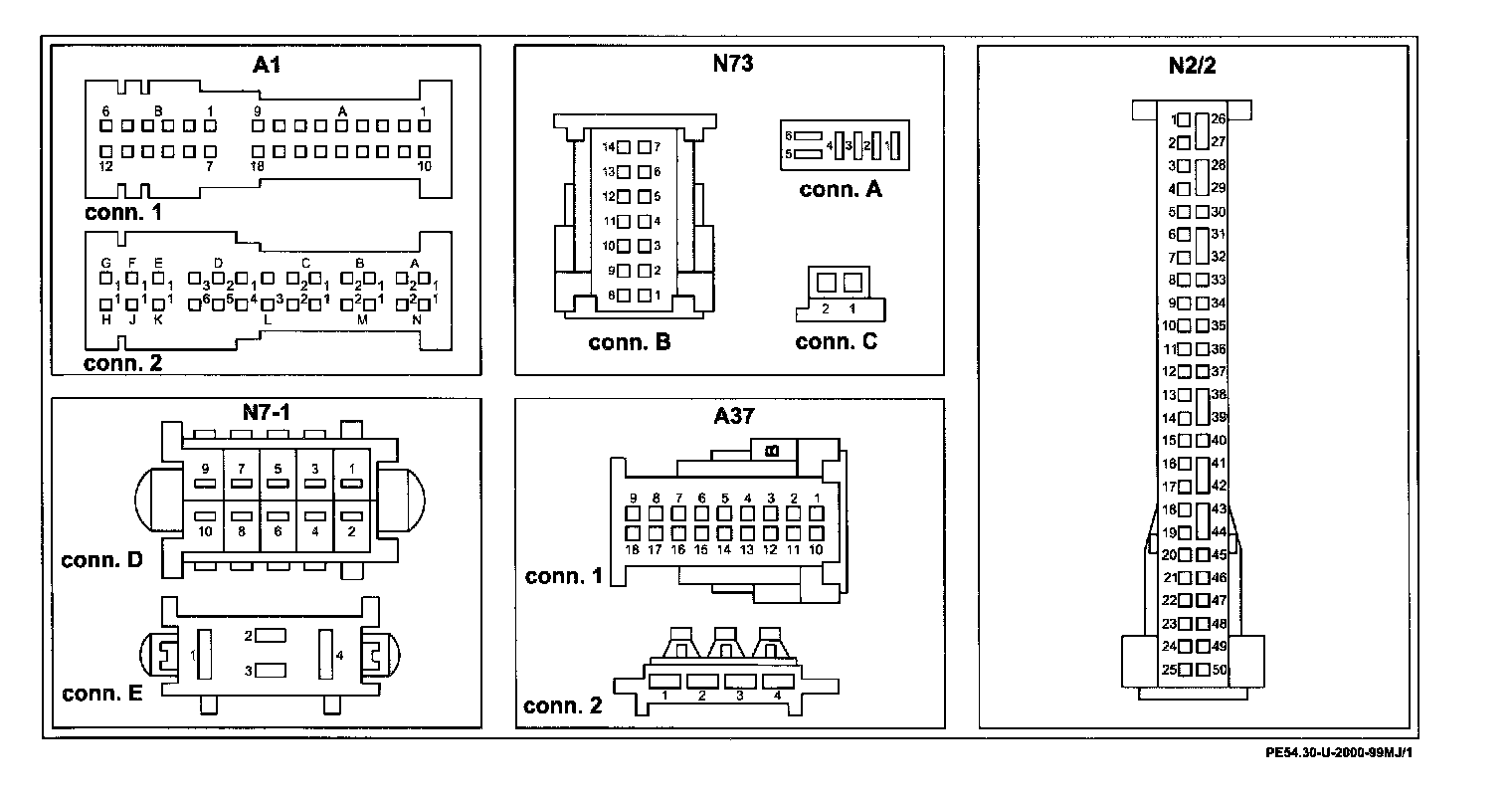

Connector Assignment:

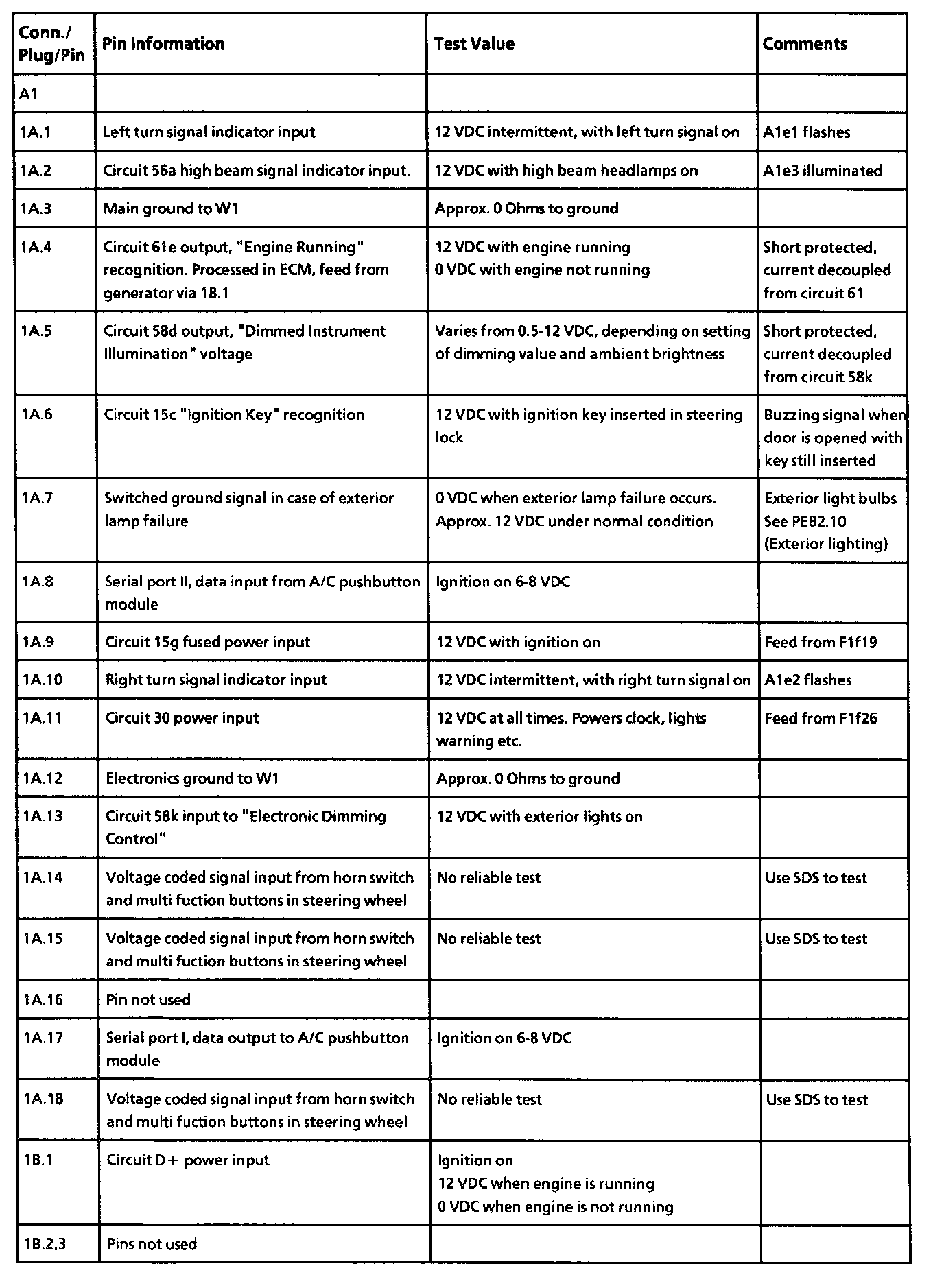

Pin Information, Part 1:

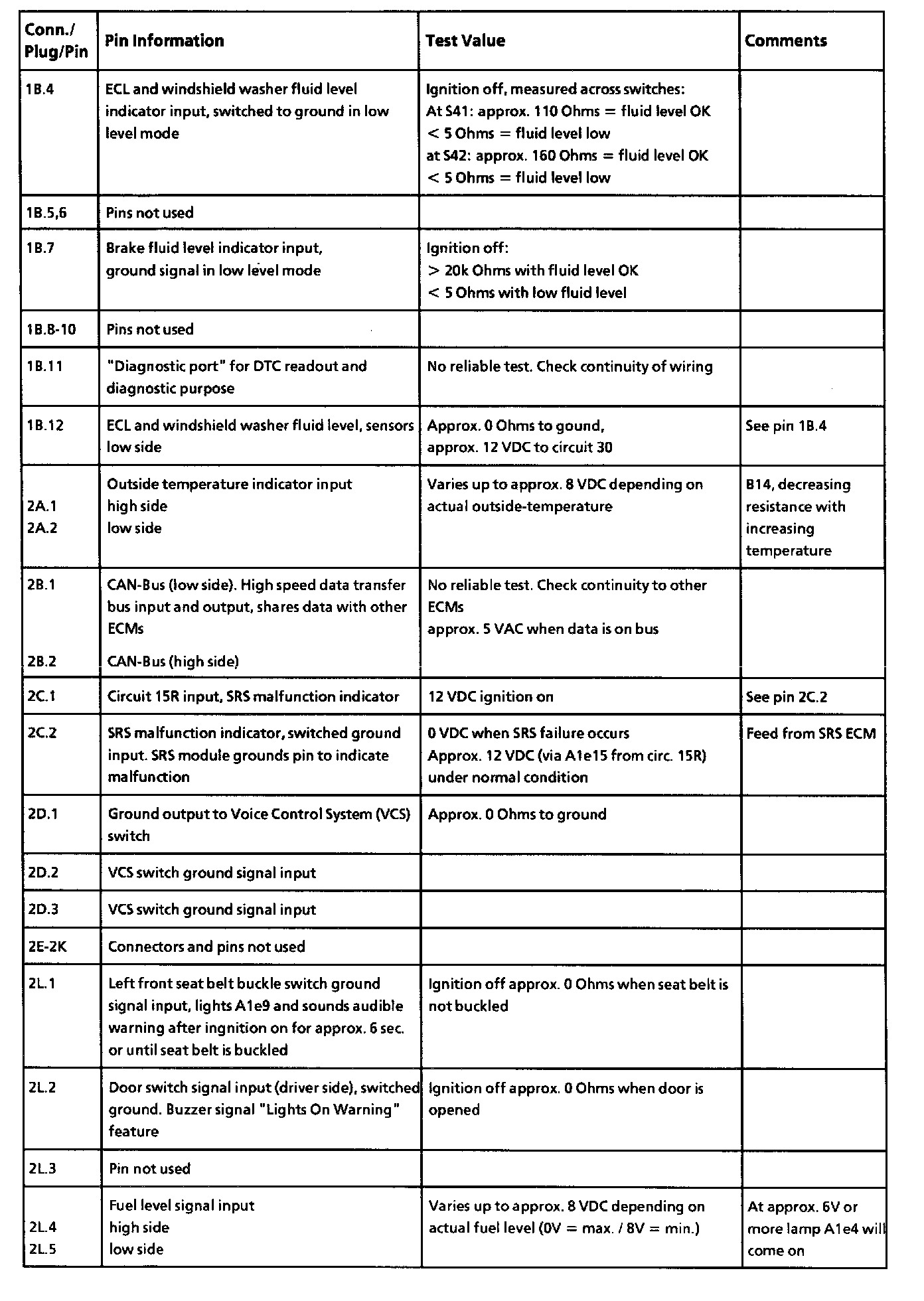

Pin Information, Part 2:

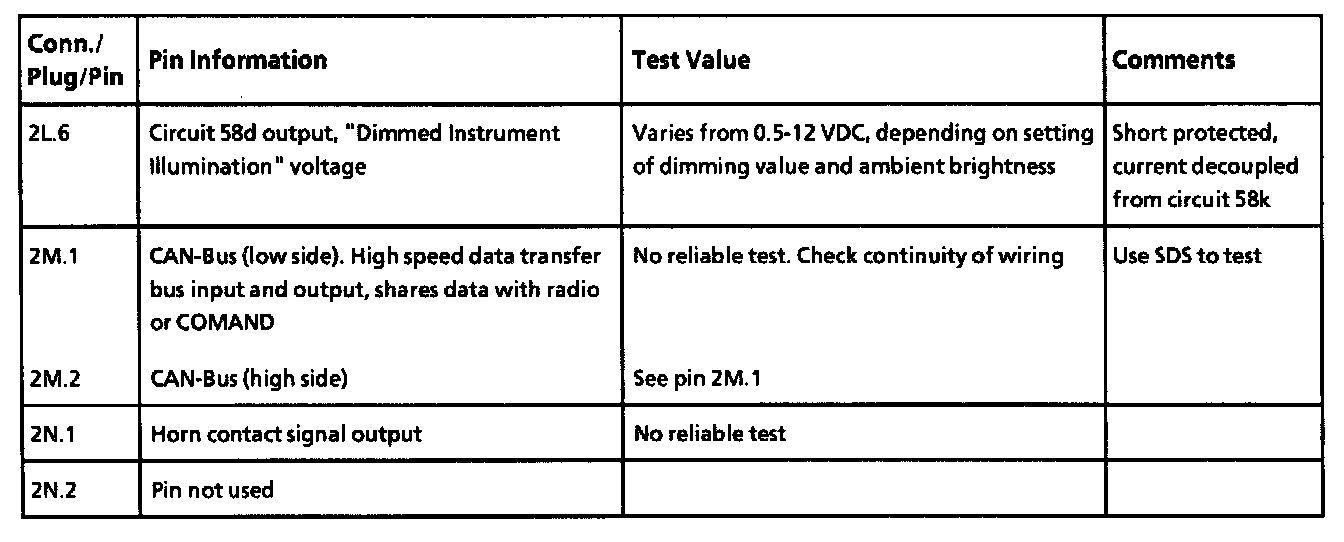

Pin Information, Part 3:
