AR63.20-P-1150-09KA Installing Console For Instrument Panel Carrier

AR63.20-P-1150-09KA Installing Console For Instrument Panel Carrier

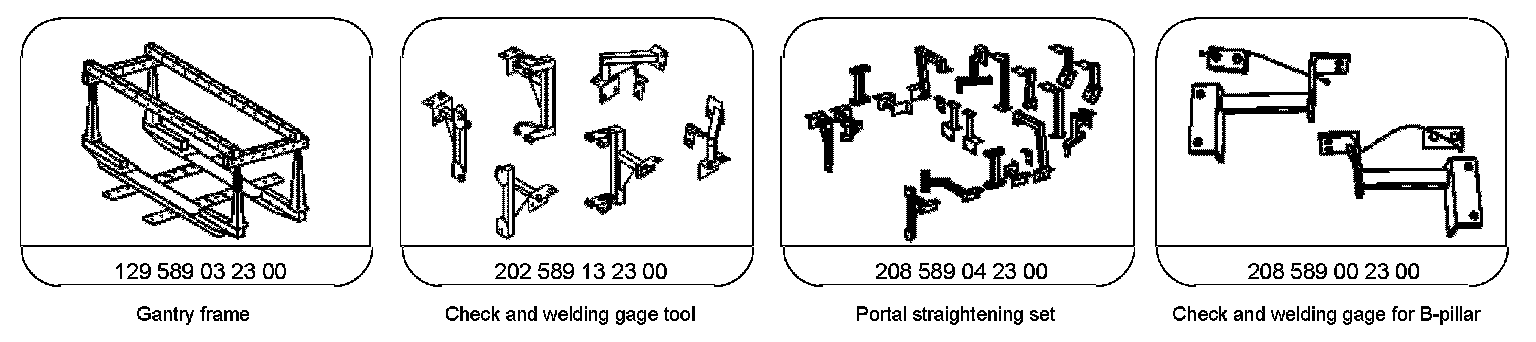

Special Tools:

Commercially Available Tools:

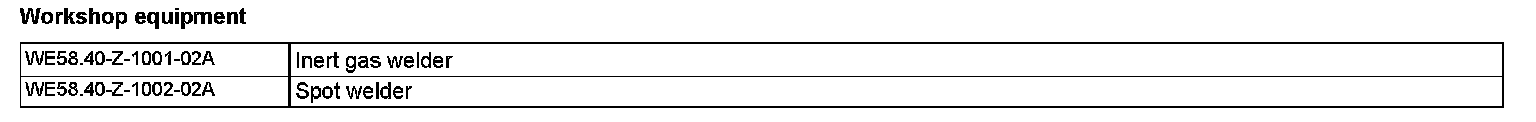

Workshop Equipment:

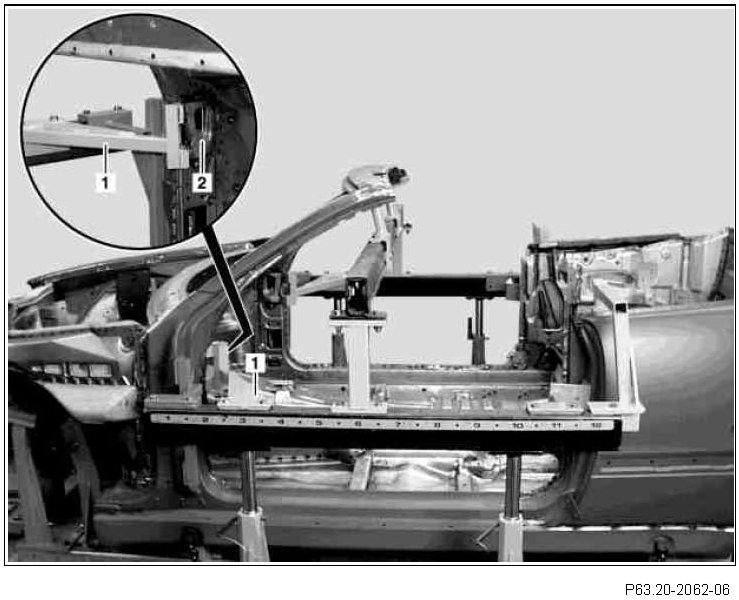

1. Install console for instrument panel carrier (2) on check and welding gage (1) intended for this purpose.
2. Install check and welding gage (1) with console for instrument panel carrier (2) and fasten to portal frame.
3. Fasten console for instrument panel carrier (2) to A-pillar with clamping pliers.

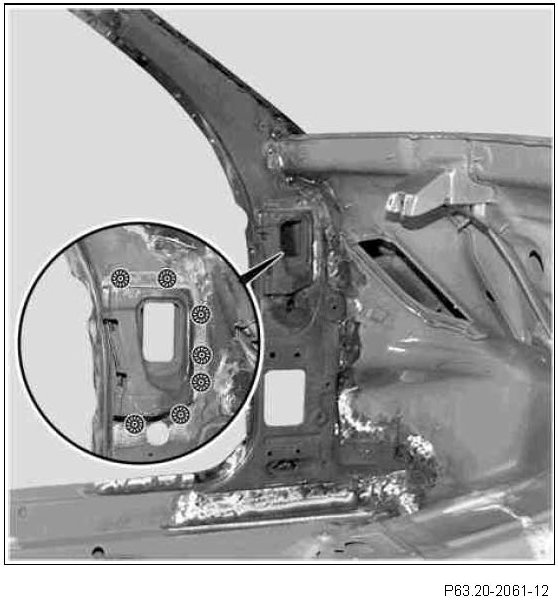

4. Weld console for instrument panel carrier plug weld.
5. Clean all welds with wire brush.
