Entry/Exit Lamps PE82.20-U-2100MB
Entry/Exit Lamps PE82.20-U-2100MB
Entry/Exit Lamps

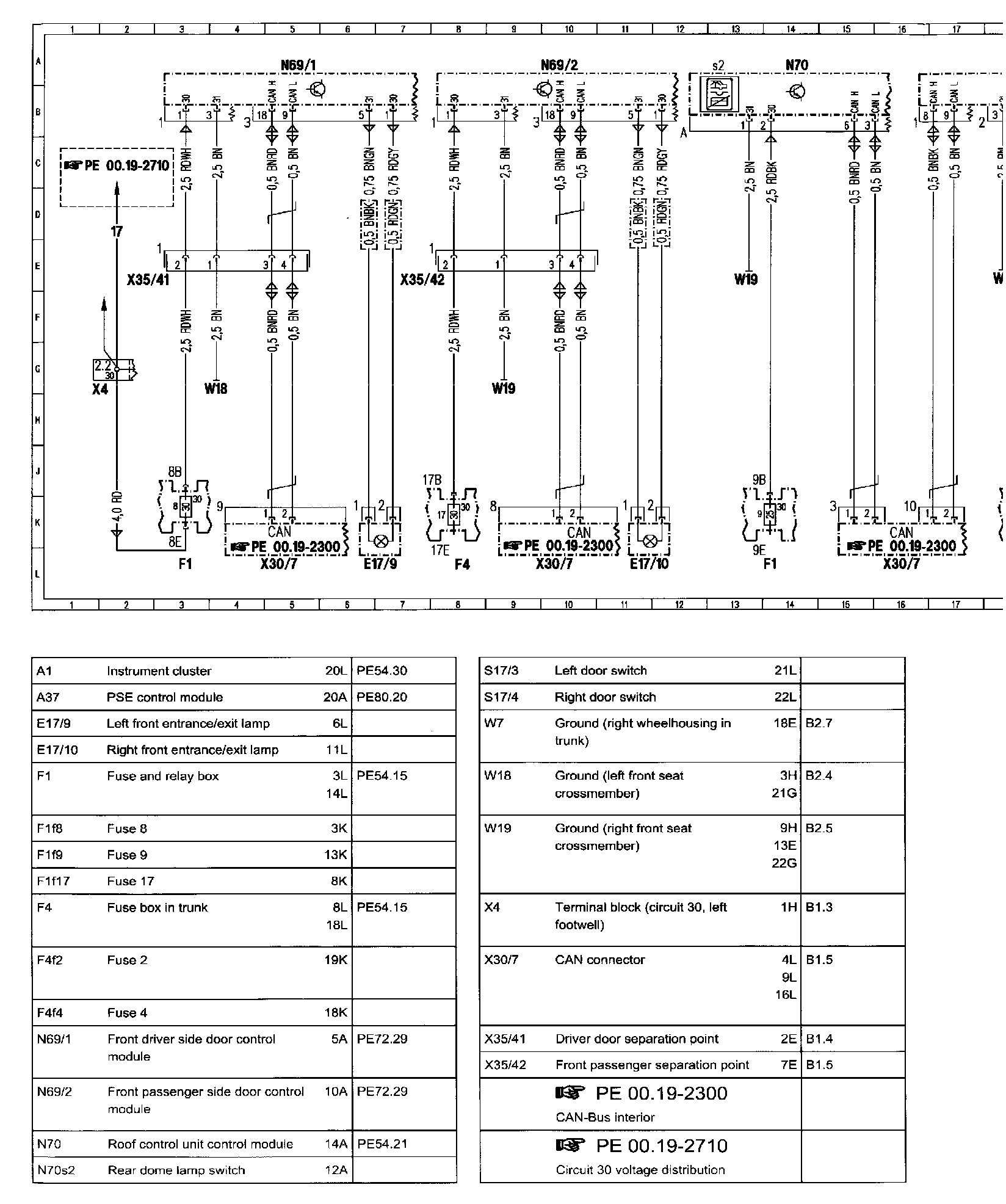

of�QInterior Lights, PE82.20-U-2100MB:

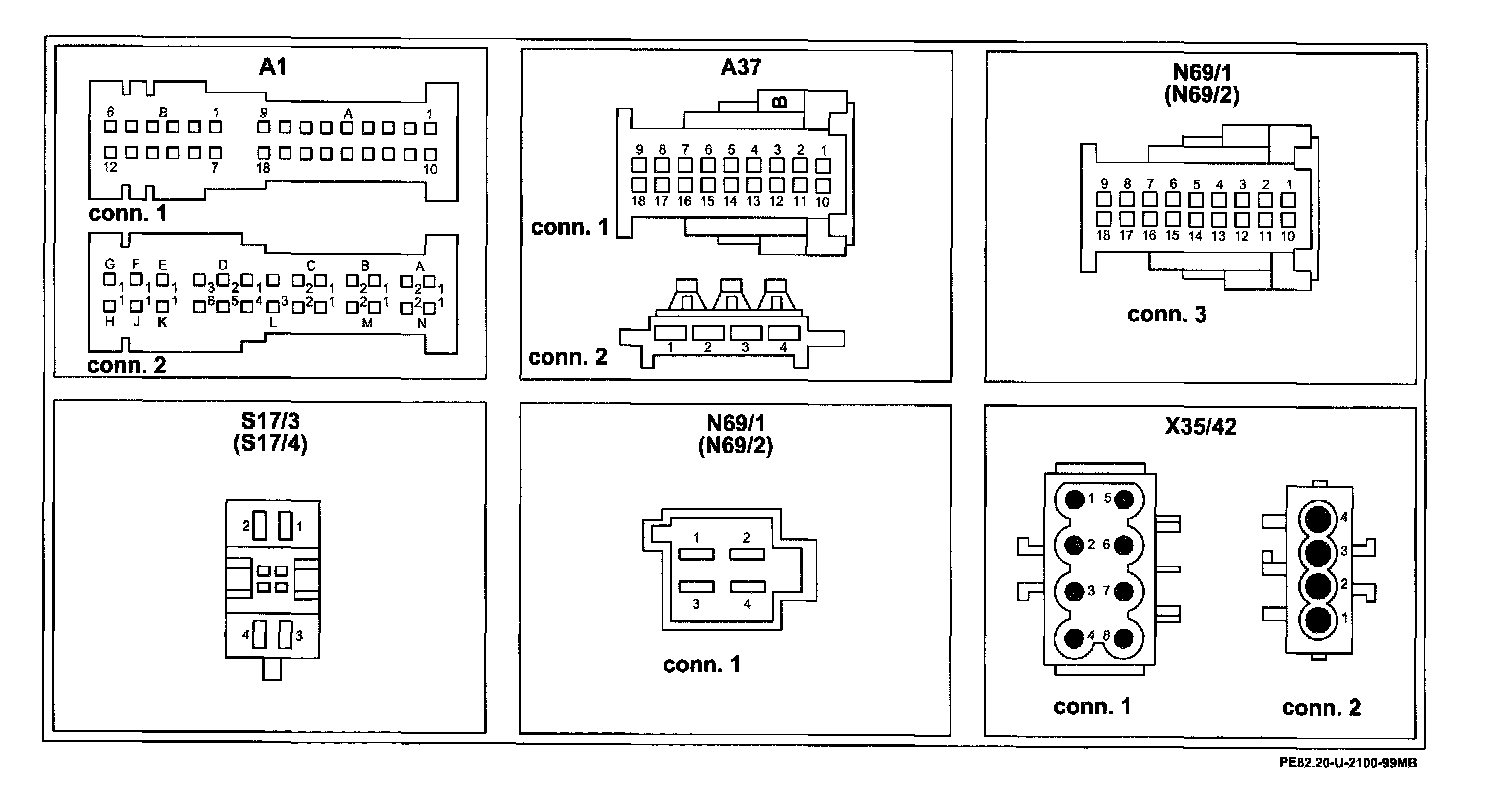

Connector Assignment:

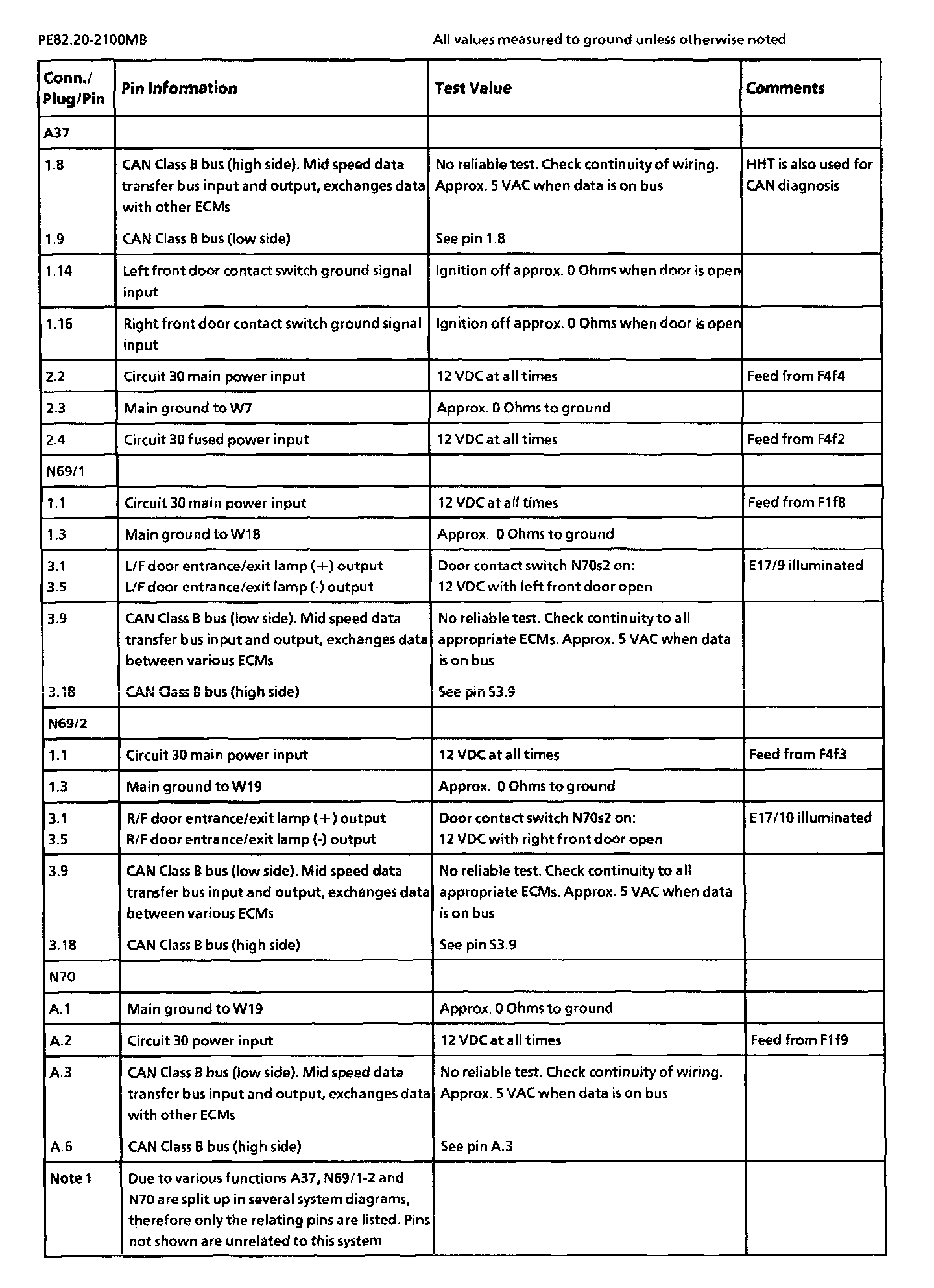

Pin Information:
