Exterior Lights PE82.10-U-2000MH (Part 1)

Exterior Lighting (Part 1)
- Indicators, switches and sensors, except front/rear lamp unit

謆Q]�QFU�QExterior Lights, PE82.10-U-2000MH:

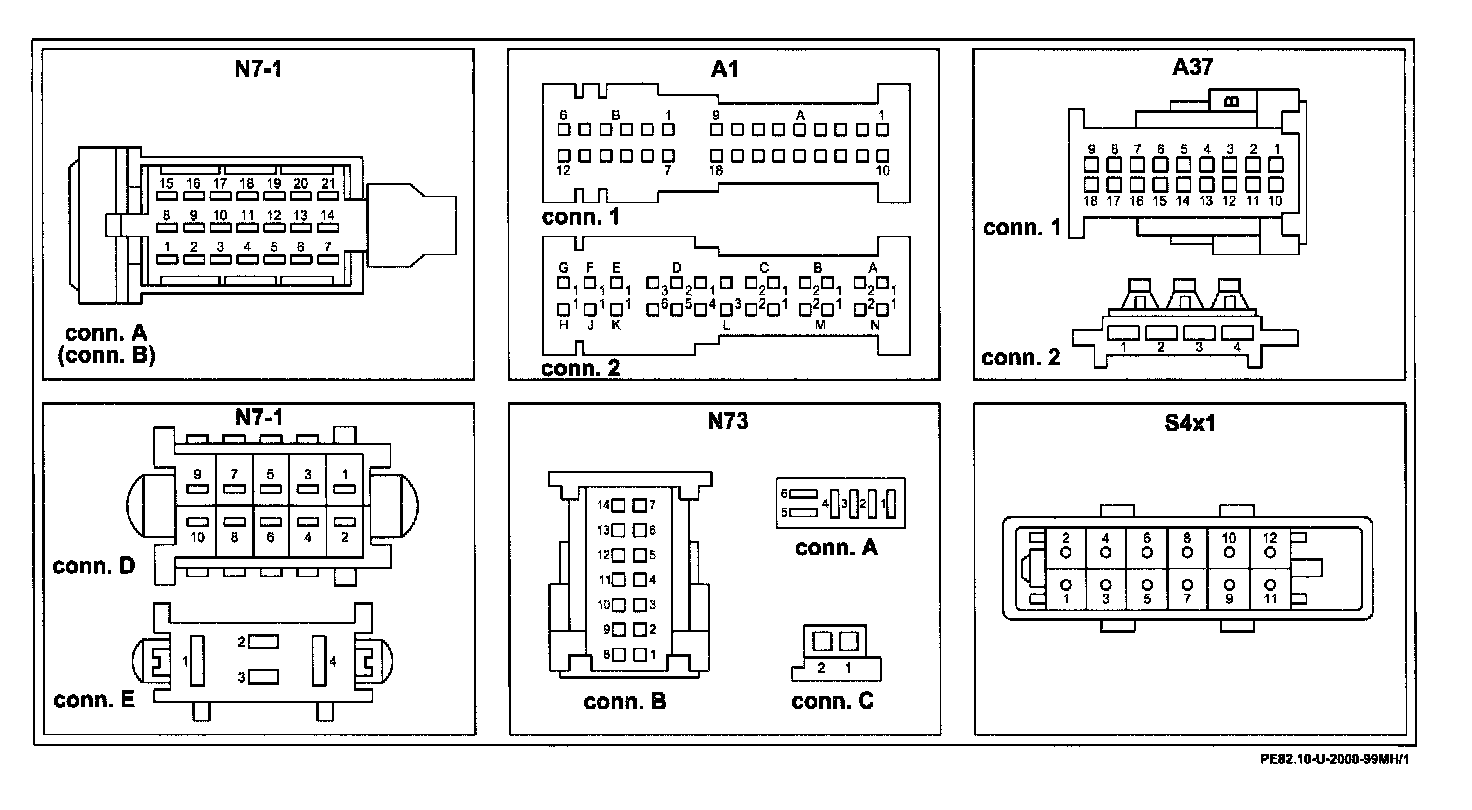

Connector Assignment:

Connector Assignment:

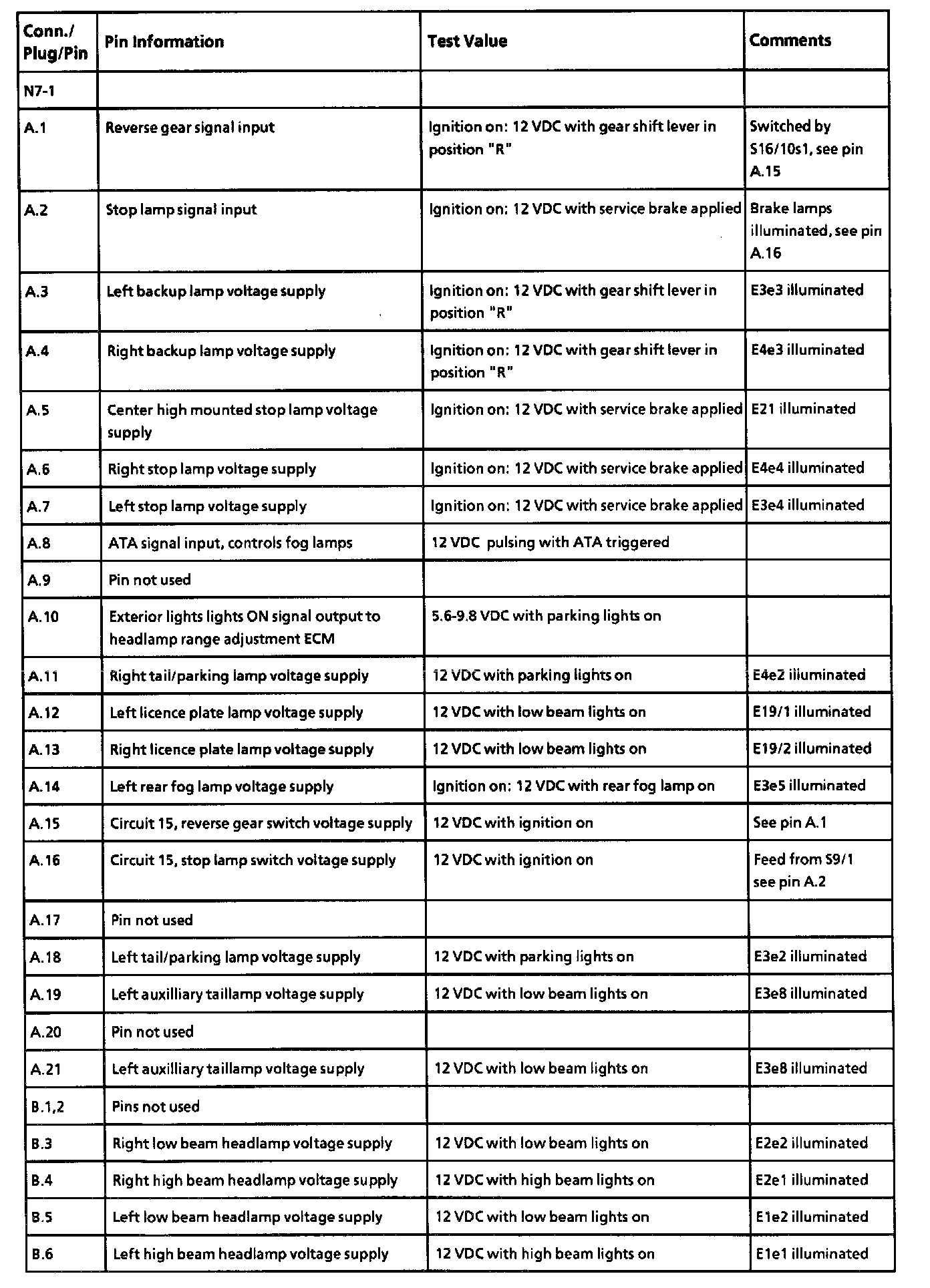

Pin Information, Part 1:

Pin Information, Part 2:
