Fuse and Relay Box (F1) PE54.15-U-2000MD
Fuse and Relay Box (F1) PE54.15-U-2000MD
Fuse and Relay Box (F1)

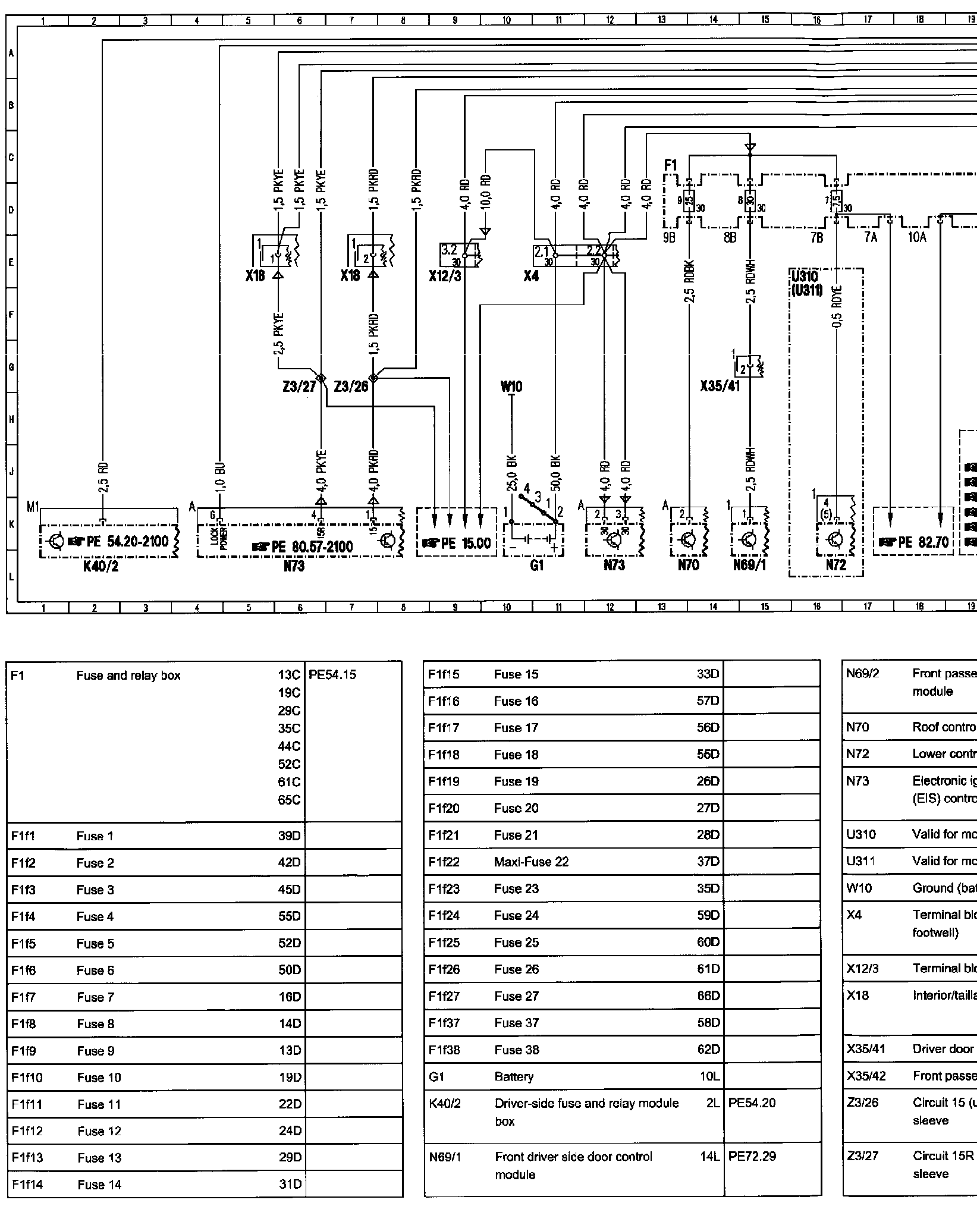

y.�+5}�+��+Fuse And Relay Box (F1), PE54.15-U-2000MD:

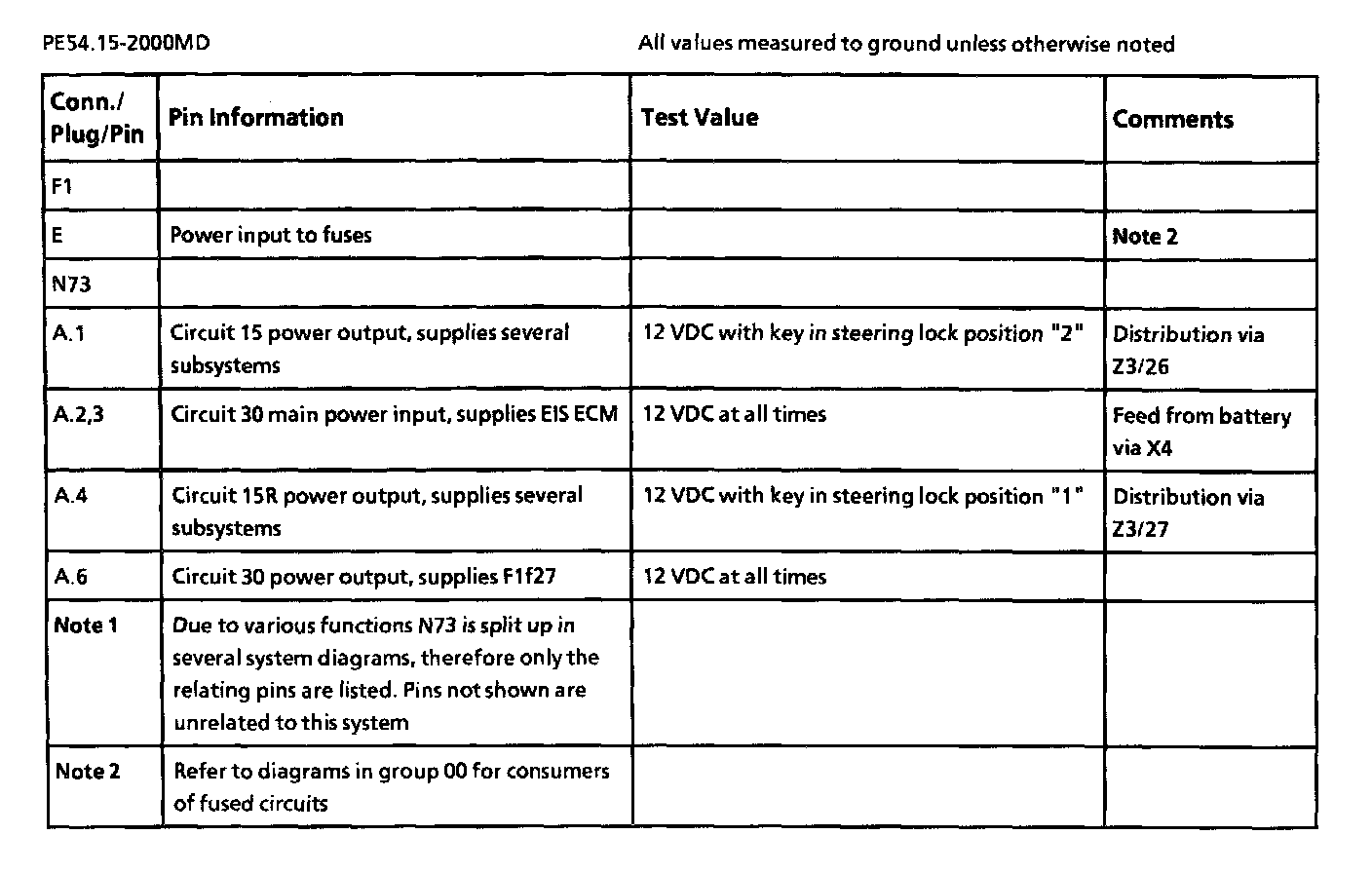

Pin Information:

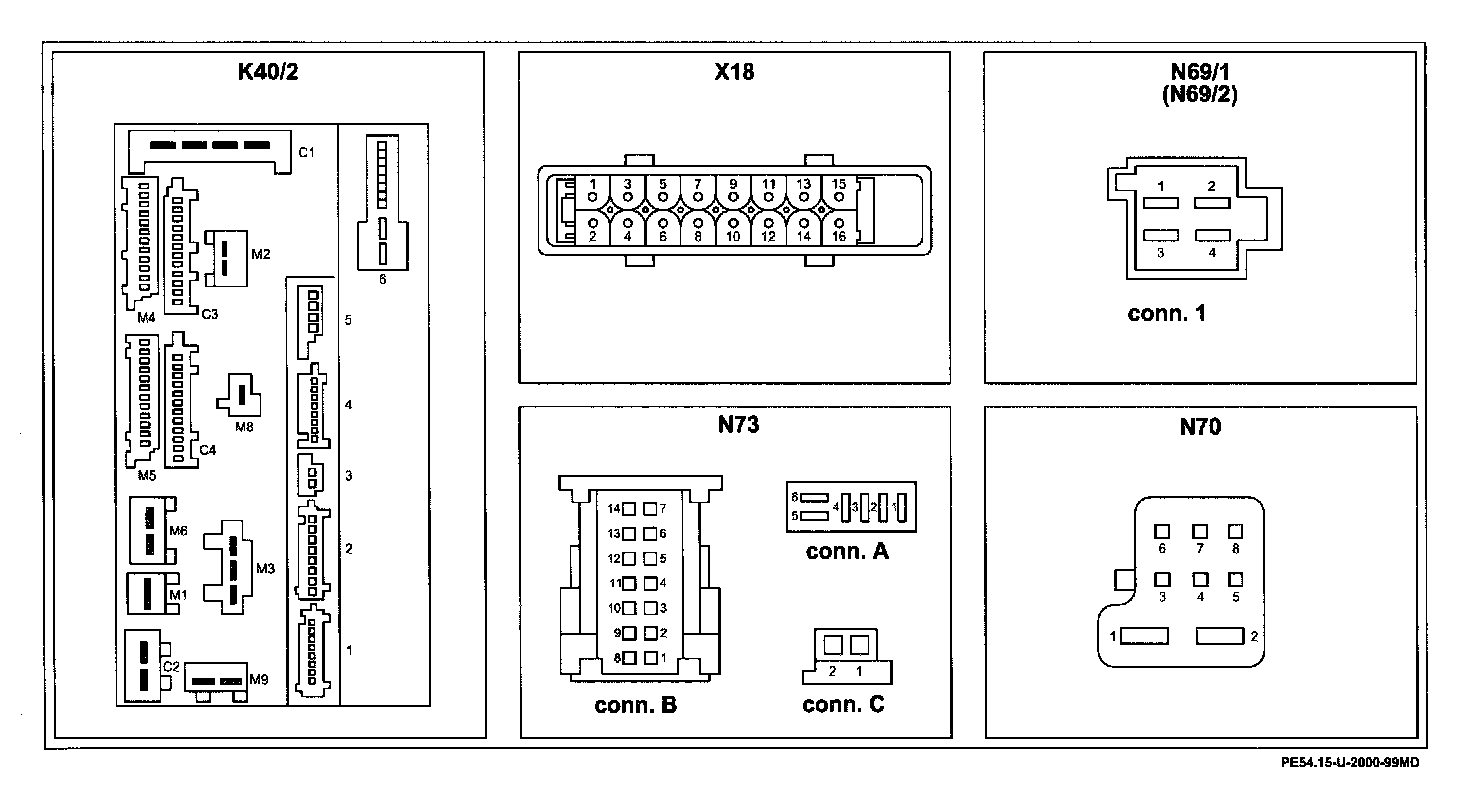

Connector Assignment:
