Seat Belt Systems: Testing and Inspection



AP91.40-P-9150M Check Seat Belts and Seat Belt Buckles For External Damage and Operation

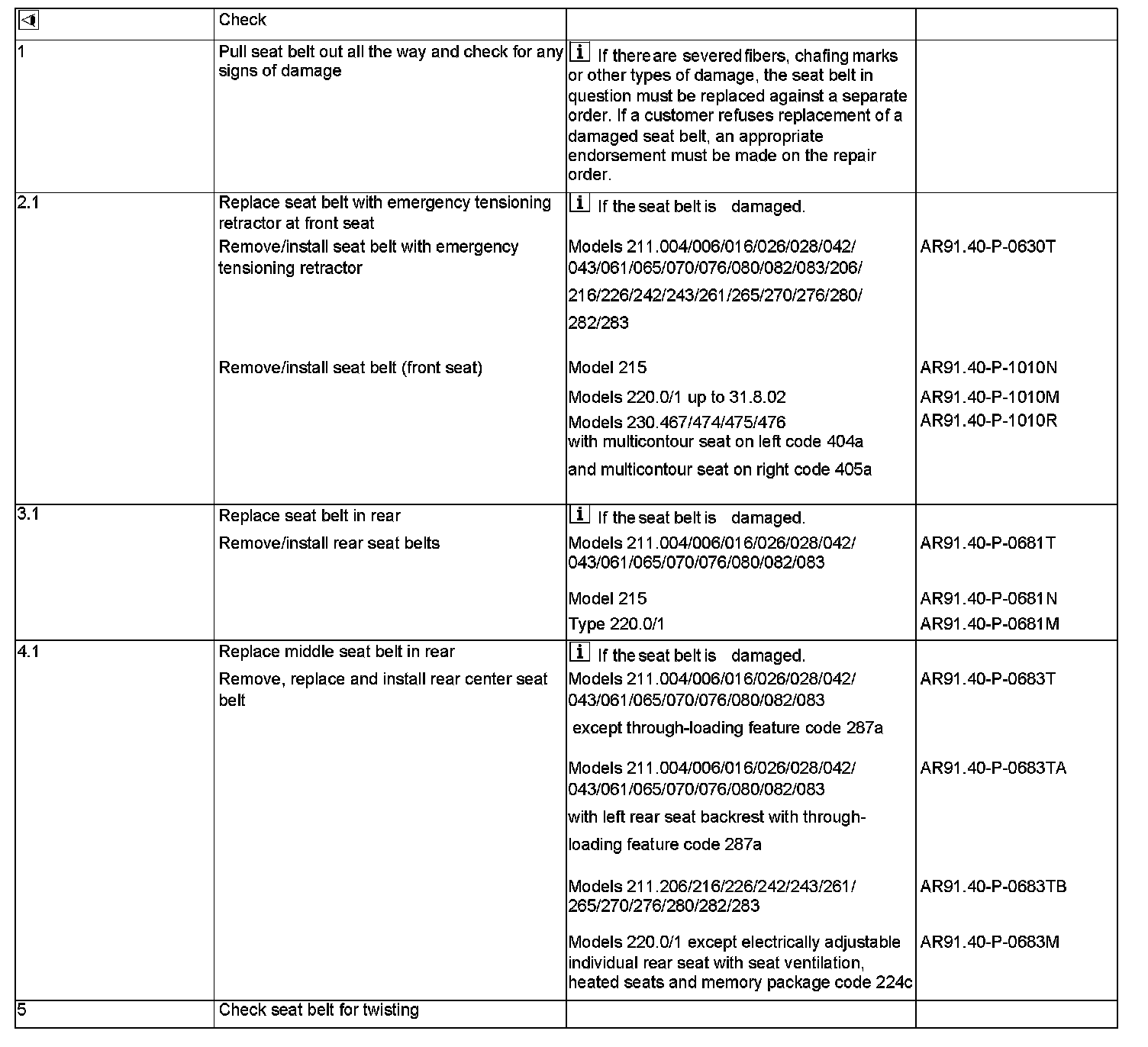

Part 1:

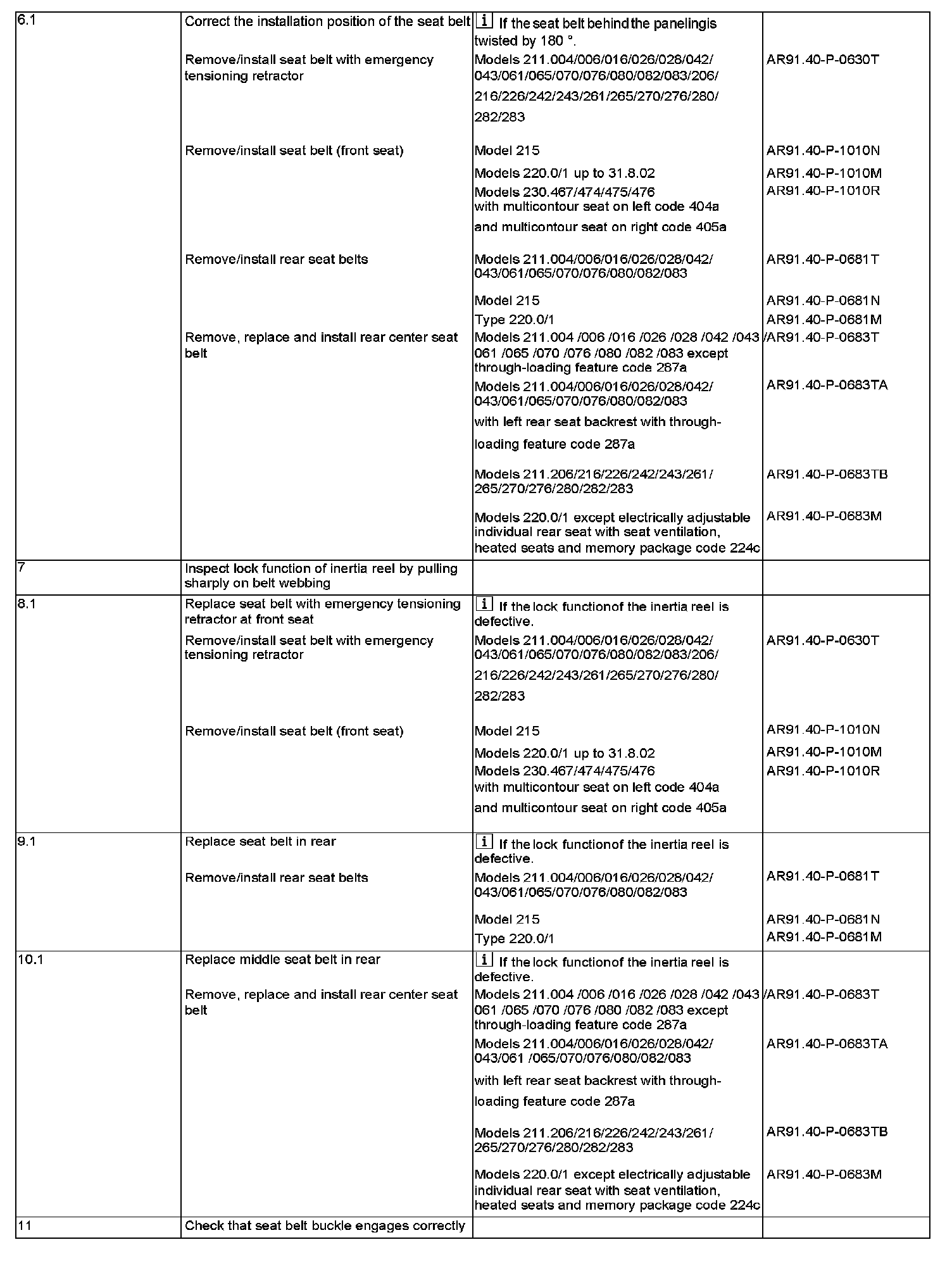

Part 2:

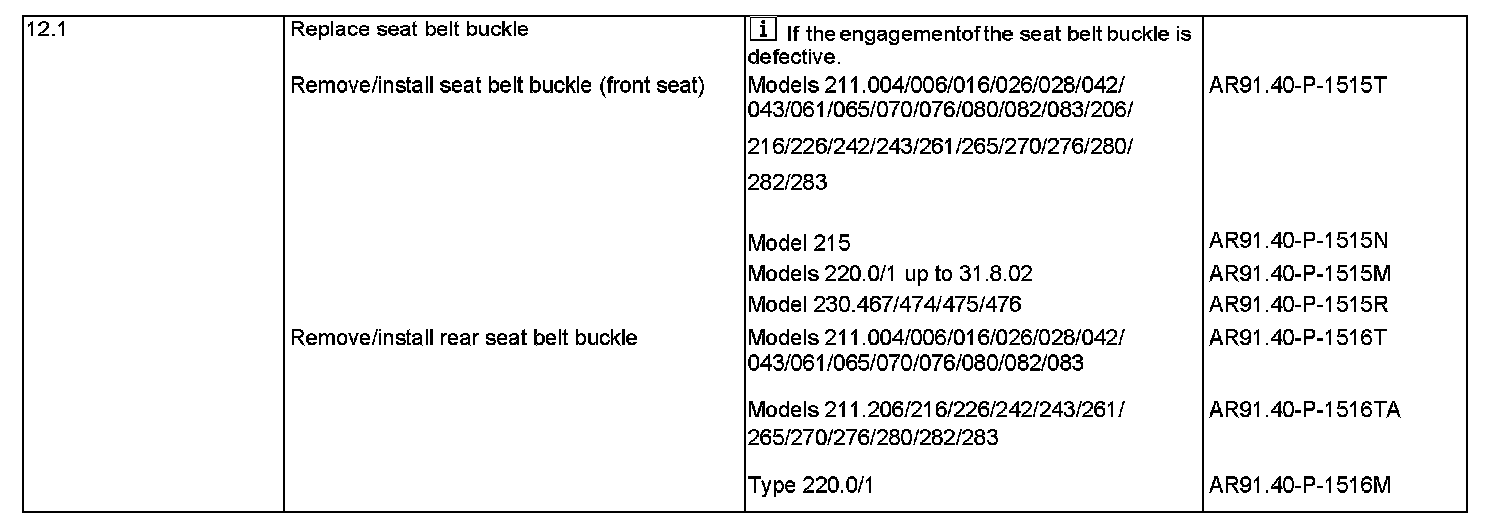

Part 3:
