Communications Platform -Tele Aid DTC Codes
Date: October 9, 2002Order No.: P-B-82.95/206
Supersedes:
Group: 82
SUBJECT:
Models 211, Model Year 2003
Tele Aid DTC Codes
If you encounter instances of complaints of the Tele Aid not working on Model 211 vehicles, please check and verify the following before replacing any components.
Using DAS check the CTEL fault codes.
Should the following fault codes be present, please follow the procedure below.
DA00 - Fault present in control module CTEL
D631 - Component CTEL antenna or the lead has short circuit
D800 - Fault present in control module CTEL
D900 - Fault present in control module CTEL
1 - Select Erase all Telecommunication platform faults and read fault codes.
2 - Only the above codes are seen, the vehicle can be released.
3 - If any other codes are seen, please investigate.
Should the following code be seen, please replace the unit as this is a fault for a hardware problem in the module.
D000 - Control Unit Telecommunications is faulty

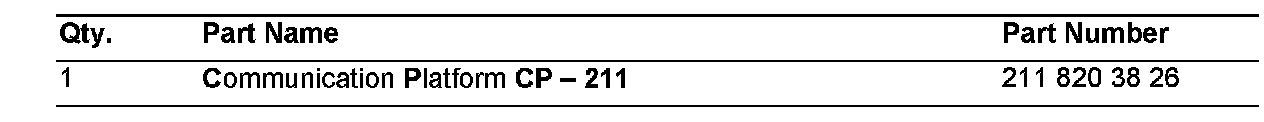

Parts Information

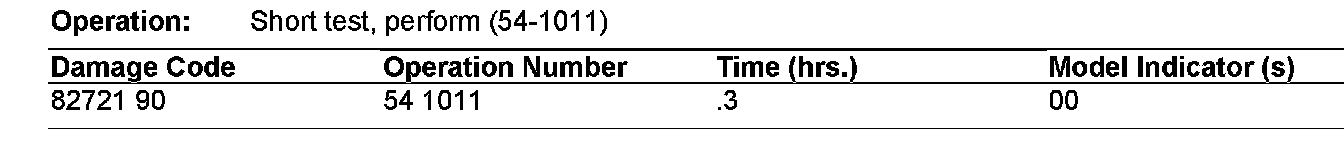

In Case of Warranty
