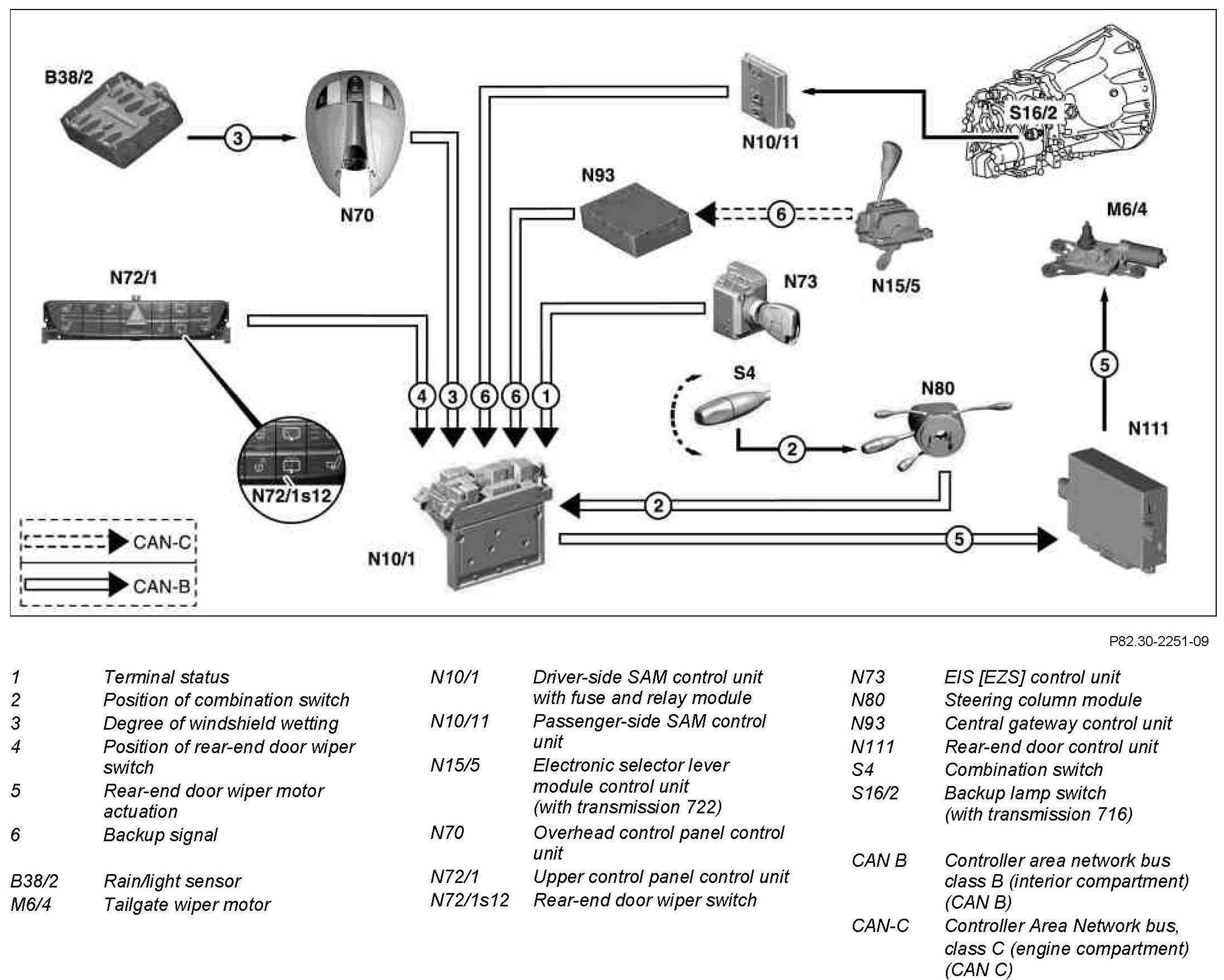

GF82.30-P-3002T Back-Up Wiping, Function

GF82.30-P-3002T Back-up Wiping, Function

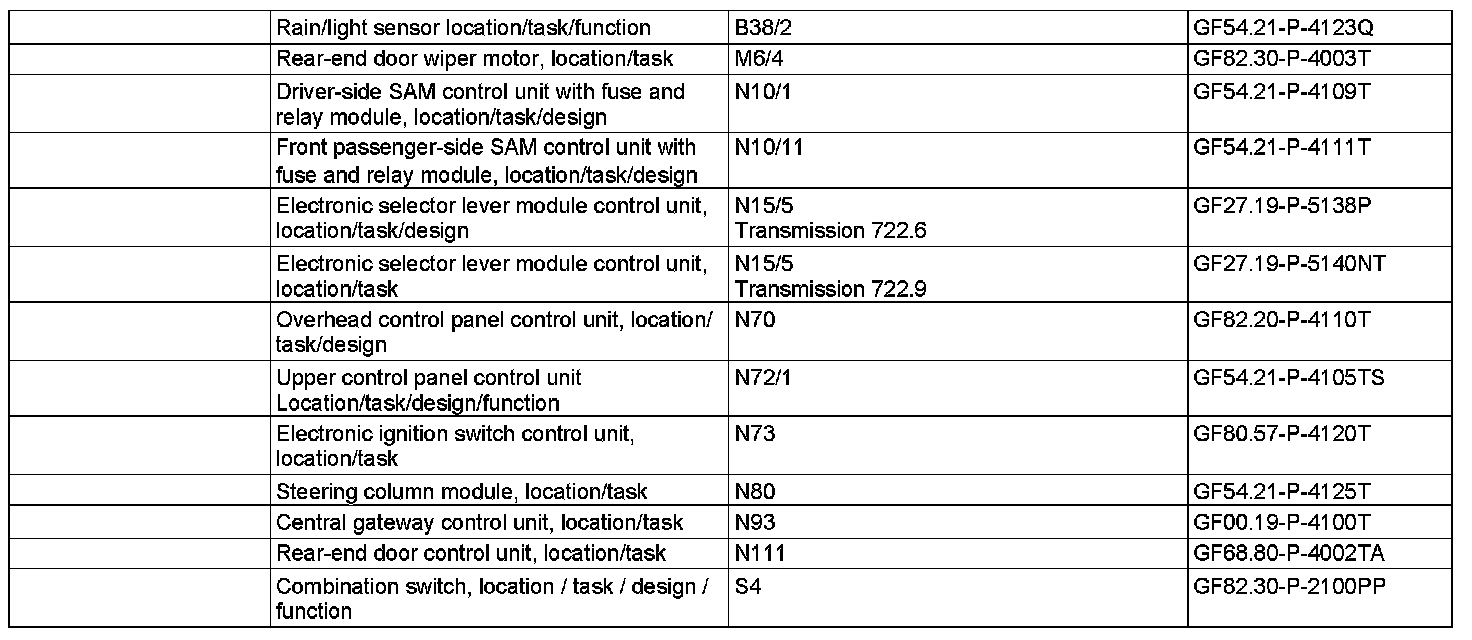

Component Identification:

Function requirements:
^ Circuit 15R ON
^ Windshield wiper in operation

Function
When engaging the reverse gear, the rear-end door wiper system is actuated depending on the position of the rear-end door wiper switch and the combination switch:

Rear-end door wiper switch not pressed:
^ Intermittent wipe with an intermission rate of 5 s

Rear-end door wiper switch pressed:
^ Wiper control synchronously to front windshield wiper (Continuous wiping or rain sensor mode)

Switching off rear wiper system
The rear window back-up wiping function is switched off either if there is no more backup signal or if the front windshield wiper is switched off.
