Wiper Pivot: Service and Repair



AR67.20-P-5146TA Replace Cover On Rear Window Wiper Axle

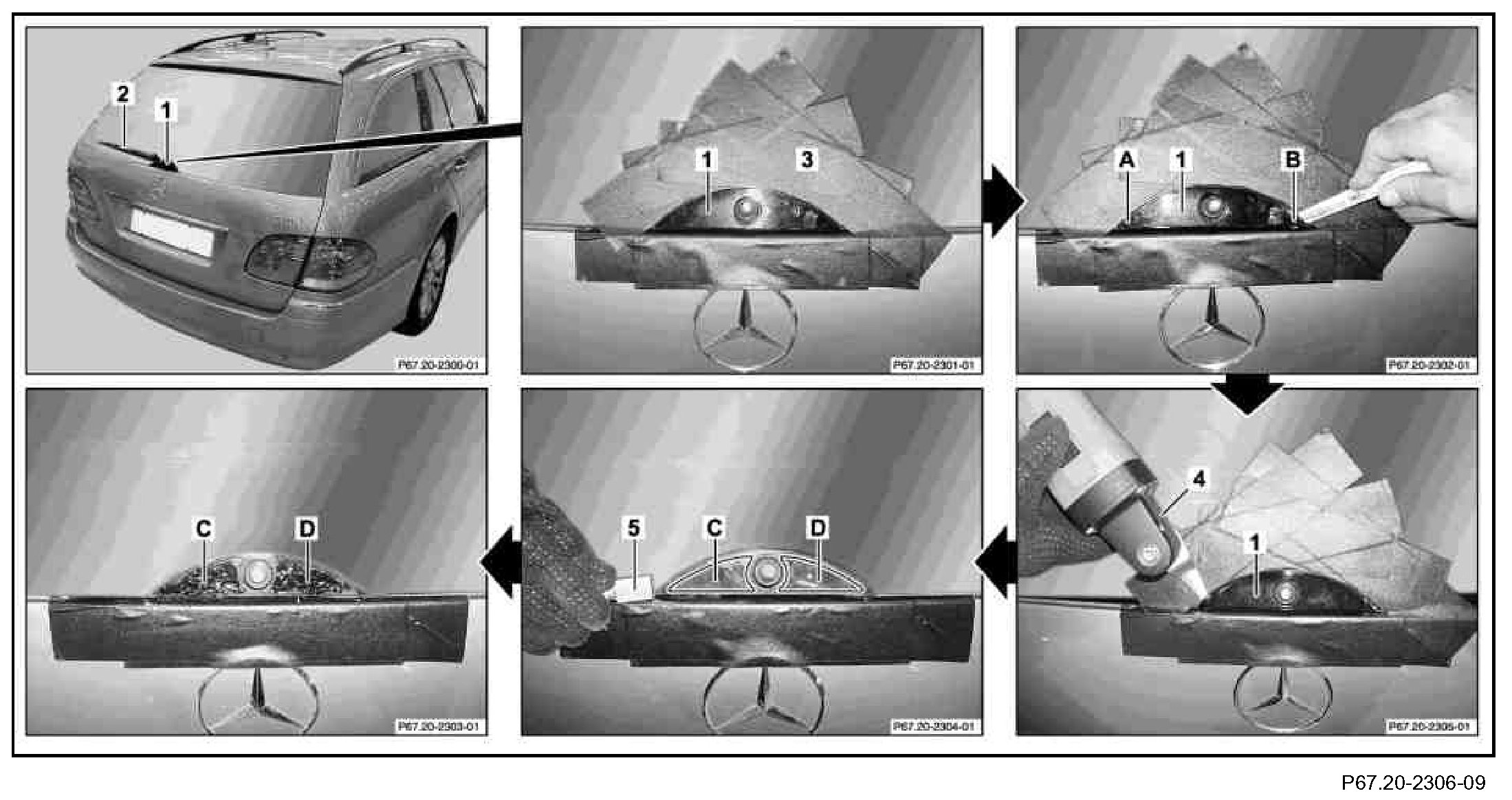

Component Identification:

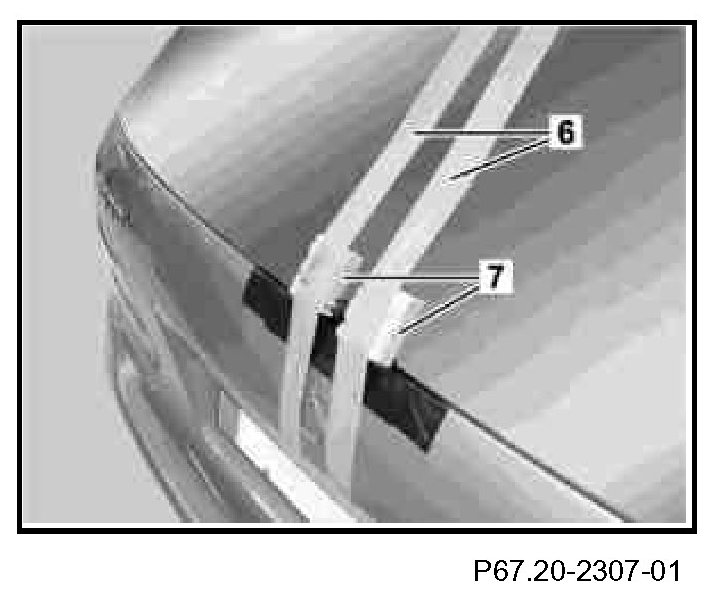

Component Identification:

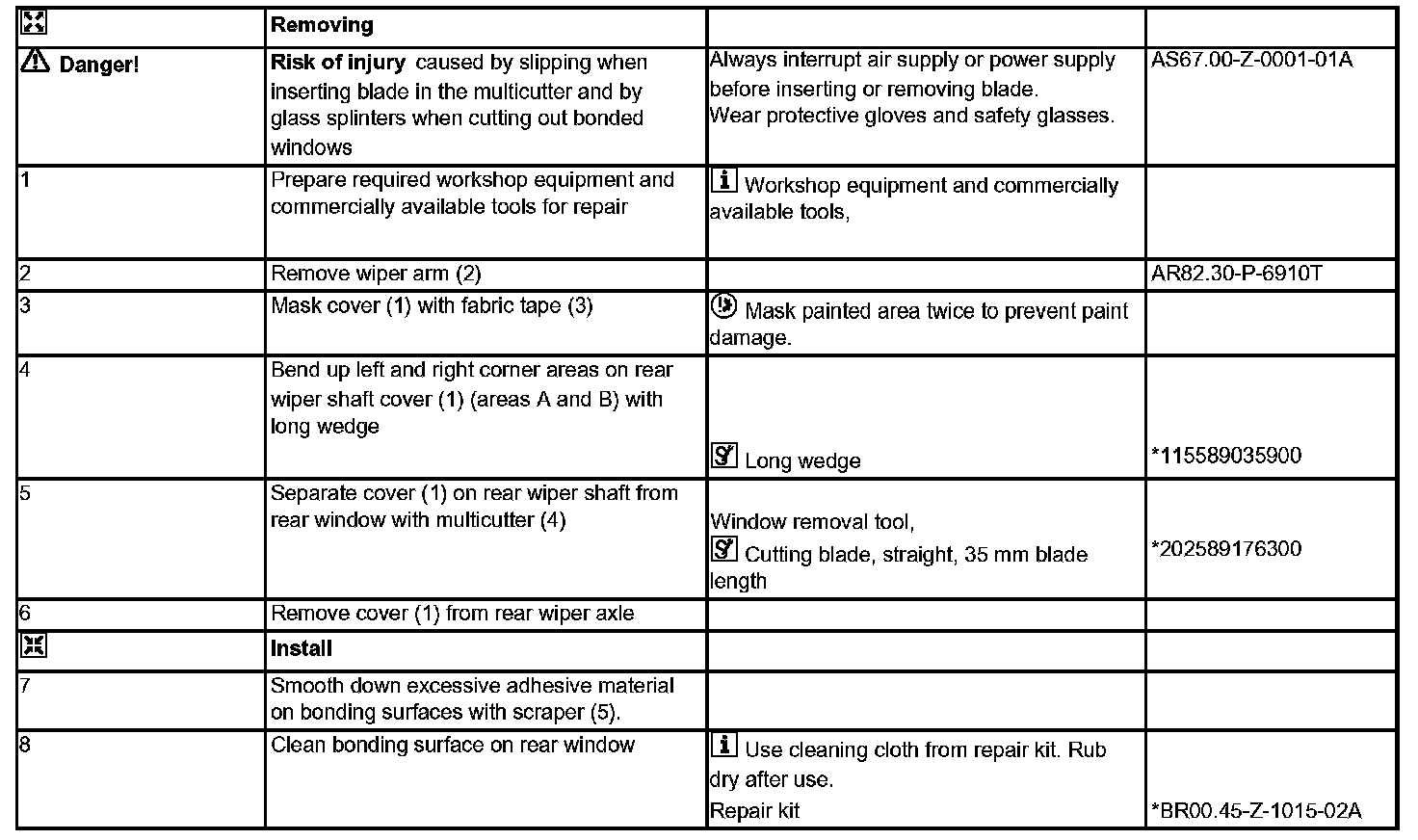

Steps 1 - 8:

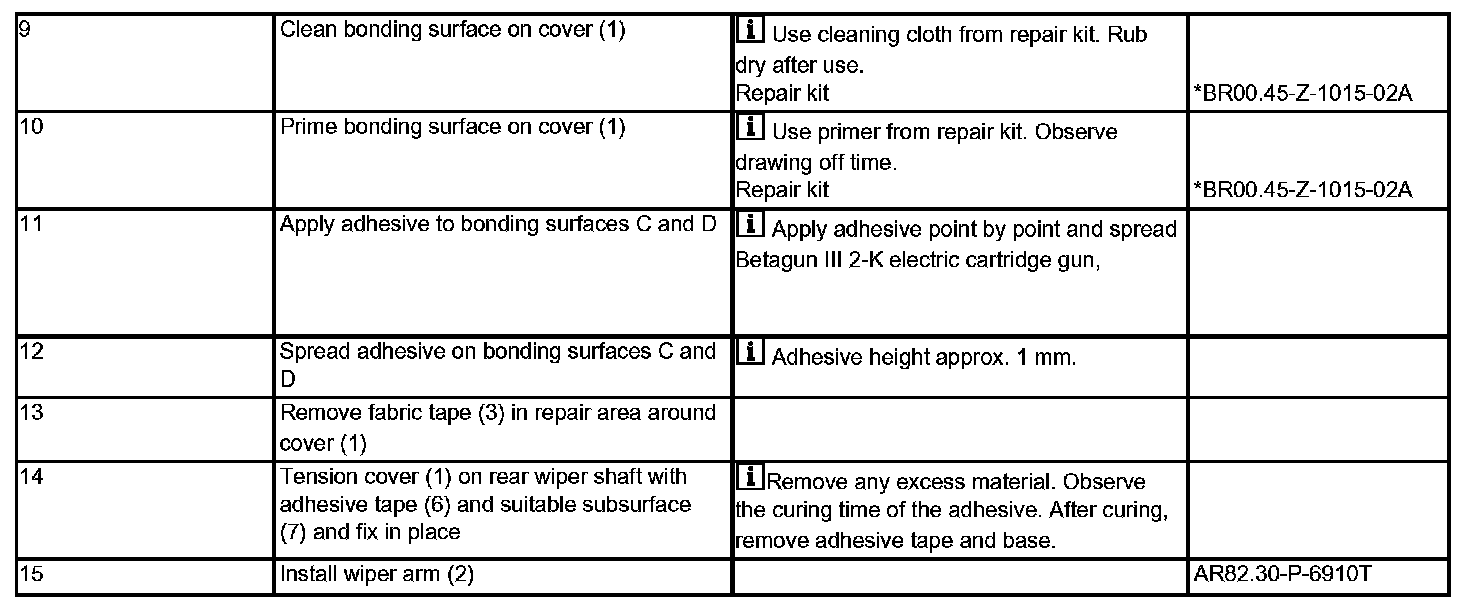

Steps 9 - 15:

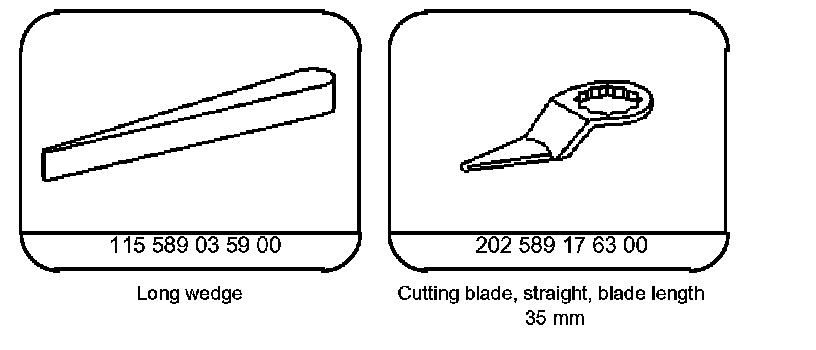

Special Tools:

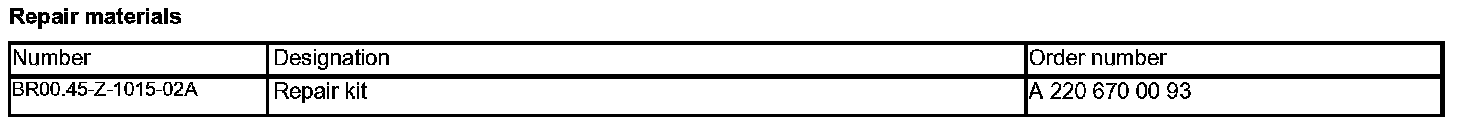

Repair Materials:
