Communications Platform - DTC D640 Set
Date: July 24, 2003Order No.: P-B-82.95/273
Supersedes:
Group: 82
SUBJECT:
Model 211.065/070/076
Model Year 2003
Communications Platform: DTC D640
If you receive customer reports in the above models of the below Diagnostic Trouble Code being set in the Communications Platform, follow the below procedure.
D640 - CAN bus to control unit CGW (CAN D): CAN reception timeout of data of control unit CGW
Step 1 - Connect SDS.
Step 2 - Enter the CGW settings menu by following the path:
1. Control units
2. Body
3. CGW - Central Gateway
4. Control unit adaptations
5. Read coding and change if necessary
Step 3 - Select setting "Telecommunications".
Step 4 - Verify that "Telematic services TELE AID or E-call" is set to PRESENT".
Step 5 - Ensure that battery voltage is at least 12V.
Step 6 - Enter the Communications Platform fault code menu by following the path:
1. Control units
2. Information and communication
3. Audio, video, navigation, and telematics
4. CTEL - Control unit Telecommunication
5. Fault codes
Step 7 - Select Erase fault codes, perform self-test, and then read out fault codes"
Step 8 - If D640 is NOT set, or status is "Stored", then Communications Platform is OK. If D640 status is "Current and stored", contact EDAC (800-997-8228) for authorization of CP replacement.

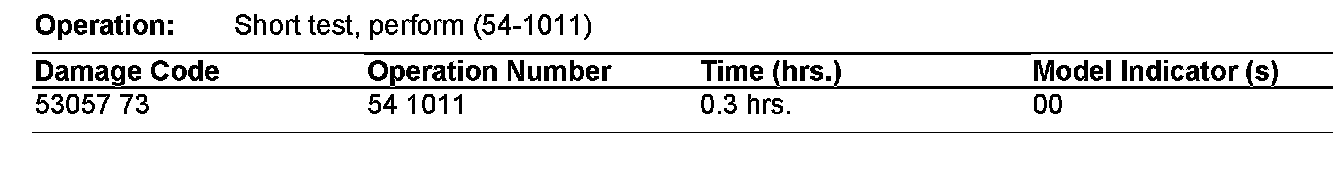

In Case of Warranty
