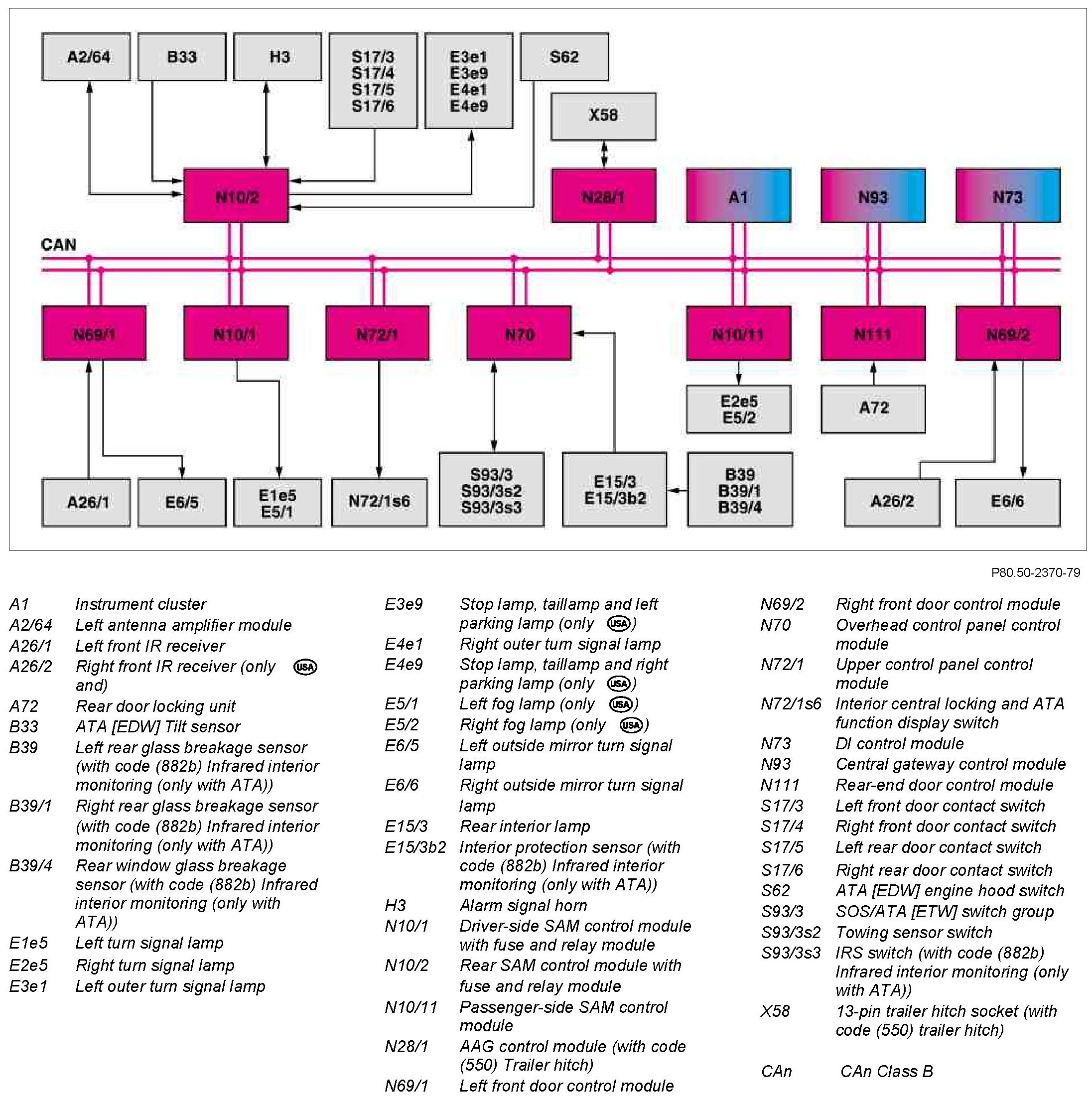

GF80.50-P-0001-01TA Anti-Theft Alarm System (ATA), Block Diagram



GF80.50-P-0001-01TA Anti-Theft Alarm System (ATA), Block Diagram
- with CODE (551a) Anti-theft alarm system (ATA)


Component Identification:
