AN83.70-P-0001-03TA Retrofit Wiring Harness

AN83.70-P-0001-03TA Retrofit Wiring Harness
- 211.265 1#
- with CODE (354) CTEL antenna (GSM 900 and 1800 MHZ)
- with CODE (380) Preinstallation for MB phone "CTEL", complete
- with CODE (381) MB phone "Standard" in console on right side of dome

Component Identification:

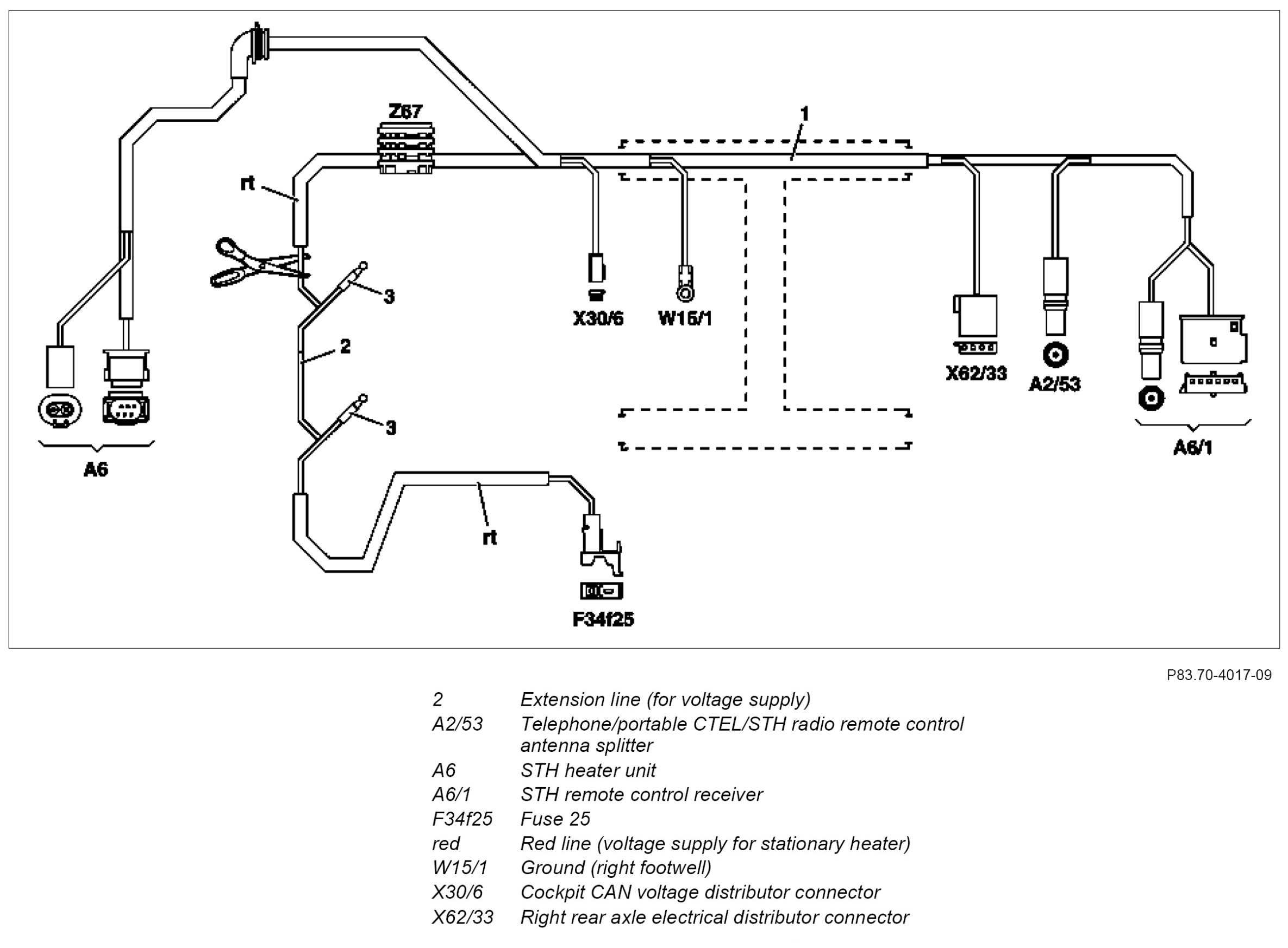

1. Modify stationary heater wiring harness (1) as per picture.
2. Cut branch-off line with red line (rt) from stationary heater wiring harness (1) 100 mm after the stationary heater connector sleeve (Z67).
3. Strip both ends of the red line (rt) and extend using a 2 400 mm long, red line (2) with a diameter of 2.5 mm(2) via solder connector (3).
4. Route stationary heater wiring harness (1) along existing lines in the vehicle.

Component Identification:

5. Slit grommet (4) on the right of the firewall.

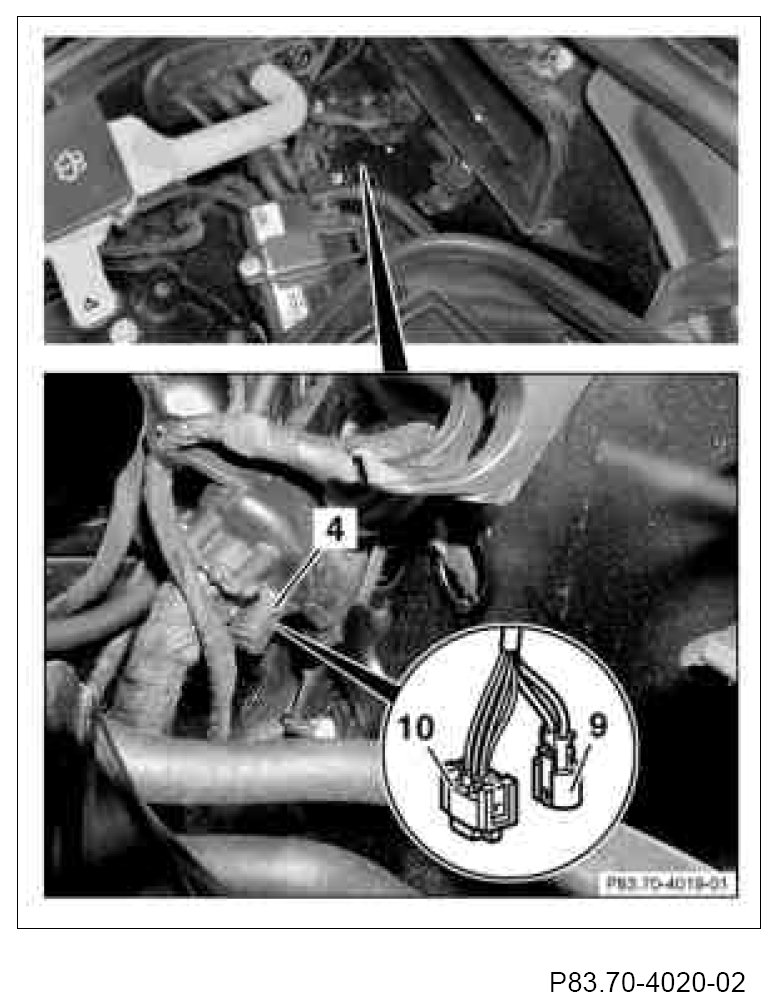

6. Route black, 2-pin coupling (9) (see magnified view) and black, 6-pin coupling (10) (see magnified view) of the stationary heater wiring harness from the right footwell through the grommet (4).

Route the stationary heater wiring harness through until the yellow marking aligns with the yellow markings on the on-board wiring harnesses.

7. Seal the stationary heater wiring harness at the opening for the grommet (4) with sealing compound.







8. Unclip the sealing strip (5) and place the stationary heater wiring harness (1) next to the in-vehicle wiring harness (Figure on left).

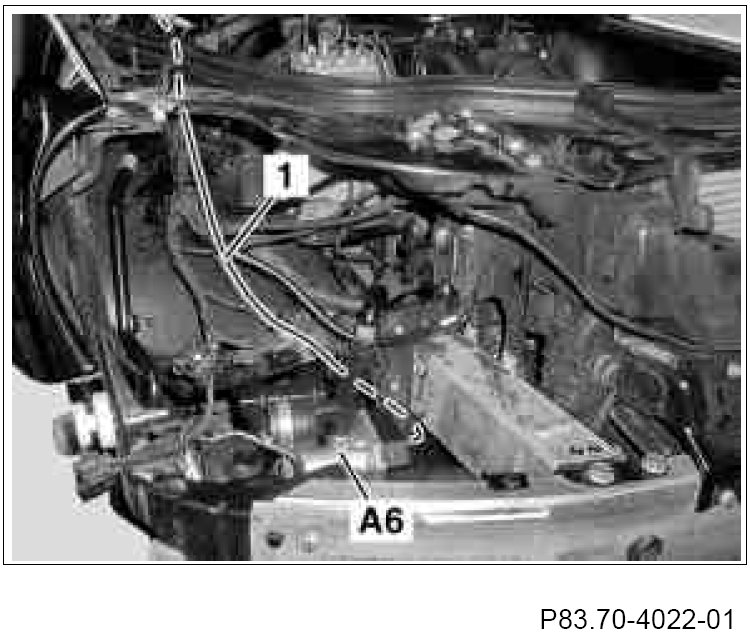

9. Route the stationary heater wiring harness (1) along existing lines from the grommet (4) further on the right side of the vehicle to the installation location of the STH heater unit (A6) (Figure, right).











10. Connect the stationary heater wiring harness (1) with black, 2-pin coupling (9) and black, 6-pin coupling (10) to the STH heater unit (A6).






11. Route stationary heater wiring harness (1) in the right footwell along existing lines in the vehicle and fix in position.
12. Fasten stationary heater connector sleeve (Z67), (see magnified view above) to existing lines with tie straps as per the figure.
13. Connect brown ground line (br) of the stationary heater wiring harness (1) to ground in the right footwell (W15/1) (see lower magnified view).
14. Route red branch-off line (rt) of the stationary heater wiring harness (1) along existing lines to the center console and fix in position.
15. Plug in branch-off line with 2-pin, black coupling of the stationary heater wiring harness (1) into any plug position of the cockpit voltage distributor (CAN) connector (X30/6).







16. Route red branch-off line (rt) of stationary heater wiring harness in the left footwell along existing lines to the interior fuse box (F34) and fix in position.
17. Plug the turquoise fuse carrier (tr) in plug position 25 of the interior fuse box (F34).

A 20 A fuse is assigned to the fuse carrier.

Component Identification:

F34f25 Fuse 25

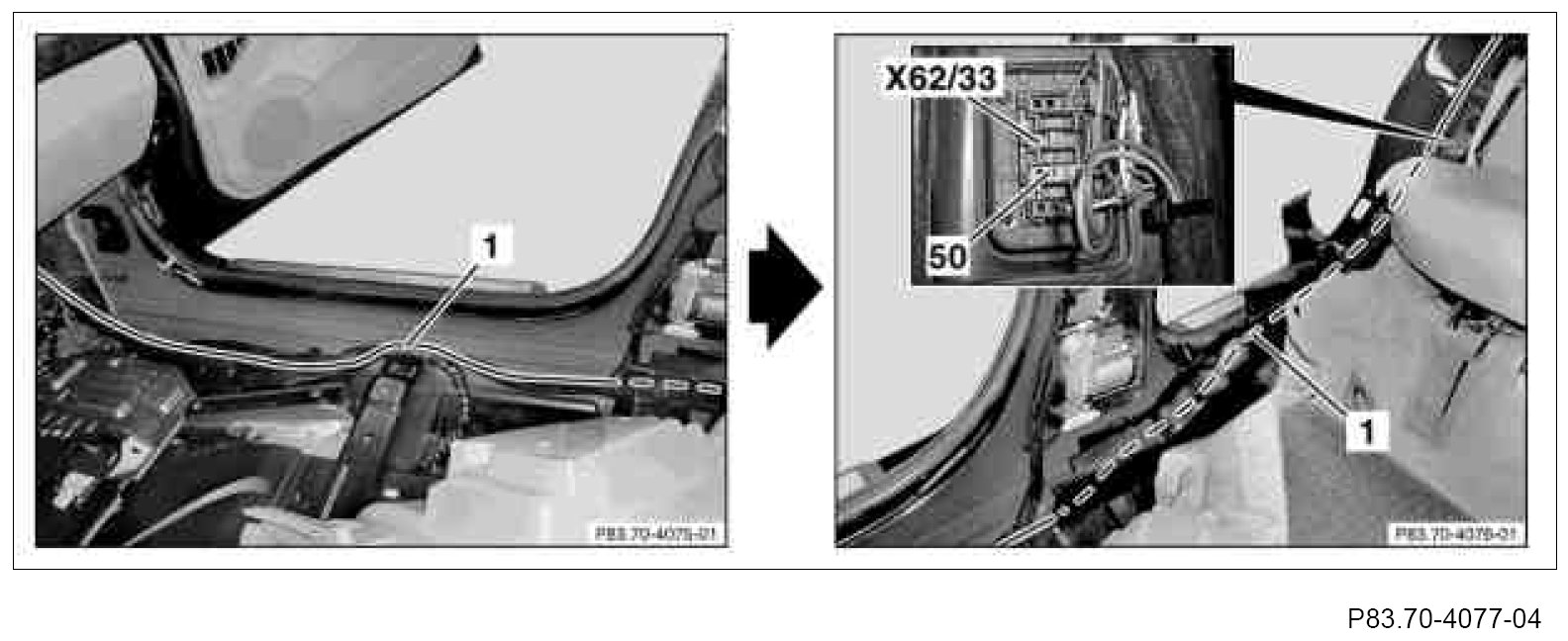

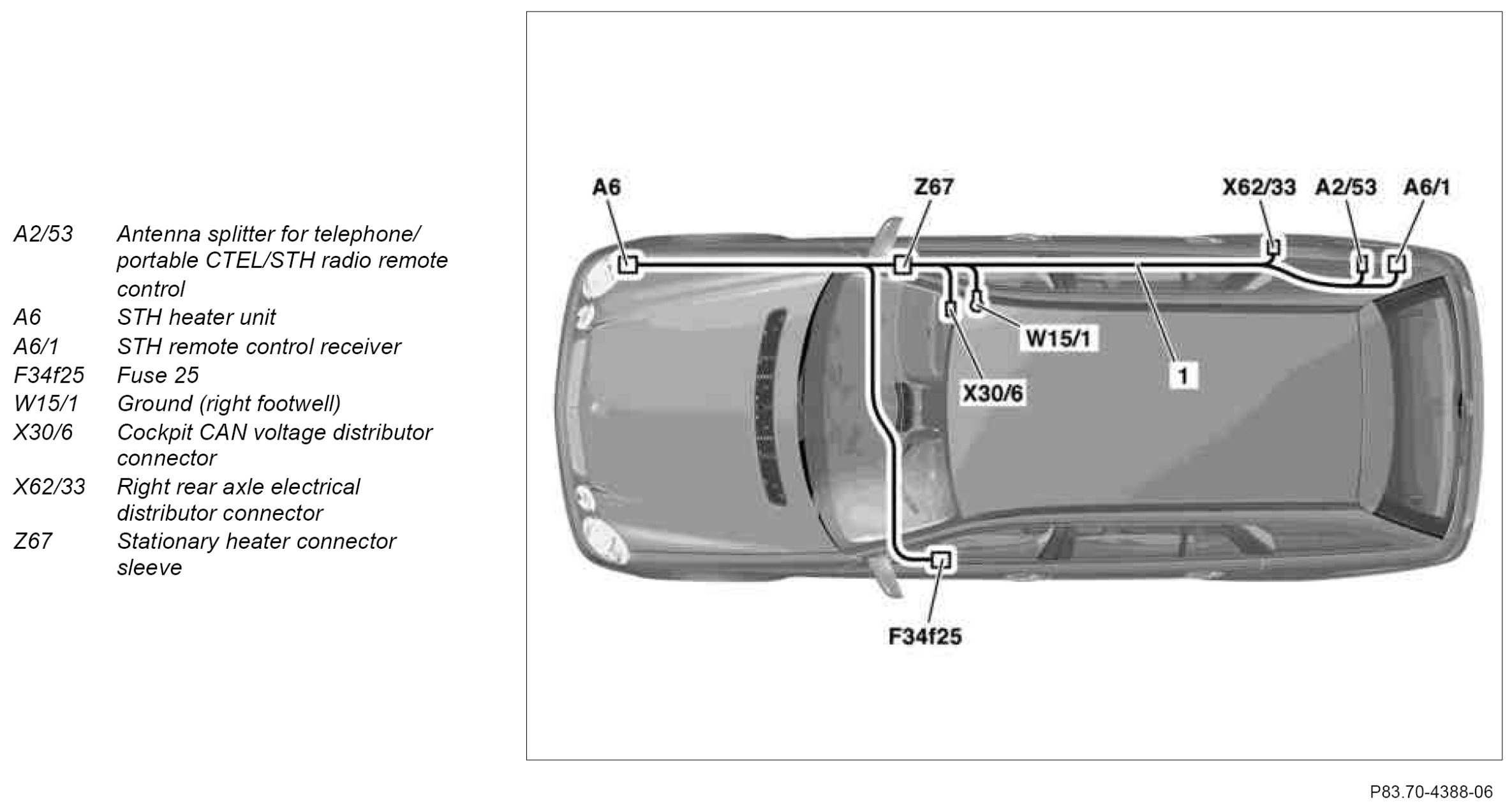

18. Route stationary heater wiring harness (1) along existing lines to the right rear wheelhouse to the right rear axle electrical distributor connector (X62/33, see magnified view) and fix in position.
19. Remove the orange-colored lip from the second plug position from below out of the rear axle electrical distributor connector, right (X62/33) (is no longer required).
20. Insert blue, 4-pin coupling (50) from the stationary heater wiring harness (1) into the rear axle electrical distributor connector, right (X62/33).







21. Route stationary heater wiring harness (1) along existing lines over the wheelhouse into the right of the luggage compartment and fix in position.
22. Disconnect telephone antenna connector (A2/49a1x1) (see magnified view).

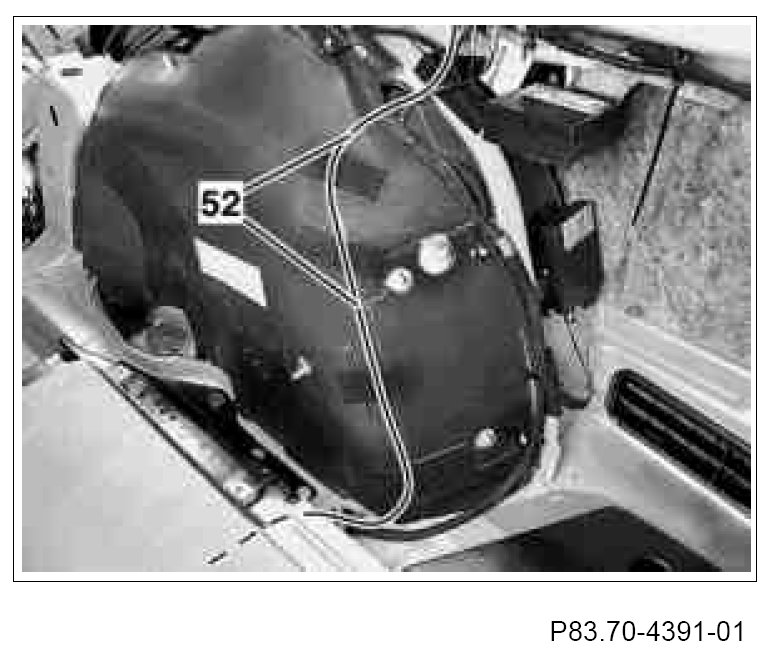

23. Fix on-board antenna line (52) coming from the telephone control unit with felt strips on the right wheelhouse as per picture.







24. Remove the red strip on the back of the telephone/portable CTEL/STH radio remote control antenna splitter (A2/53).
25. Clip telephone/portable CTEL/STH radio remote control antenna splitter (A2/53) into the existing bores at the side panel.
26. Press antenna splitter onto the side panel.

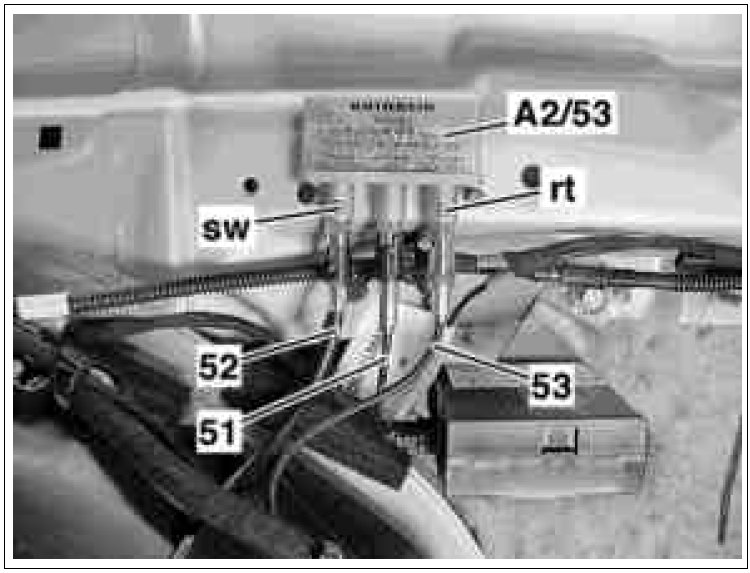

27. Connect the antenna line (51) which comes from the antenna to the central connection of the telephone/portable CTEL/STH radio remote control antenna splitter (A2/53).







28. Connect antenna line (52) which comes from the telephone control unit to the connection marked in black (sw) of the telephone/portable CTEL/STH radio remote control antenna splitter (A2/53).
29. Connect the antenna line (53) (from stationary heater wiring harness) to the connection marked with red of the telephone/ portable CTEL/STH radio remote control antenna splitter (A2/53).

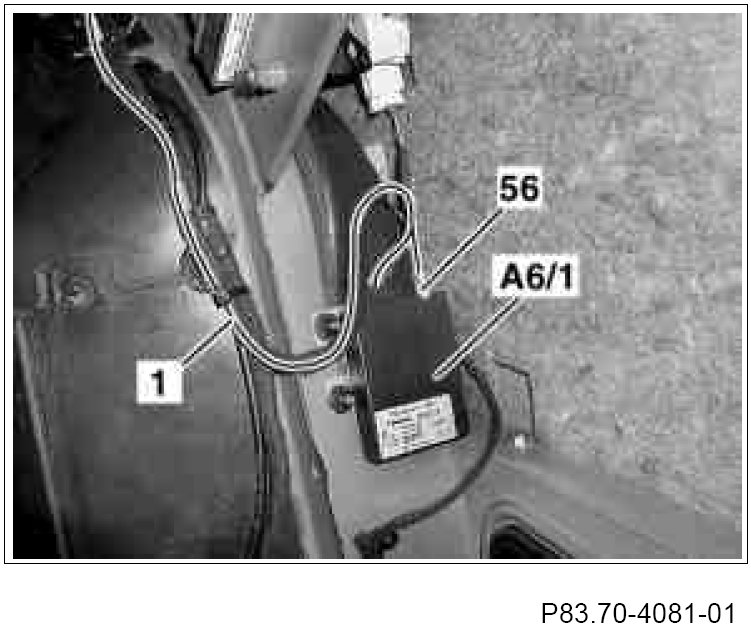

30. Push STH radio remote control receiver (A6/1) onto bracket (55) until it locks in position audibly (Figure on left).

The 6-pin, black coupling and the antenna line (56) of the stationary heater wiring harness (1) are not connected until the STH radio remote control receiver (A6/1) is programmed (Figure on right).

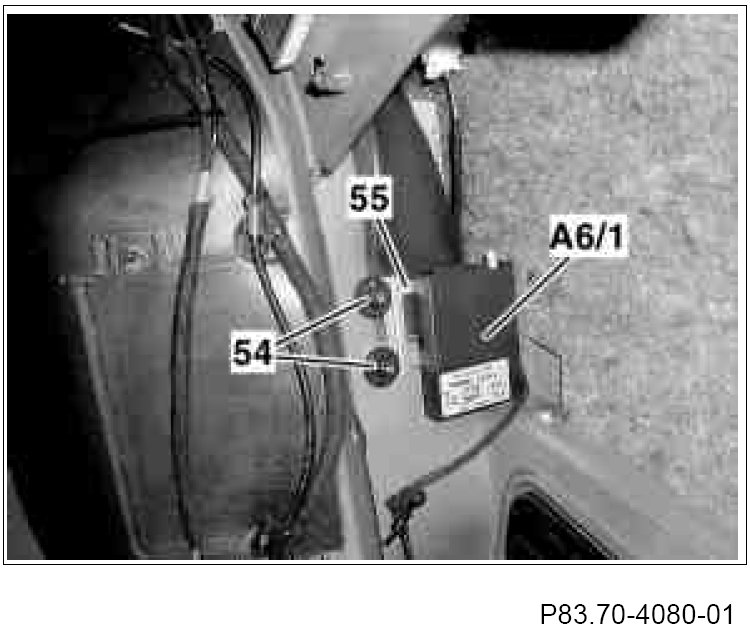

31. Mount bracket (55) for the STH radio remote control receiver (A6/1) on existing studs on the right wheelhouse and secure with two plastic nuts (54) (Figure on left).
32. Attach felt strip to panel edge.

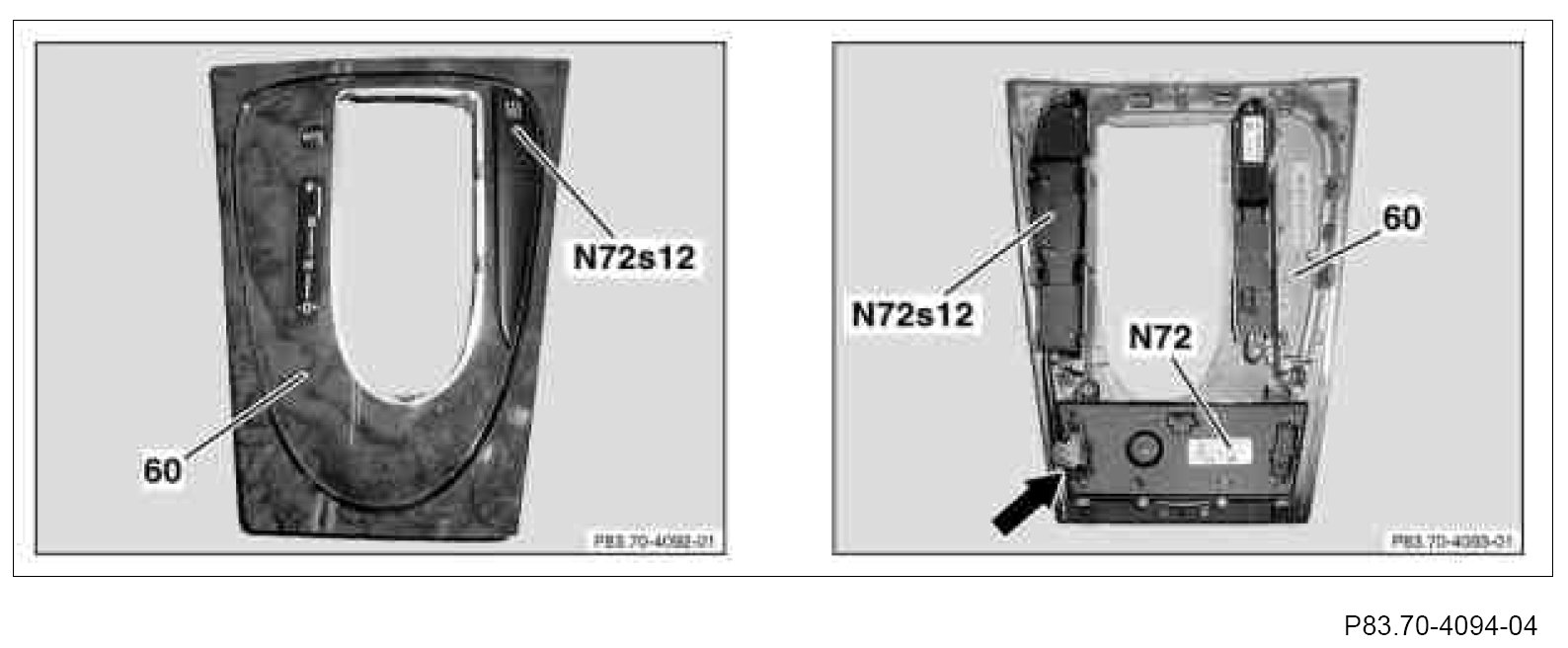

33. Clip STH switch (N72s12) into new cover of center console (60).
34. Connect black coupling of STH switch (N72s12) to lower control panel control unit (N72) (see arrow).







35. Plug the fuel metering pump wiring harness (61) into the second plug position from below of the rear axle electrical distributor connector, right (X62/33).

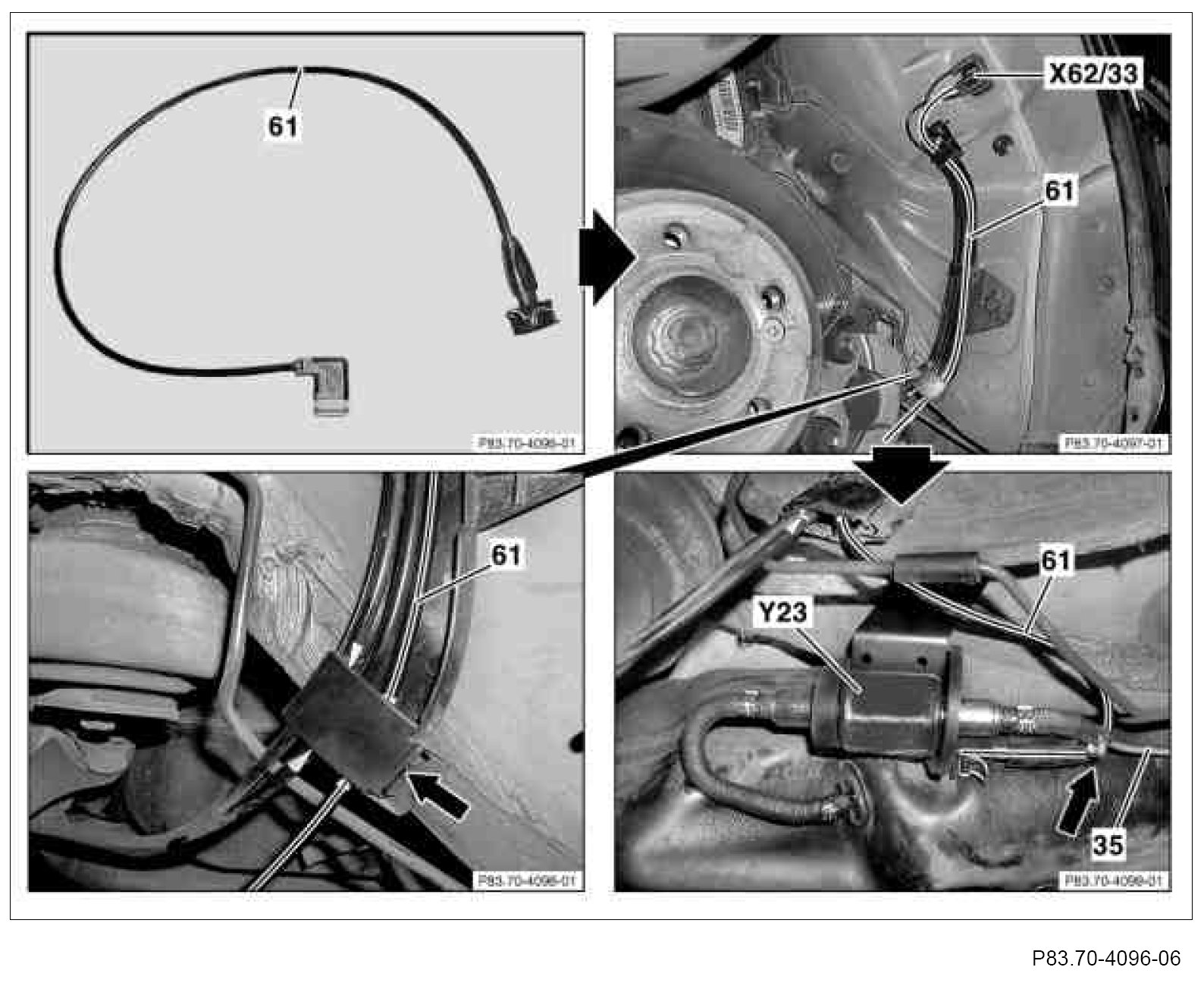

36. Route fuel metering pump wiring harness (61) in the cable duct to the STH fuel metering pump (Y23) as shown in the Figure.

The yellow arrows on the fuel metering pump wiring harness (61) must end at the cable duct cover (see arrow in Figure on bottom left).

37. Connect fuel metering pump wiring harness (61) to the STH fuel metering pump (Y23).

The fuel metering pump wiring harness (61) shall not be in contact with the fuel line (35) (see arrow in Figure on bottom right).
