AN83.70-P-0001TA Retrofit Stationary Heater



AN83.70-P-0001TA Retrofit Stationary Heater
- 211.265 up to 30.6.04

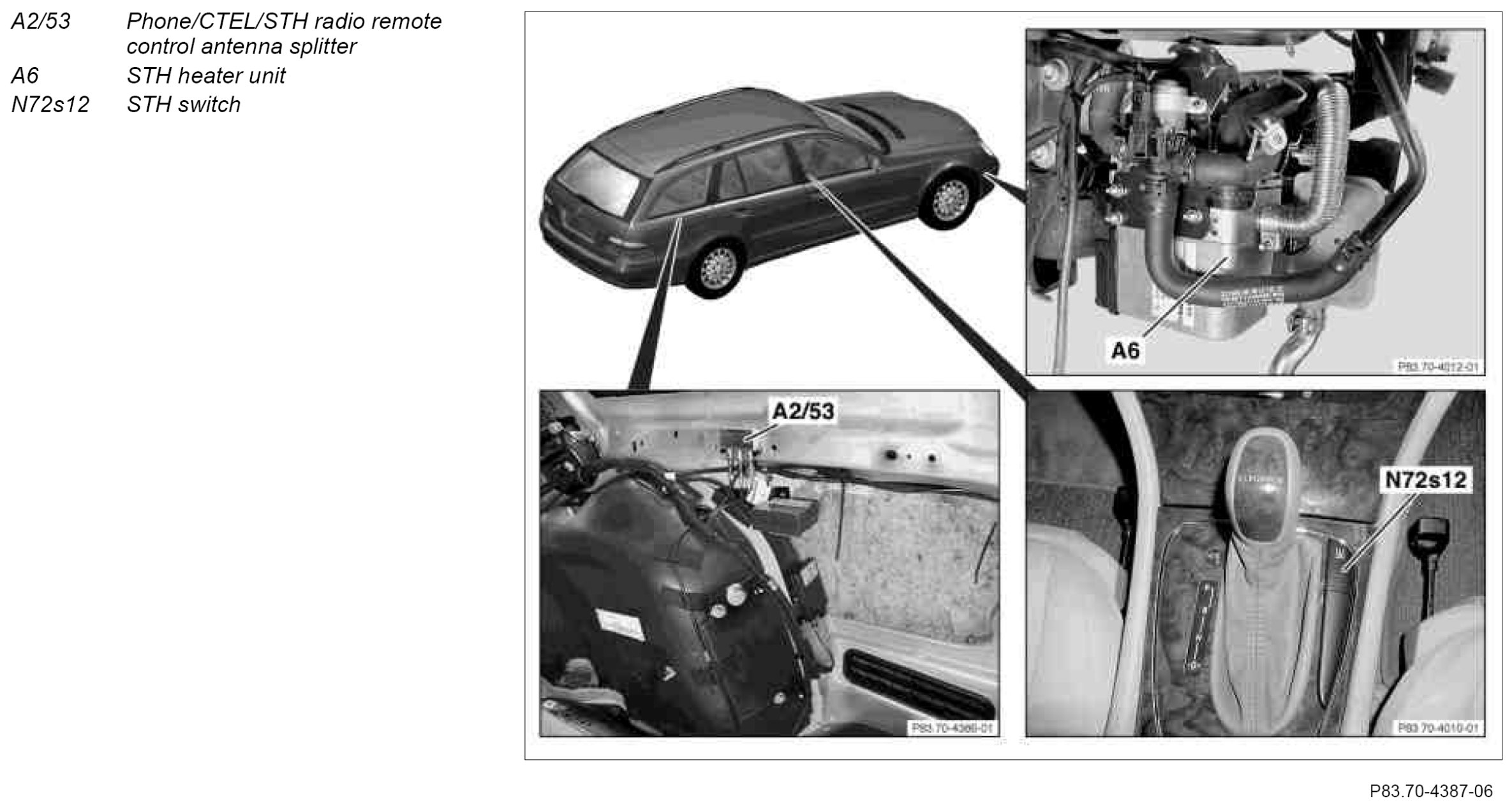

Component Identification:

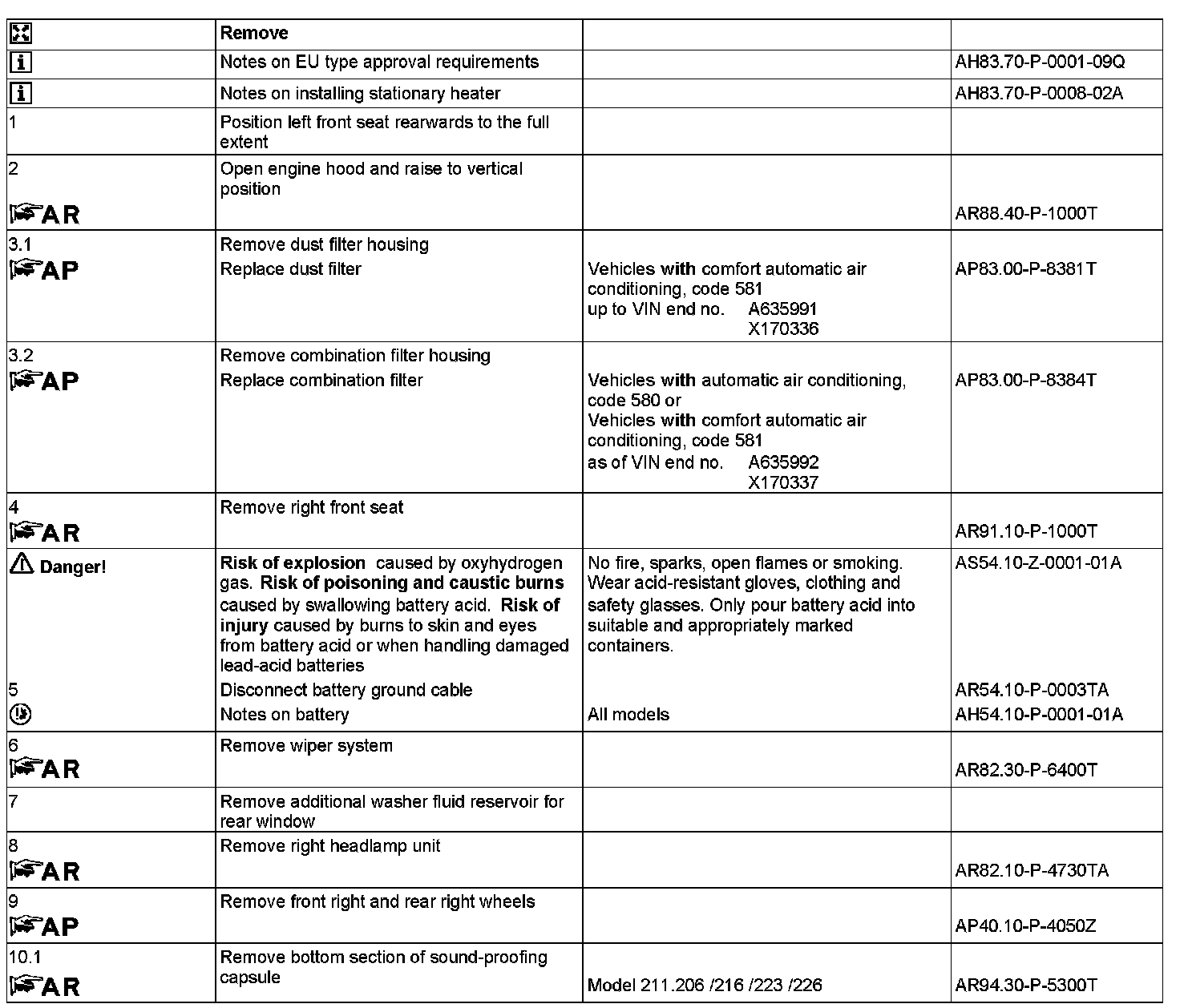

Steps 1-10.1:





Steps 10.2-27.1:

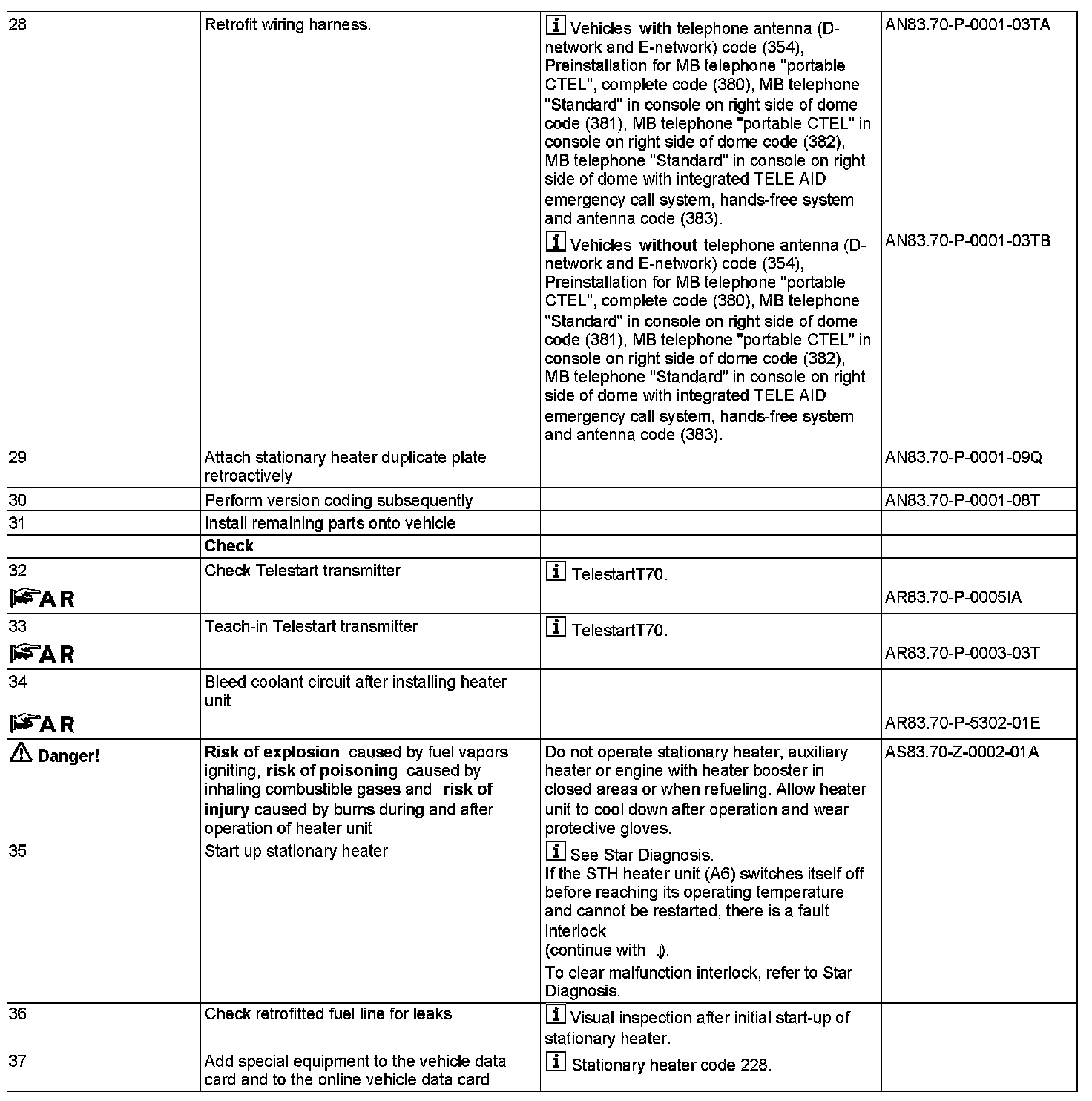

Steps 28-37:

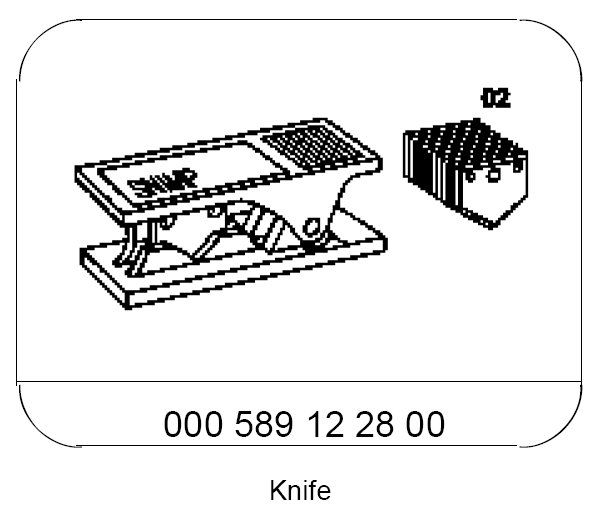

Special Tools:

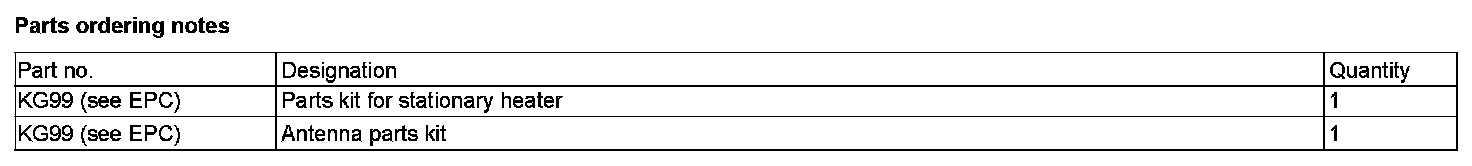

Parts ordering notes

Parts Ordering Notes:
