Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2003
>>
E 55 AMG Sedan (211.076) V8-5.5L SC (113.990)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Auxiliary Cabin Heater
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications
BA83.70-P-1000-01C Stationary Heater Unit
- with Thermo Top C

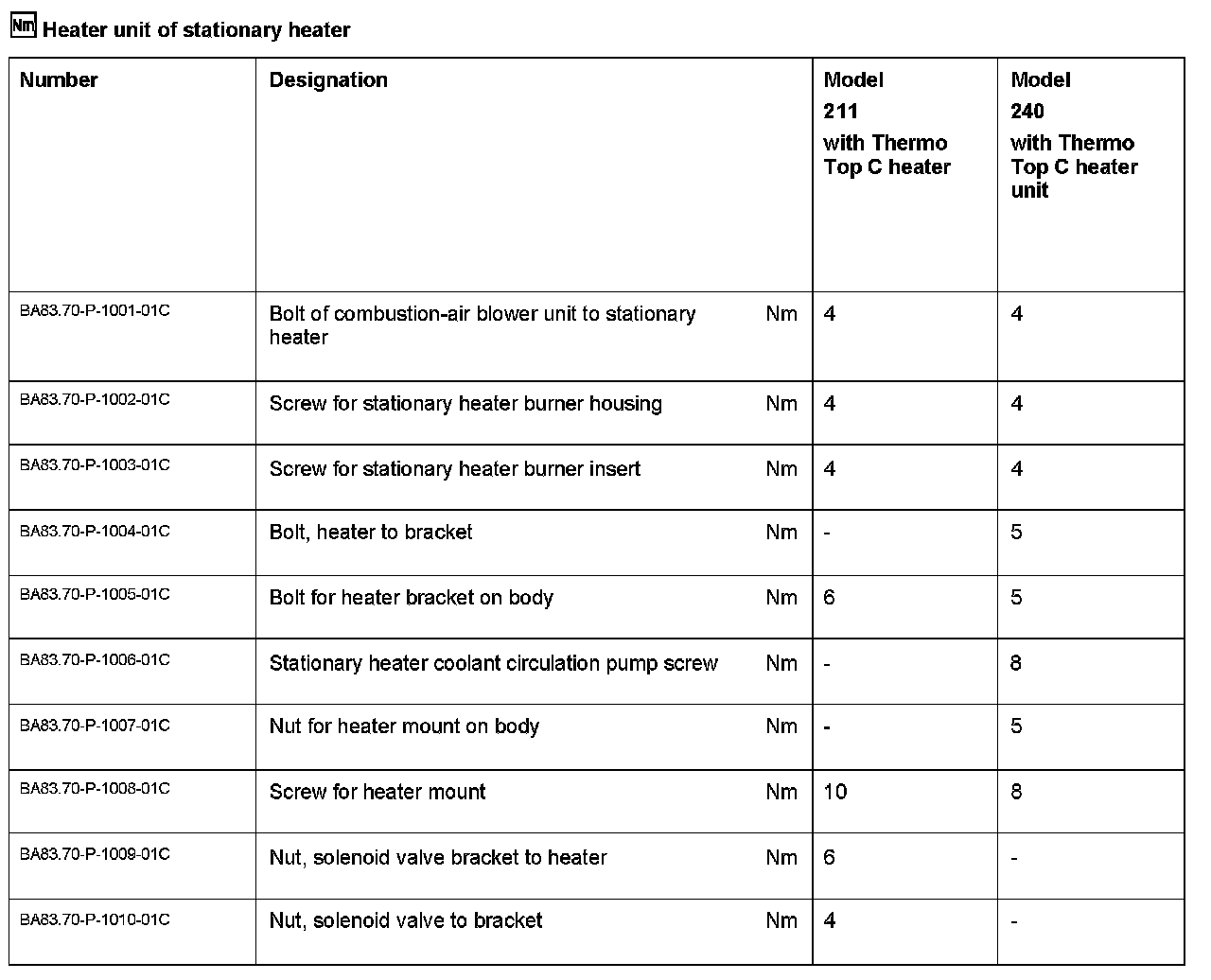

Heater unit of stationary heater
Heater Unit Of Stationary Heater:
