Cockpit Management (COMAND) PE82.85-U-2101SF (Part 1)

Cockpit Management (COMAND) PE82.85-U-2101SF (Part 1)
- with CODE (352) COMAND operating and display system
- control module A40/3

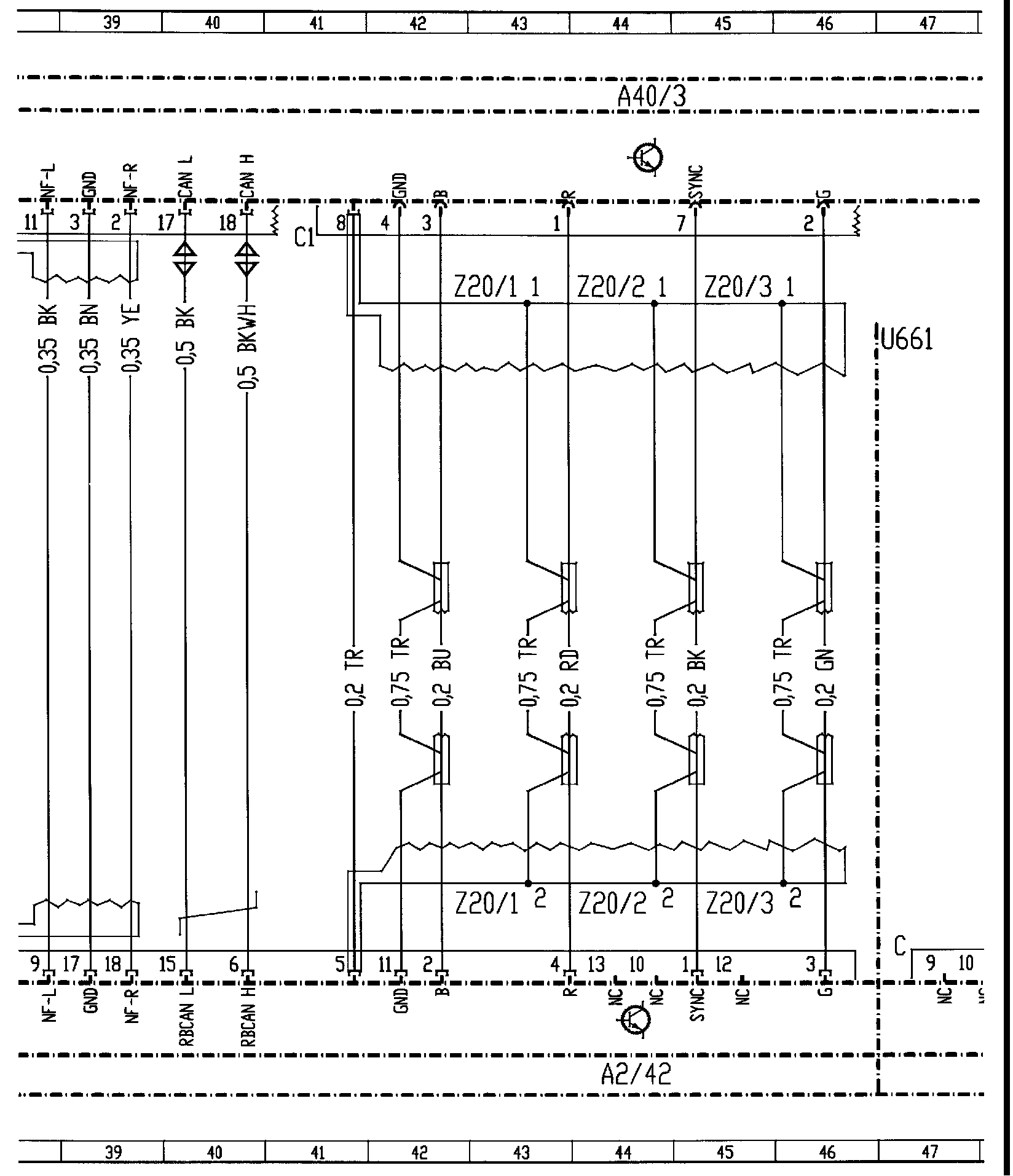

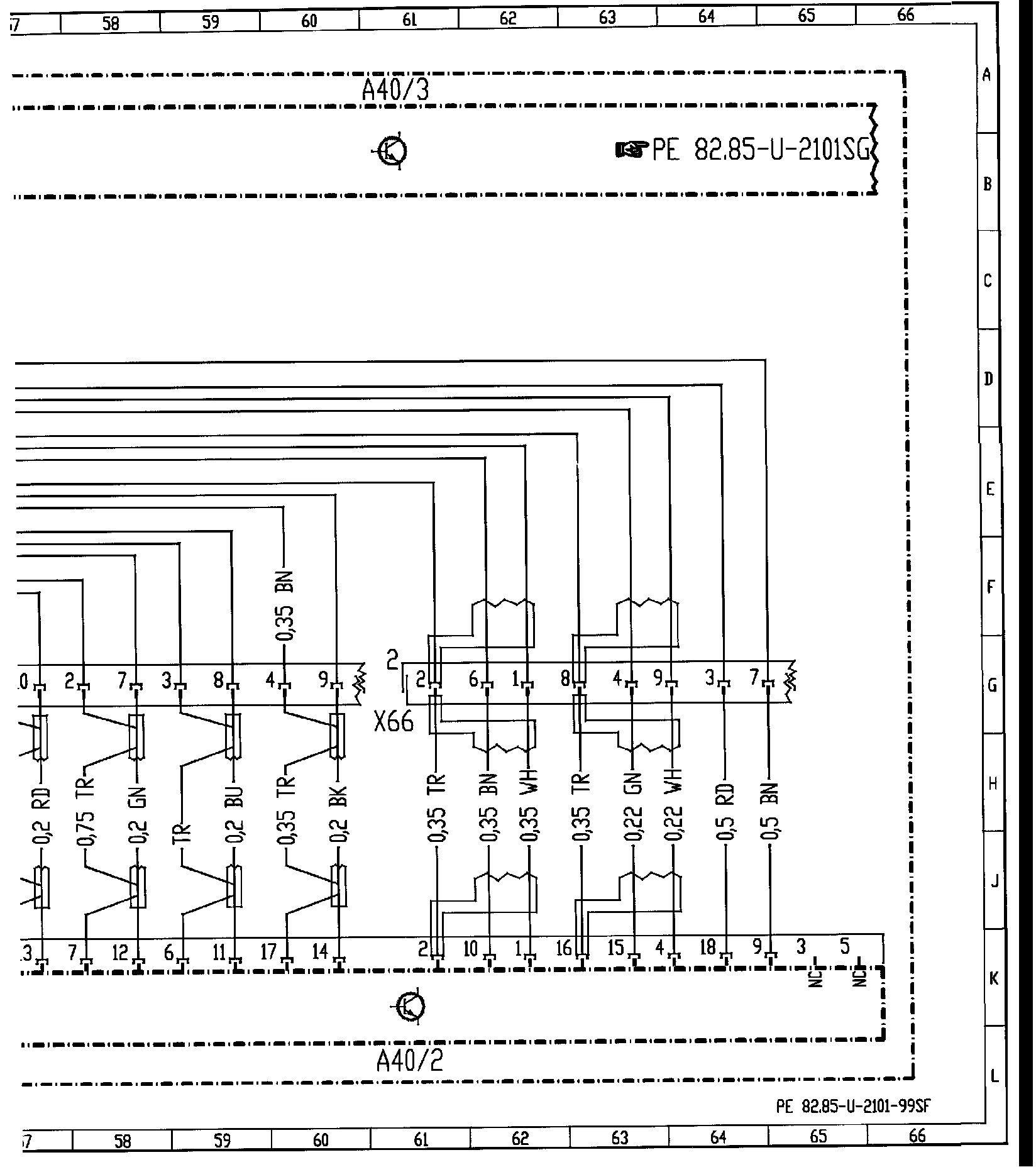

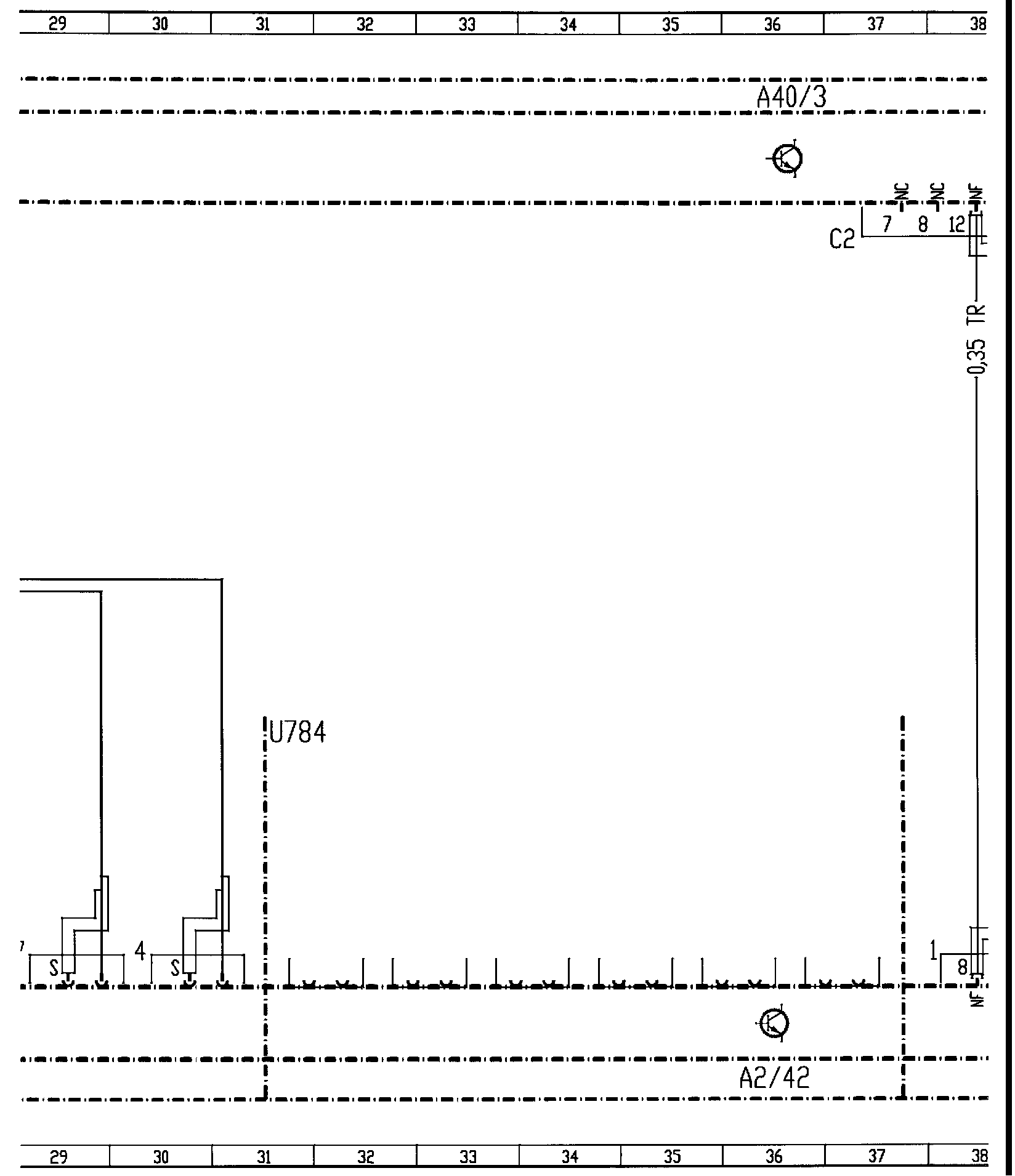

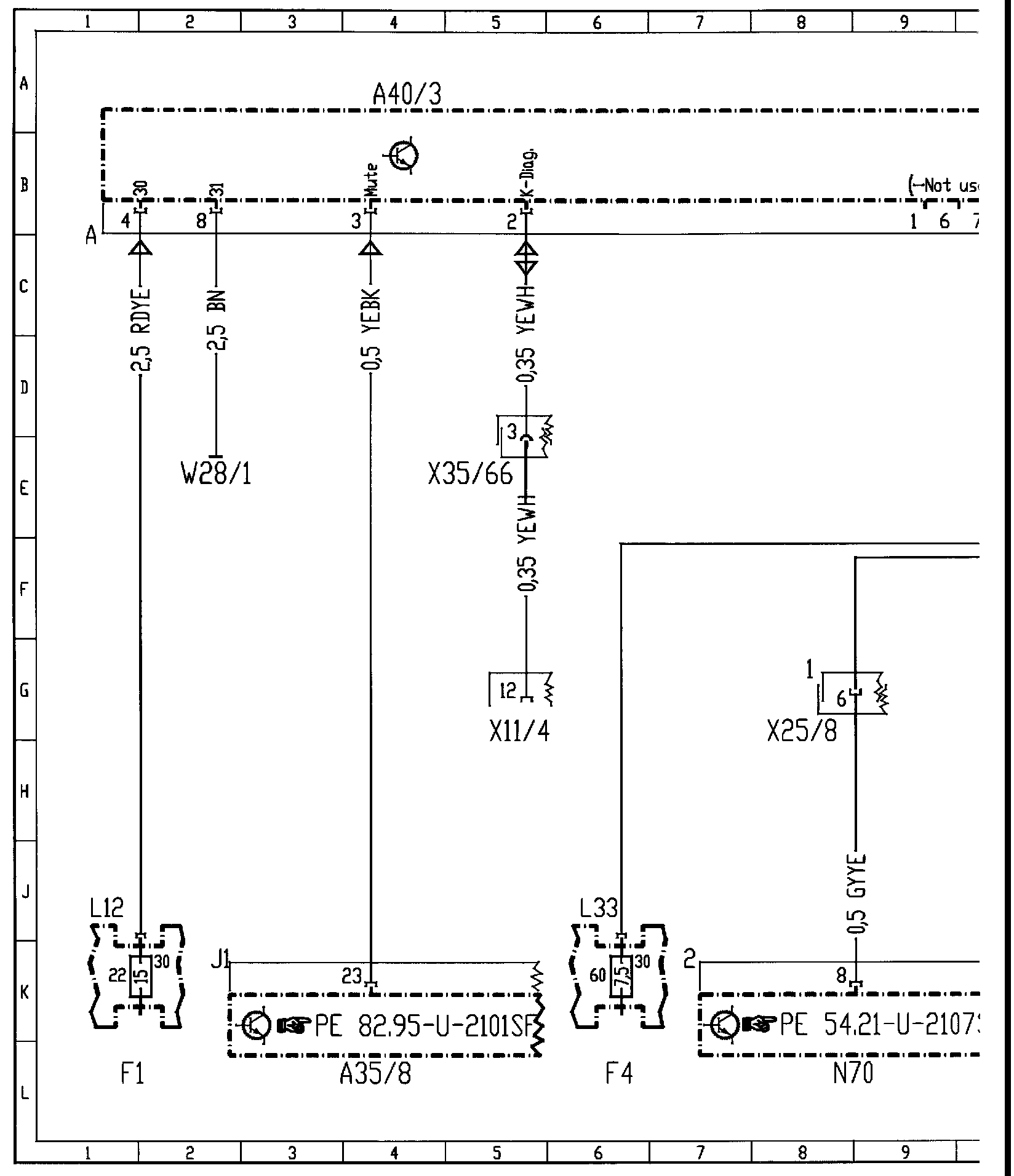

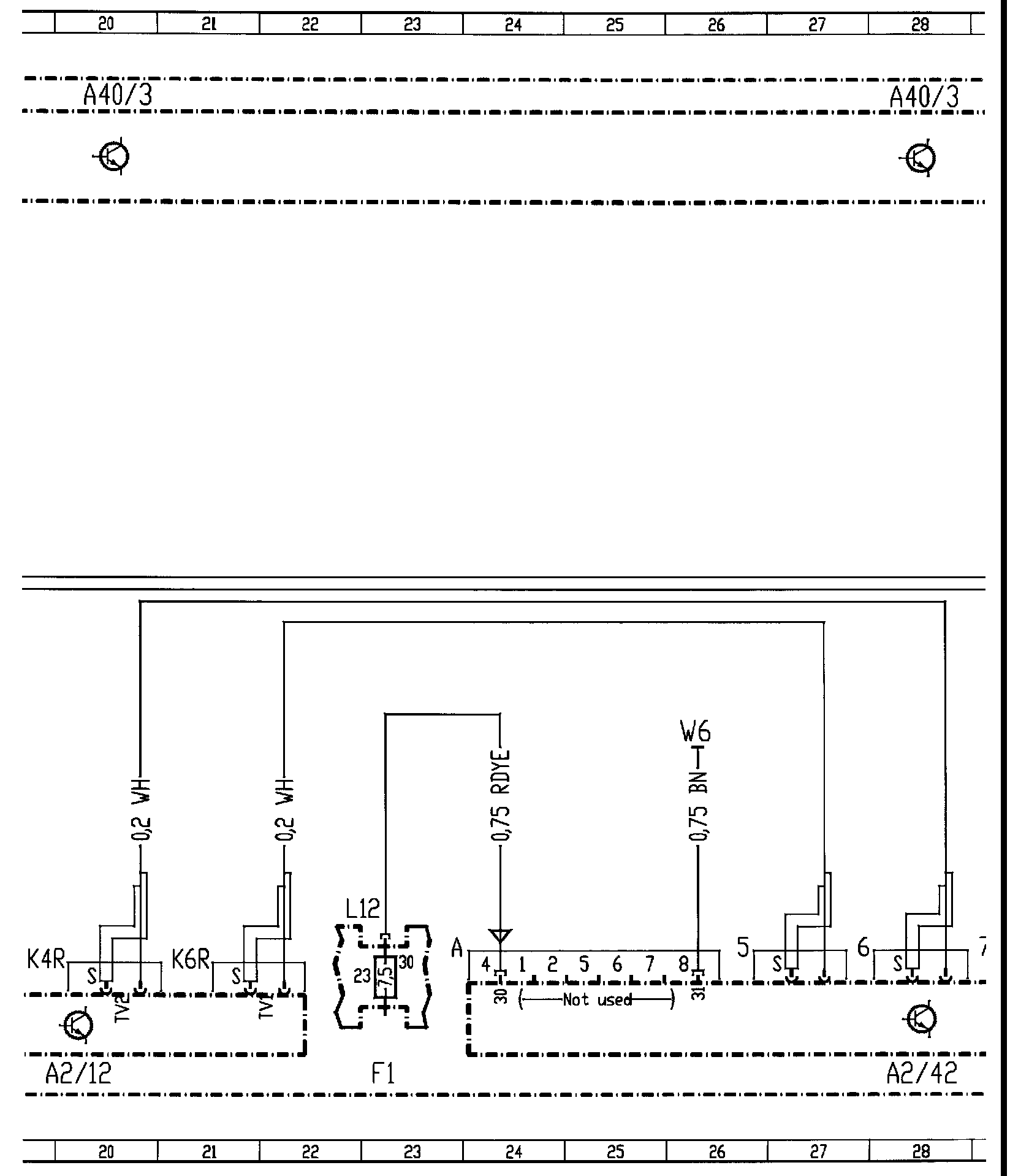

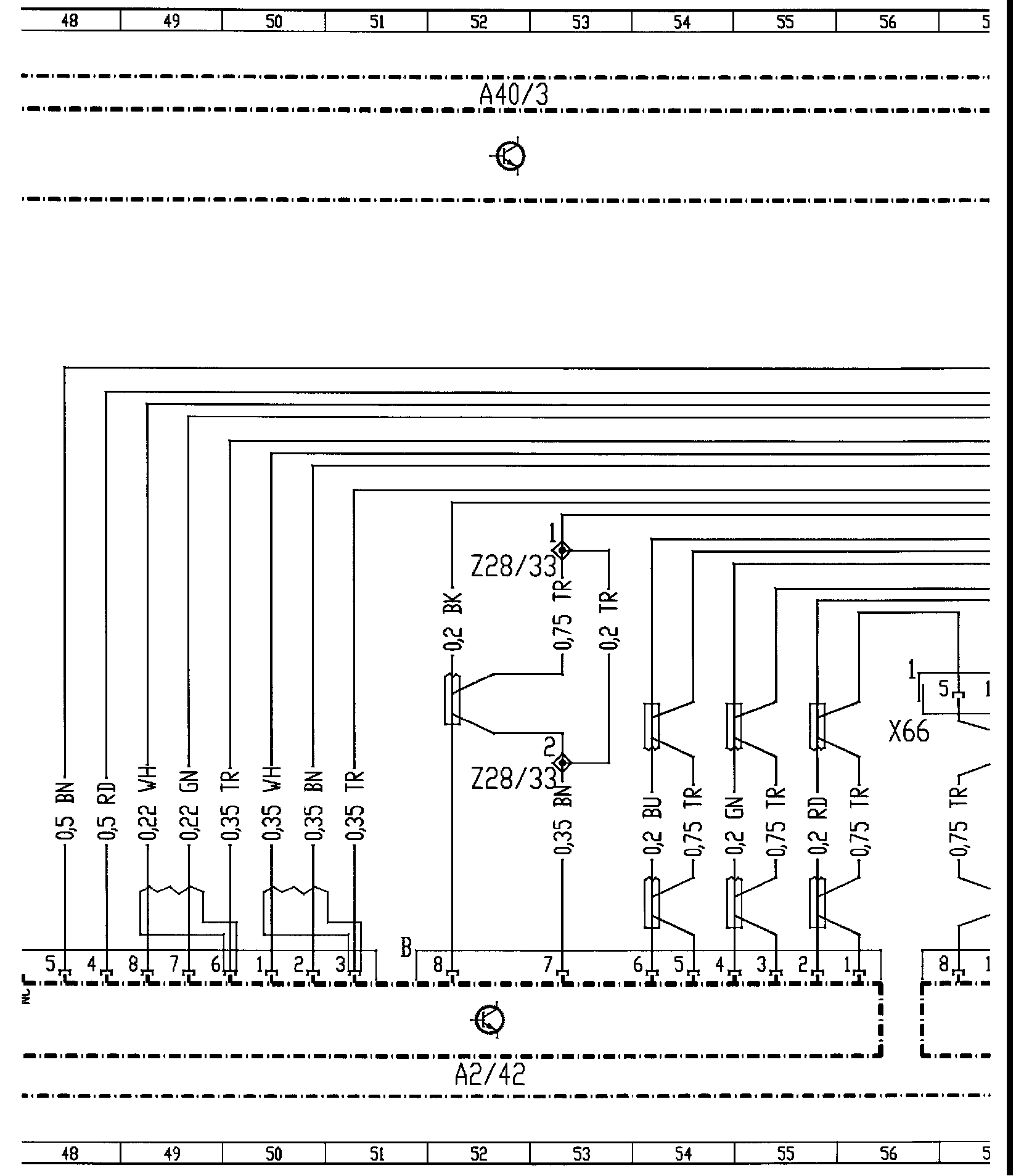

Cockpit Management And Data System (COMAND) Control Module:

Cockpit Management And Data System (COMAND) Control Module:

Cockpit Management And Data System (COMAND) Control Module:

Cockpit Management And Data System (COMAND) Control Module:

Cockpit Management And Data System (COMAND) Control Module:

Cockpit Management And Data System (COMAND) Control Module:

Cockpit Management And Data System (COMAND) Control Module:

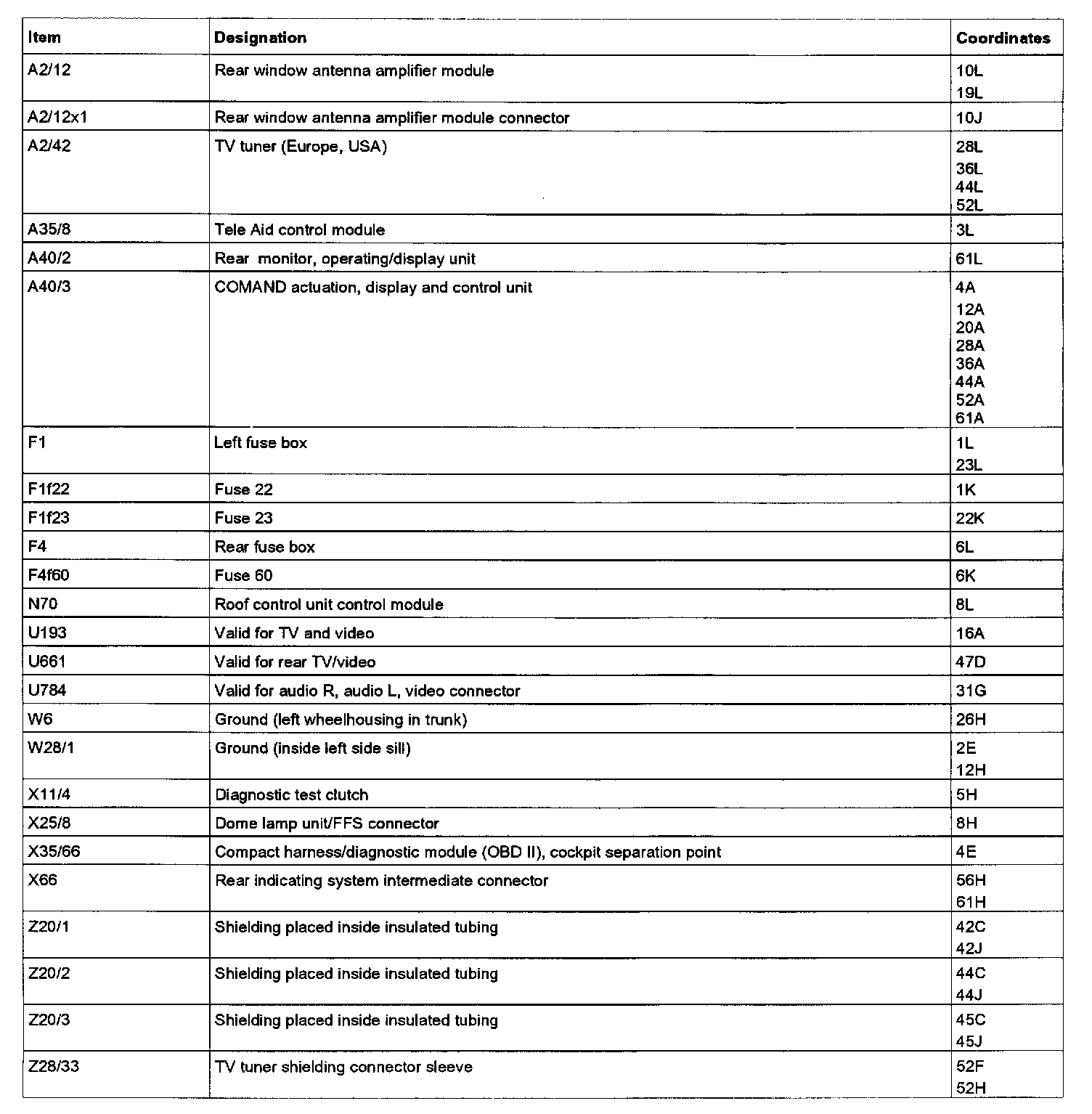

Legend For Cockpit Management And Data System (COMAND) Control Module:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
