B1.3 Interior Compartment (Cockpit)
B1.3 Interior Compartment (Cockpit)

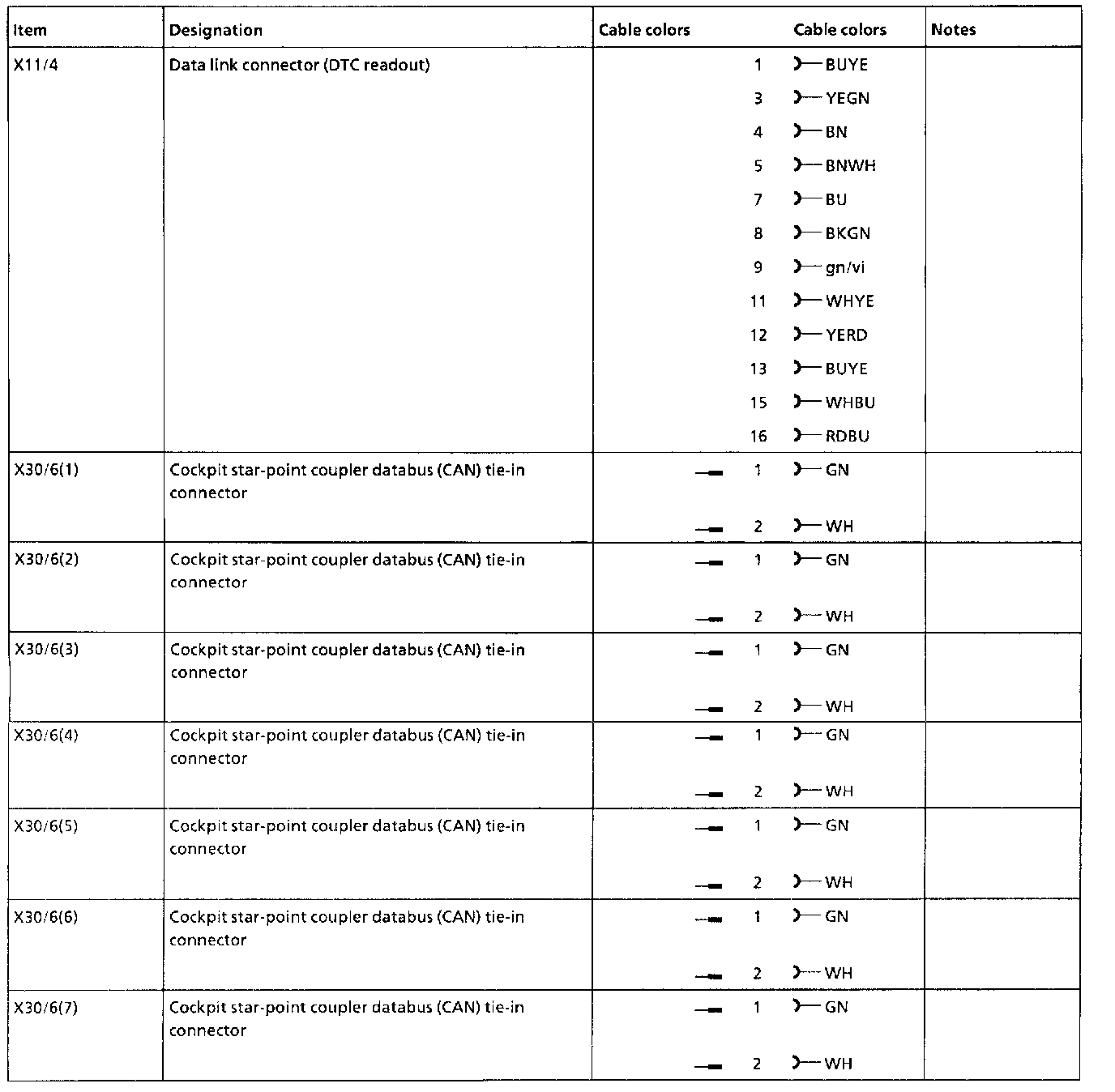

Arrangement and assignment of the wiring and plug connectors interior compartment (cockpit)
Connector ID
