GF09.41-P-3100M Charge Pressure Cooler, Location/Task/Design/Function

GF09.41-P-3100M Charge Pressure Cooler, Location/task/design/function
- ENGINE 275.950 in MODEL 215, 220
- ENGINE 275.951 in MODEL 230 up to Model Year 08 /AEJ 07
- ENGINE 275.953 in MODEL 216, 221 up to Model Year 08 /AEJ 07
- ENGINE 275.954 in MODEL 230 up to Model Year 08 /AEJ 07
- ENGINE 275.980 in MODEL 215, 220
- ENGINE 275.981 in MODEL 230 up to Model Year 08 /AEJ 07
- ENGINE 275.982 in MODEL 216, 221 up to Model Year 08 /AEJ 07
- ENGINE 285.950 in MODEL 240
- ENGINE 285.980 in MODEL 240

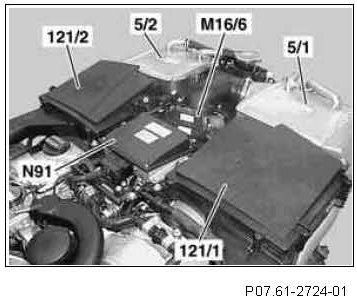

5/1 Charge air cooler, left cylinder bank
5/2 Charge air cooler, right cylinder bank
121/1 Air cleaner, left cylinder bank
121/2 Air cleaner, right cylinder bank
M16/6 Throttle valve actuator
N91 ECI ignition system power pack
