Electrical Diagrams

Starter, Generator PE15.00-U-2000SC

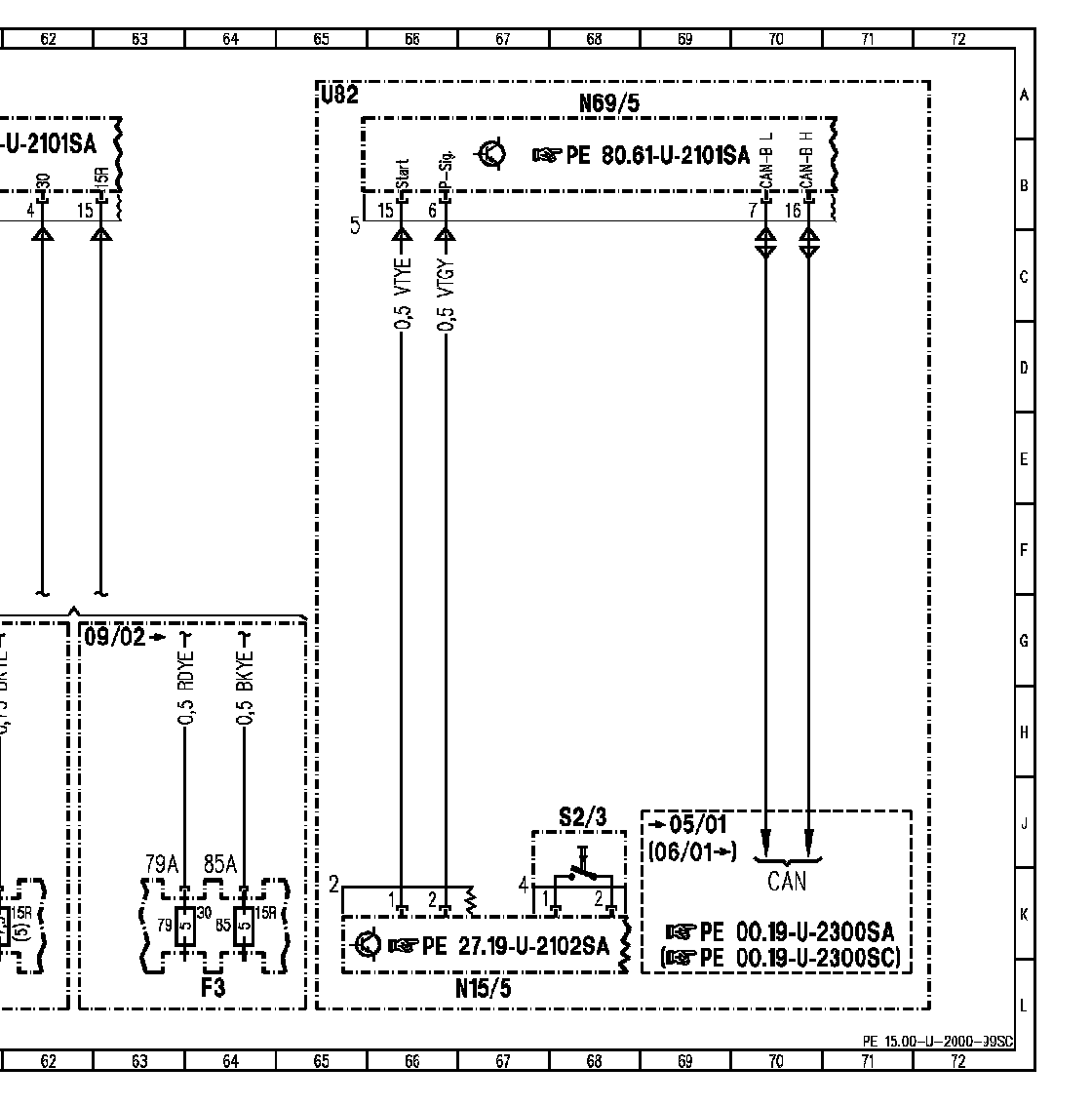

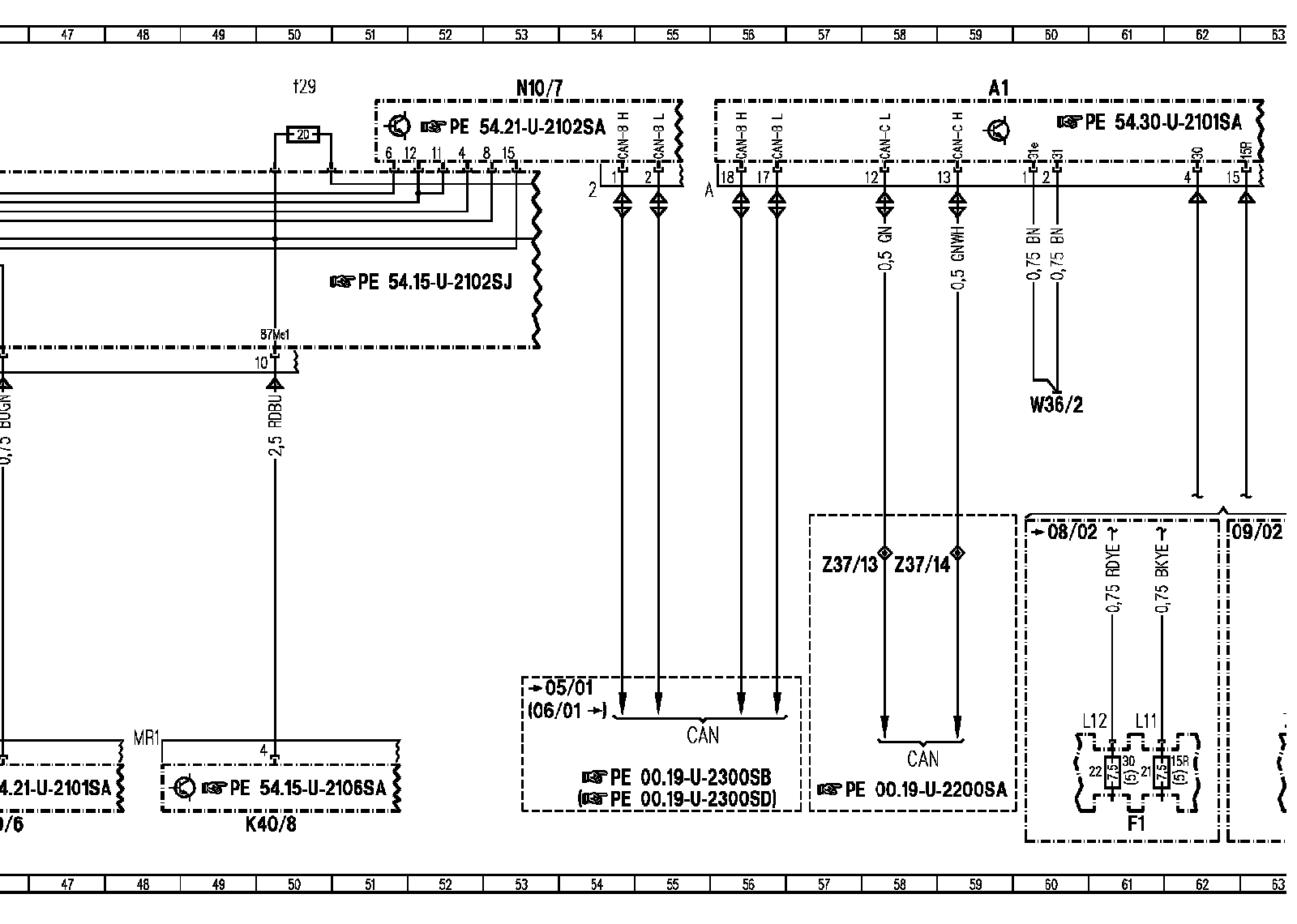

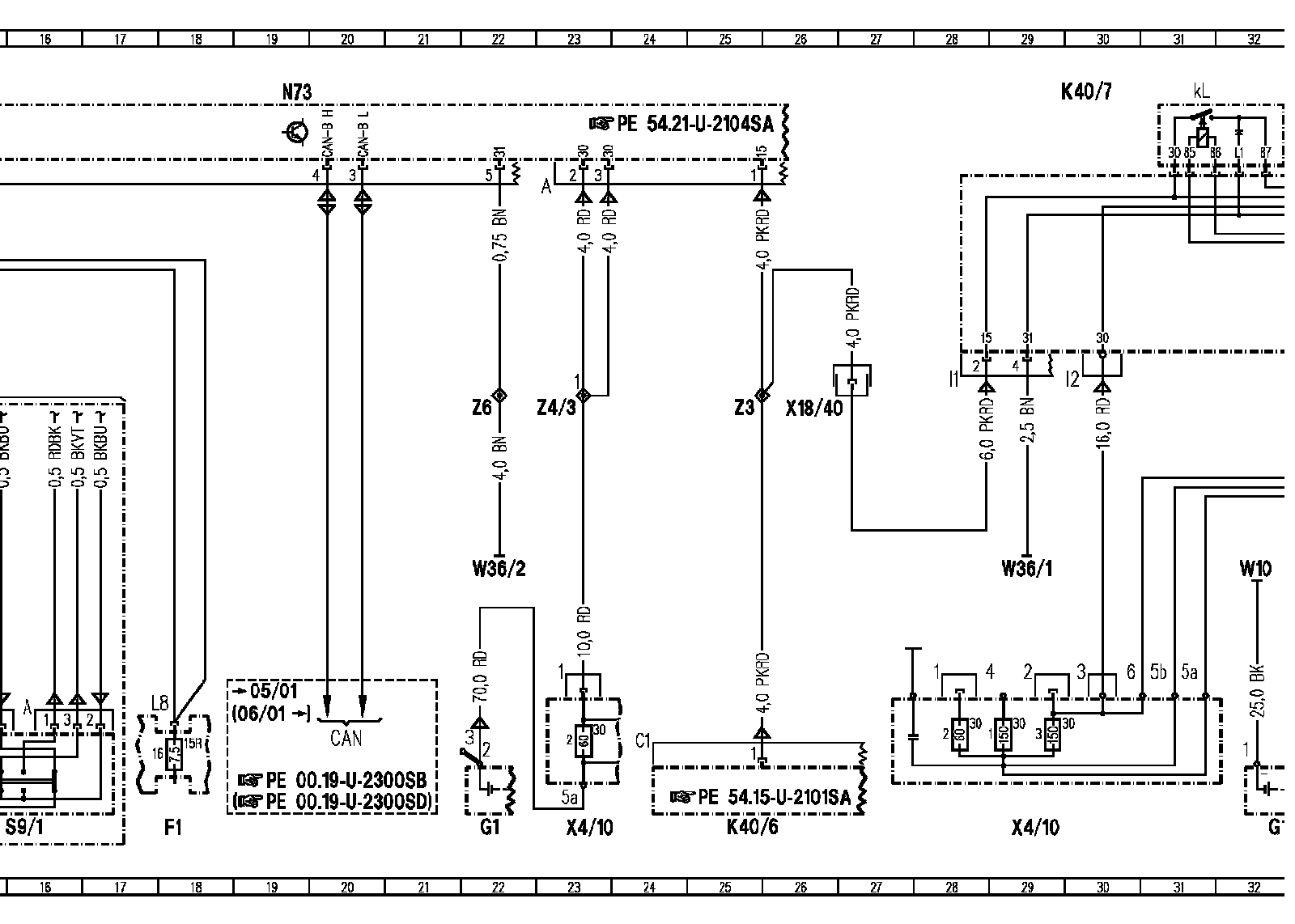

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

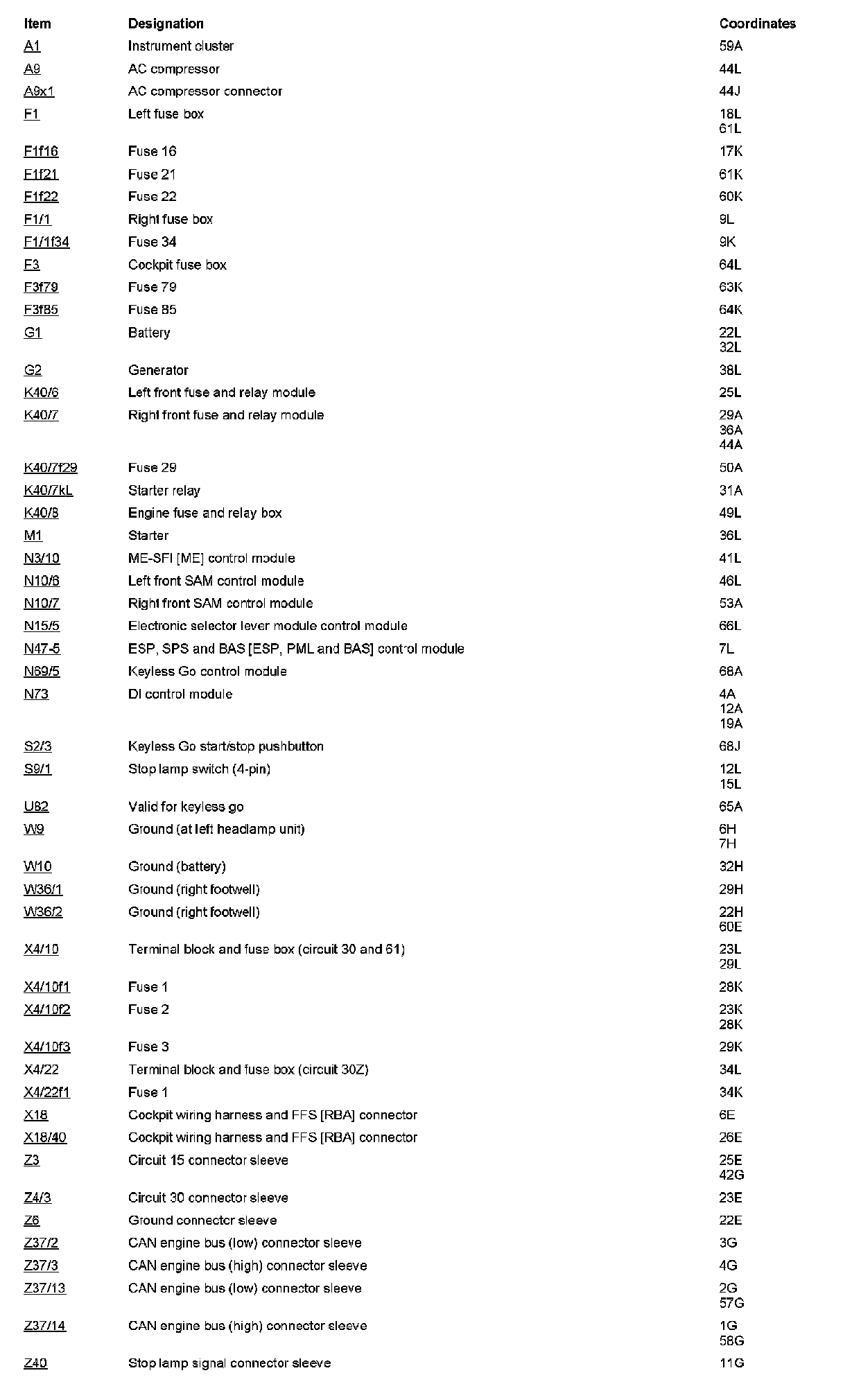

Component Description/Coordinates, A1 to Z40:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
