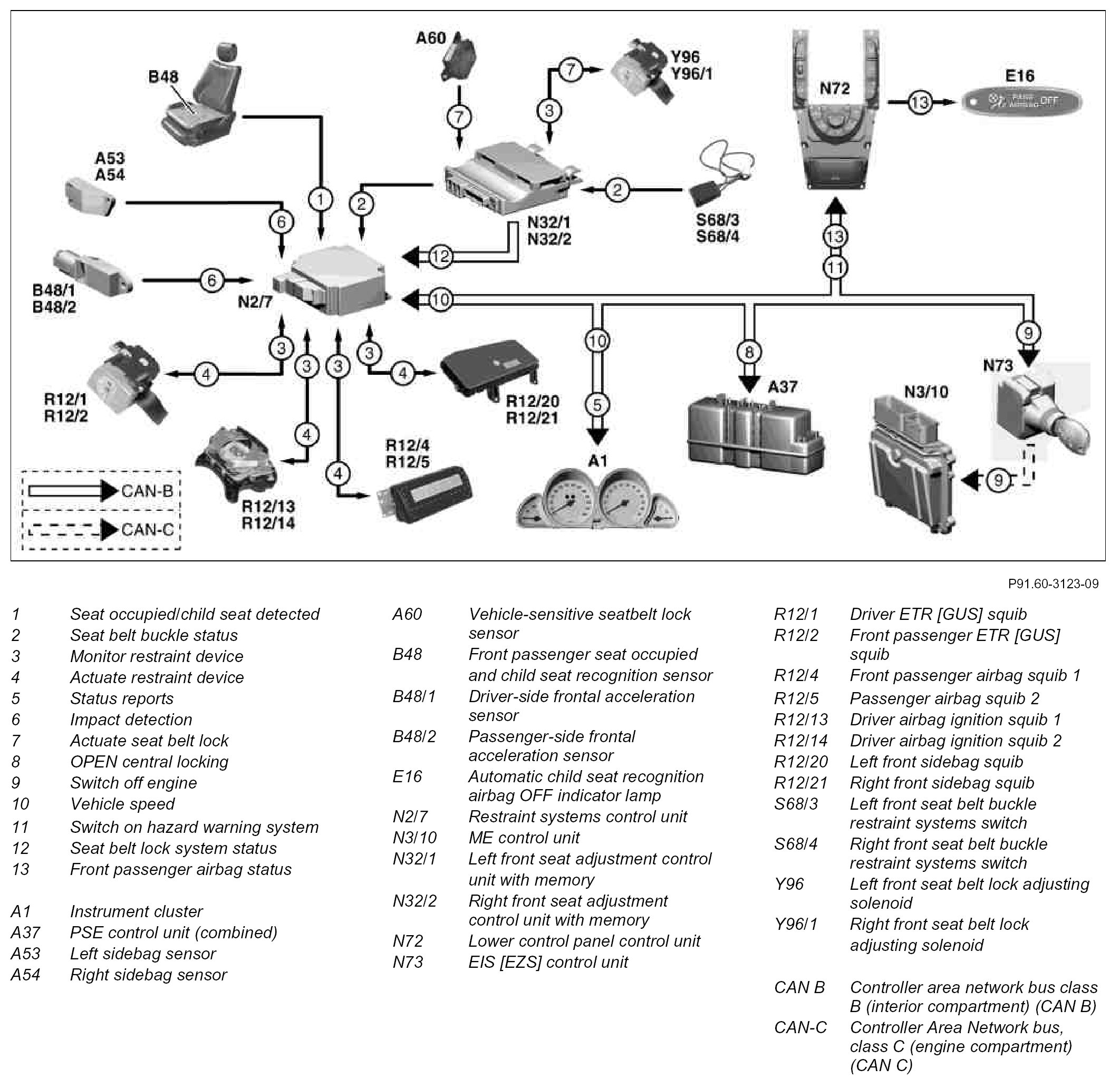

GF91.60-P-0002-02R Supplemental Restraint System (SRS), Component Networking



GF91.60-P-0002-02R Supplemental Restraint System (SRS), Component Networking
- except CODE (494) USA version

Component Identification:
