Brakes - SBC Hydraulic Unit Part Identification
Date: December 22, 2004Order No.: P-B-42.46/54
Supersedes:
Group: 42
SUBJECT:
Model 230.474/475/476/479
Model Years 2003 to 2005
Parts Identification for the SBC Hydraulic Unit
Note:
For Information Only
For the above models, use the following list as a guide when specifying a SBC hydraulic unit.
^ A005 431 71 12 is valid for vehicles with code 802 or 803, this replaces the following SBC hydraulic units:
> A004 431 43 12
> A004 431 98 12
> A005 431 68 12
^ A005 431 34 12 is valid for vehicles with code 804, this replaces the following SBC hydraulic units:
> A005 431 00 12
> A005 431 06 12
^ A005 431 73 12 is valid for vehicles with code 805, this replaces the following SBC hydraulic units:
> A005 431 51 12
Note:
For information pertaining to the model year code, please refer to the vehicle's VMI.

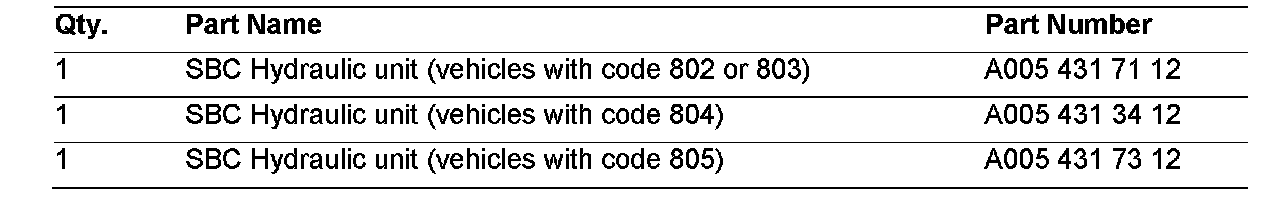

Parts Information
